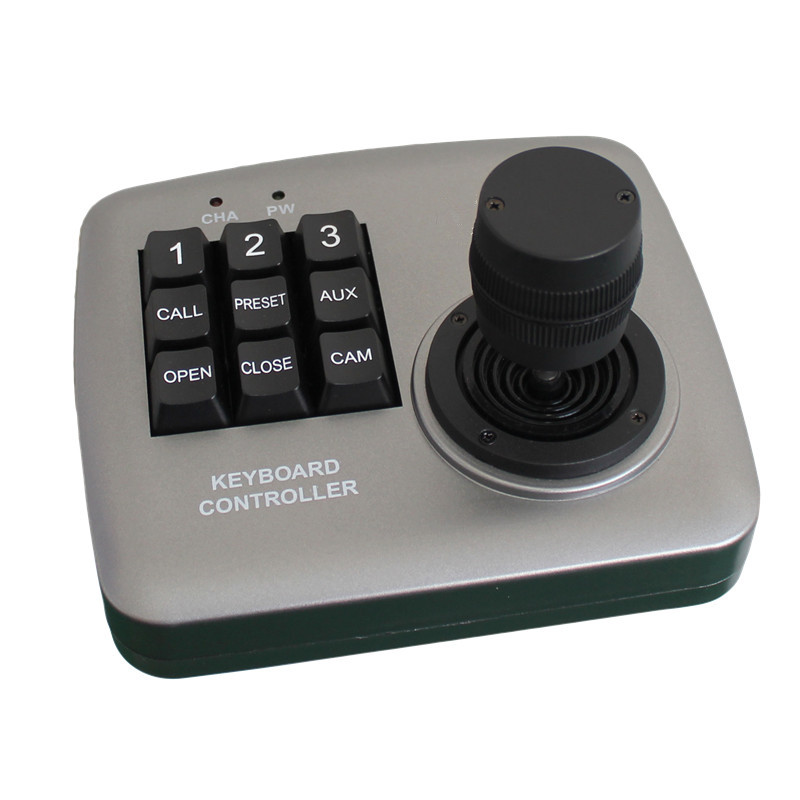

Vehicle PTZ Control Keyboard(SHJ-K021)

Vehicle PTZ Control Keyboard

Model: SHJ-K021

Features:

l Specifically for 110 command vehicles, urban patrol vehicles, military vehicles, escort vehicles and other vehicle video surveillance system designed

l The appearance of small and refined, suitable for hand or table operation

l Three-dimensional joystick operation, so fast and convenient operation

l The default is PELCO-D control protocol, communication baud rate 2400Bps, 4800Bps, 9600Bps, 19200Bps four baud rate

l Various control protocols can be customized according to customer requirements

l RS485Communication interface, transmission distance of up to 1200 meters

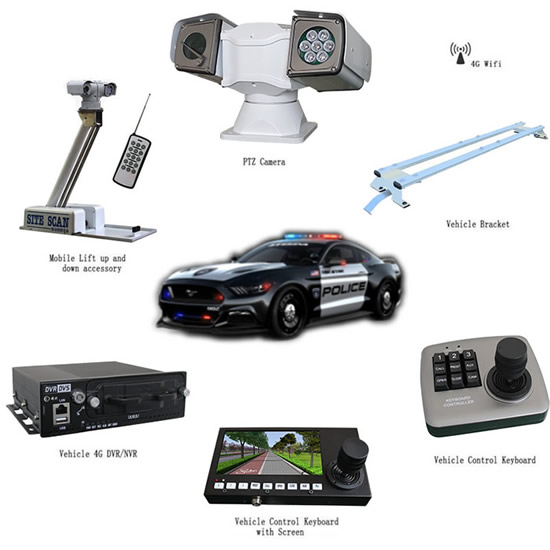

PS: Matching the whole system PTZ can be achieved a key operate PTZ camera main functions, a key wipers, a key cruise, a key line sweep and other functions, the operation is very simple

Application：All kinds of vehicle mobile monitoring vehicles, public security law administrative, military vehicles, passenger vehicles, freight vehicles, etc.

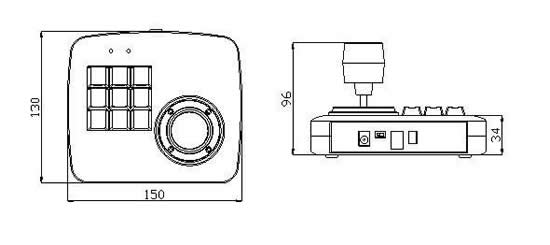

Measures and Diagram: (mm)
