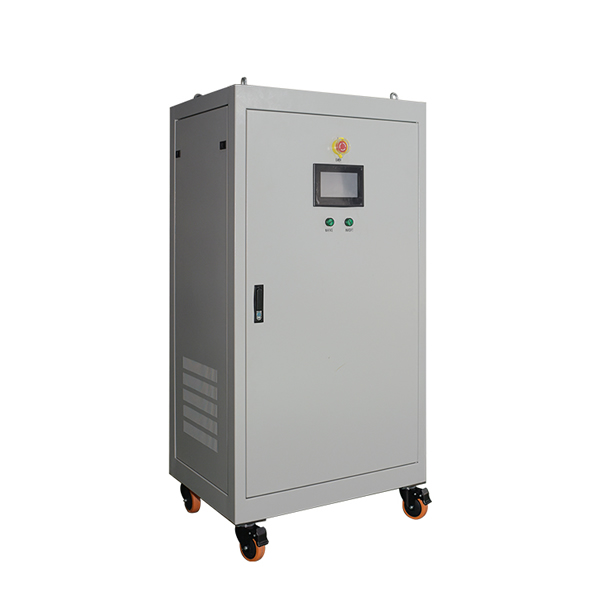

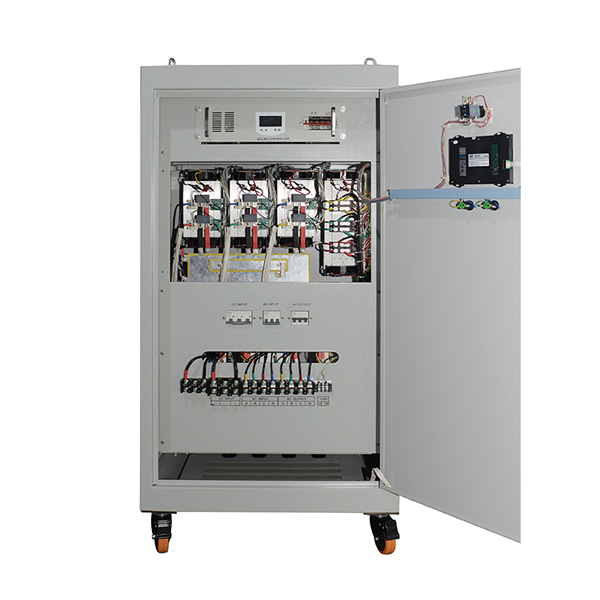

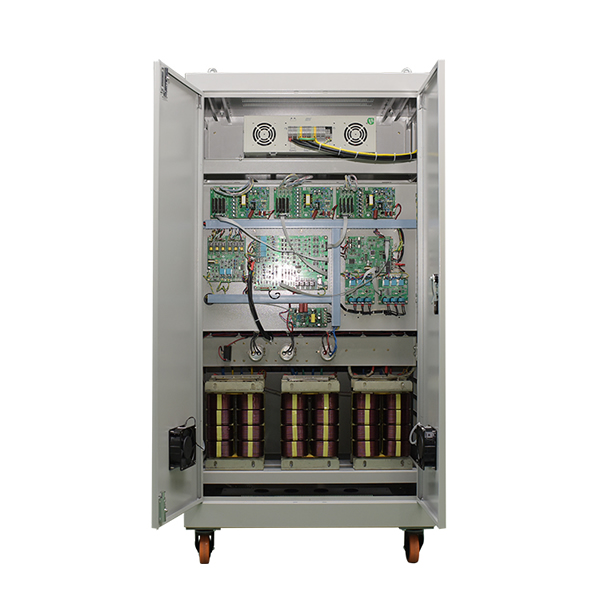

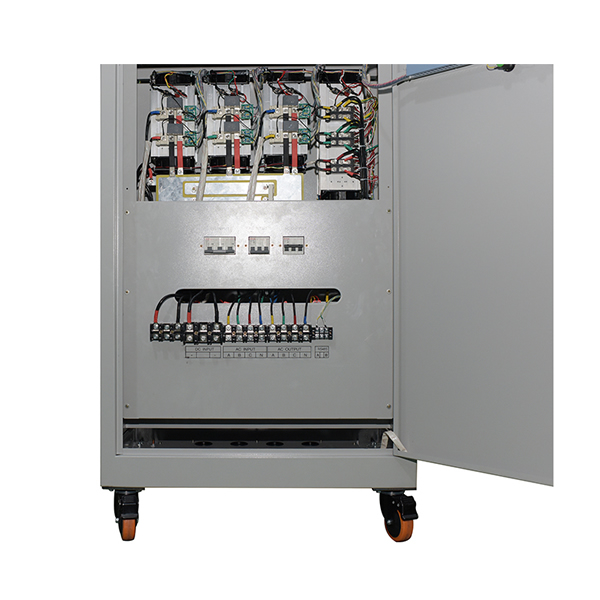

On-Grid Wind Turbine Controller Inverter Integrated

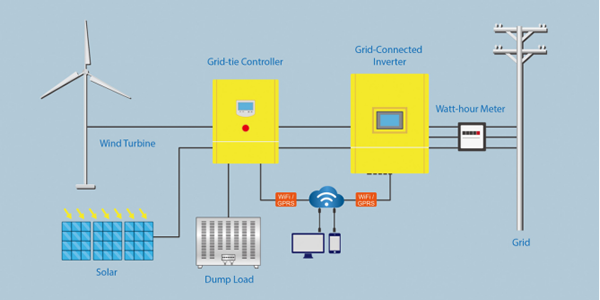

Product advantages：
◆ Using IGBT from Mitsubishi company as the power components
◆ Using American ATEMEL company microprocessor as figure controller
◆ Perfect protection and warning functions
◆ Wind turbine MPPT technology， real-time tracing wind turbine max. output power
◆ Disturbance detection technology, anti-island control
◆ Circuit frame compact, Max. Efficiency≥94%
◆ Outdoor stainless steel shell, fully sealed installation
◆ Input voltage within the broad, the maximum reach 1150VDC
◆ With RS485/RS232, Ethernet, GPRS (optional) interfaces, remote data collection and surveillance
◆ Pure sine wave output, automatic synchronization grid connected, non-polluting to the power grid, no impact
◆ Inverting current close-cycle control, power to control and adjustable
◆ Big-screen English LCD, perfect display, interface-friendly
3KW-5KW
On grid wind turbine controller | SHJ-3K220 | SHJ-5K220 | ||||
Wind turbine input | ||||||
Power | 3KW | 5KW | ||||
Max. Control power / current | 6KW/20A | 10KW/34A | ||||
Rated voltage of wind turbine (AC) | 220V | 220V | ||||
Input voltage range | AC | 0-330V | 0-330V | |||
DC | 0-450V | 0-450V | ||||
Braking voltage (DC) | Default | 350V±1% | 350V±1% | |||
Set range | 320-350V | 320-350V | ||||
Braking current (DC) | Default | 15A | 25A | |||
Set range | 0-15A | 0-25A | ||||
Braking time | Default | 10-20 min | ||||
Set range | 0-5000 min | |||||
* Generator overspeed control | Default | >300 rpm/min | ||||
Set range | 0-1000 rpm/min | |||||
* Over wind speed control | Default | 14 m/s | ||||
Set range | 0-45 m/s | |||||
Manual control | Manual brake，*remote control brake (with communication function) | |||||
Automatic control function | Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake | |||||
* PV. Input | ||||||
Rated power (increased) | 3KWp | 3KWp | ||||
Working voltage (DC) | 320V / 400V | 320V / 400V | ||||
DC output parameters | ||||||
Output voltage range (DC) | 0-350V | 0-350V | ||||
Constant voltage (DC) | Default | 310V±1% | 310V±1% | |||
Set range | 300-330V | 300-330V | ||||
Constant current (DC) | Default | 12A | 20A | |||
Set range | 0-12A | 0-20A | ||||
On grid wind turbine inverter | SHJ-3KTL | SHJ-5KTL | ||||
Rated output power (AC) | 3KW | 5KW | ||||
Max. Output power (AC) | 3.3KW | 5.5KW | ||||
Input voltage rang (DC) | 0-450V | 0-450V | ||||
MPPT Voltage range (DC) | 100V-400V | 100V-400V | ||||
Max. Input current (DC) | 11.2A | 18.7A | ||||
Rated current | 10.2A | 17A | ||||
THD Current harmonic | <3%（at rated power) | |||||
Power factor | ＞0.99 | |||||
Max. efficiency | 98% | |||||
Allowable grid voltage range (AC) | 110V/120V/220V (Single-phase)±20% | |||||
Allowable grid frequency range | 50Hz/60Hz±10% | |||||
Automatic operation conditions | DC input and power grid meet the requirements, the inverter operates automatically | |||||
Restart time after power failure | 2min(Adjustable) | |||||
General parameters | ||||||
Function | Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting | |||||
Automatic protection | Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection,LVRT、overheat protection, overload protection, ground fault protection, etc | |||||
Display | Touch screen, LCD | |||||
Monitoring content | Wind turbine voltage , current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed | |||||
Protection level | IP20（Indoor）IP65 (Outdoors) | |||||
Telematics | RS485/USB/GPRS/WIFI/Ethernet (optional) | |||||
Environment | Operating amb. Temp. & Hum -30-60°C，＜90% no condensation | |||||
Noise (1m) | ＜40dB | |||||
Refrigeration mode | Forced air cooling | |||||
Controller size / weight | 360*230*480mm 17kg | 360*230*480mm 18kg | ||||
Dump load size / weight | 400*400*250mm 12kg | 600*450*380mm 28kg | ||||
Inverter size / weight | 450*275*770mm 39kg | 450*275*770mm 44kg | ||||
*Above parameter only for reference. Could be custom made to user specifications.
3KW-5KW
On grid wind turbine controller | SHJ-3K380 | SHJ-5K380 | |||
Wind turbine input | |||||
Power | 3KW | 5KW | |||
Max. Control power / current | 6KW/12A | 10KW/20A | |||
Rated voltage of wind turbine (AC) | 380V | 380V | |||
Input voltage range | AC | 0-600V | 0-600V | ||
DC | 0-900V | 0-900V | |||
Braking voltage (DC) | Default | 550V±1% | 550V±1% | ||
Set range | 530-560V | 530-560V | |||
Braking current (DC) | Default | 9A | 15A | ||
Set range | 0-9A | 0-15A | |||
Braking time | Default | 10-20 min | |||
Set range | 0-5000min | ||||
* Generator overspeed control | Default | >300 rpm/min | |||
Set range | 0-1000 rpm/min | ||||
* Over wind speed control | Default | 14 m/s | |||
Set range | 0-45 m/s | ||||
Manual control | Manual brake, *remote control brake (with communication function) | ||||
Automatic control function | Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake | ||||
* PV. Input | |||||
Rated power (increased) | 3KWp | 5KWp | |||
Working voltage (DC) | 550V / 660V | 550V / 660V | |||
DC output parameters | |||||
Output voltage range (DC) | 0-550V | 0-550V | |||
Constant voltage (DC) | 520V±1% | 520V±1% | 520V±1% | ||
510-540V | 510-540V | 510-540V | |||
Constant current (DC) | Default | 7.5A | 12A | ||
Set range | 0-7.5A | 0-12A | |||
On grid wind turbine inverter | SHJ-3KTL | SHJ-5KTL | |||
Rated output power (AC) | 3KW | 5KW | |||
Max. Output power (AC) | 3.3KW | 5.5KW | |||
Input voltage rang (DC) | 0-800V | 0-800V | |||
MPPT Voltage range (DC) | 150V-700V | 150V-700V | |||
Max. Input current (DC) | 6.8A | 11.2A | |||
Rated current | 6.2A | 10.2A | |||
THD Current harmonic | <3%（at rated power) | ||||
Power factor | ＞0.99 | ||||
Max. efficiency | 98% | ||||
Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | ||||
Allowable grid frequency range | 50Hz/60Hz±10% | ||||
Automatic operation conditions | DC input and power grid meet the requirements, and the inverter operates automatically | ||||
Restart time after power failure | 2min(Adjustable) | ||||
General parameters | |||||
Function | Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting | ||||
Automatic protection | Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection,LVRT、overheat protection, overload protection, ground fault protection, etc | ||||
Display | Touch screen, LCD | ||||
Monitoring content | Wind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed | ||||
Protection level | IP20（Indoor）IP65 (Outdoors) | ||||
Telematics | RS485/USB/GPRS/WIFI/Ethernet (optional) | ||||
Environment | Operating amb. Temp. & Hum -30-60°C，＜90% no condensation | ||||
Noise (1m) | ＜40dB | ||||
Refrigeration mode | Forced air cooling | ||||
Controller size / weight | 360*230*480mm 17kg | 360*230*480mm 18kg | |||
Dump load size / weight | 400*400*250mm 12kg | 600*450*380mm 28kg | |||
Inverter size / weight | 550*225*770mm 49kg | 550*225*770mm 59kg | |||
*Above parameter only for reference. Could be custom made to user specifications.
10KW-30KW
On grid wind turbine controller | SHJ-10K380 | SHJ-20K380 | SHJ-30K380 | |||
Wind turbine input | ||||||
Power | 10KW | 20KW | 30KW | |||
Max. Control power / current | 20KW/40A | 40KW/80A | 60KW/120A | |||
Rated voltage of wind turbine (AC) | 380V/400V | 380V/400V | 380V/400V | |||
Input voltage range | AC | 0-600V | 0-600V | 0-600V | ||
DC | 0-900V | 0-900V | 0-900V | |||
Braking voltage (DC) | Default | 550V±1% | 550V±1% | 550V±1% | ||
Set range | 530-560V | 530-560V | 530-560V | |||
Braking current (DC) | Default | 30A | 60A | 90A | ||
Set range | 0-30A | 0-60A | 0-90A | |||
Braking time | Default | 10-20 min | ||||
Set range | 0-5000 min | |||||
* Generator overspeed control | Default | >300 rpm/min | ||||
Set range | 0-1000 rpm/min | |||||
* Over wind speed control | Default | 14 m/s | ||||
Set range | 0-45 m/s | |||||
Manual control | Manual brake, *remote control brake (with communication function) | |||||
Automatic control function | Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake | |||||
* PV. Input | ||||||
Rated power (increased) | 5KWp | 5KWp | 5KWp | |||
Working voltage (DC) | 550V / 660V | 550V / 660V | 550V / 660V | |||
DC output parameters | ||||||
Output voltage range (DC) | 0-550V | 0-550V | 0-550V | |||
Constant voltage (DC) | Default | 520V±1% | 520V±1% | 520V±1% | ||
Set range | 510-540V | 510-540V | 510-540V | |||
Constant current (DC) | Default | 24A | 48A | 72A | ||
Set range | 0-24A | 0-48A | 0-72A | |||
On grid wind turbine inverter | SHJ-10KTL | SHJ-20KTL | SHJ-30KTL | |||
Rated output power (AC) | 10KW | 20KW | 30KW | |||
Max. Output power (AC) | 11KW | 22KW | 33KW | |||
Input voltage rang (DC) | 0-800V | 0-800V | 0-800V | |||
MPPT Voltage range (DC)(DC) | 150V-700V | 150V-700V | 150V-700V | |||
Max. Input current (DC) | 2.4A | 44.9A | 67.3A | |||
Rated current | 20.4A | 40.8A | 61.2A | |||
THD Current harmonic | <3%（at rated power) | |||||
Power factor | ＞0.99 | |||||
Max. efficiency | 98% | |||||
Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | |||||
Allowable grid frequency range | 50Hz/60Hz±10% | |||||
Automatic operation conditions | DC input and power grid meet the requirements, and the inverter operates automatically | |||||
Restart time after power failure | 2min(Adjustable) | |||||
General parameters | ||||||
Function | Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting | |||||
Automatic protection | Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT、overheat protection, overload protection, ground fault protection, etc | |||||
Display | Touch screen, LCD | |||||
Monitoring content | Wind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed | |||||
Protection level | IP20（Indoor）IP65 (Outdoors) | |||||
Telematics | RS485/USB/GPRS/WIFI/Ethernet (optional) | |||||
Environment | Operating amb. Temp. & Hum -30-60°C，＜90% no condensation | |||||
Noise (1m) | ＜40dB | |||||
Refrigeration mode | Forced air cooling | |||||
Controller size / weight | 400*230*550mm 23kg | 500*230*620mm 35kg | 500*230*620mm 38kg | |||
Dump load size / weight | 690*450*530mm 36kg | 980*880*540mm 70kg | 980*880*540mm 70kg | |||
Inverter size / weight | 690*275*770mm 42kg | 690*275*770mm 58kg | 690*275*770mm 65kg | |||
*Above parameter only for reference. Could be custom made to user specifications.
50KW-200KW
On grid wind turbine controller | SHJ-50K380 | SHJ-100K380 | SHJ-200K380 | ||||
Wind turbine input | |||||||
Power | 50KW | 100KW | 200KW | ||||
Max. Control power / current | 100KW/200A | 200KW/400A | 400KW/800A | ||||
Rated voltage of wind turbine (AC) | 380V/400V | 380V/400V | 380V/400V | ||||
Input voltage range | AC | 0-600V | 0-600V | 0-600V | |||
DC | 0-900V | 0-900V | 0-900V | ||||
Braking voltage (DC) | Default | 550V±1% | 550V±1% | 550V±1% | |||
Set range | 530-560V | 530-560V | 530-560V | ||||
Braking current (DC) | Default | 150A | 300A | 600A | |||
Set range | 0-150A | 0-300A | 0-600A | ||||
Braking time | Default | 10-20 min | |||||
Set range | 0-5000 min | ||||||
* Generator overspeed control | Default | >300 rpm/min | |||||
Set range | 0-1000 rpm/min | ||||||
* Over wind speed control | Default | 14 m/s | |||||
Set range | 0-45 m/s | ||||||
Manual control | Manual brake , *remote control brake (with communication function) | ||||||
Automatic control function | Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake | ||||||
DC output parameters | |||||||
Output voltage range (DC) | 0-550V | 0-550V | 0-550V | ||||
Constant voltage (DC) | Default | 520V±1% | 520V±1% | 520V±1% | |||
Set range | 510-540V | 510-540V | 510-540V | ||||
Constant current (DC) | Default | 120A | 240A | 480A | |||
Set range | 0-120A | 0-240A | 0-480A | ||||
On grid wind turbine inverter | SHJ-50K | SHJ-100K | SHJ-200K | ||||
Rated output power (AC) | 50KW | 100KW | 200KW | ||||
Max. Output power (AC) | 55KW | 110KW | 220KW | ||||
Input voltage rang (DC) | 0-800V | 0-800V | 0-800V | ||||
MPPT Voltage range (DC)(DC) | 150V-700V | 150V-700V | 150V-700V | ||||
Max. Input current (DC) | 114.6A | 229A | 458.3A | ||||
Rated current | 104A | 208A | 416.7A | ||||
THD Current harmonic | <3%（at rated power) | ||||||
Power factor | ＞0.99 | ||||||
Max. efficiency | 96% | ||||||
Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | ||||||
Allowable grid frequency range | 50Hz/60Hz±10% | ||||||
Automatic operation conditions | DC input and power grid meet the requirements, and the inverter operates automatically | ||||||
Restart time after power failure | 2min(Adjustable) | ||||||
General parameters | |||||||
Function | Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting | ||||||
Automatic protection | Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT、overheat protection, overload protection, ground fault protection, etc | ||||||
Display | Touch screen, LCD | ||||||
Monitoring content | Wind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed | ||||||
Protection level | IP20（Indoor）IP65 (Outdoors) | ||||||
Telematics | RS485/USB/GPRS/WIFI/Ethernet (optional) | ||||||
Environment | Operating amb. Temp. & Hum -30-60°C，＜90% no condensation | ||||||
Noise (1m) | ＜40dB | ||||||
Refrigeration mode | Forced air cooling | ||||||
Controller size / weight | 500*500*900mm 56kg | 600*500*1200mm 107kg | 950*550*1700mm 150kg | ||||
Dump load size / weight | 920*770*380mm 80kg | 920*770*380mm*2 150kg | 923*739*510mm*4 280kg | ||||
Inverter size / weight | 750*600*1320mm 340kg | 1460*860*1820mm 1.4t | 1460*860*1820mm 1.6t | ||||
*Above parameter only for reference. Could be custom made to user specifications.
300KW-500KW
On grid wind turbine controller | SHJ-300K440 | SHJ-500K440 | ||||
Wind turbine input | ||||||
Power | 300KW | 500KW | ||||
Max. Control power / current | 450KW/750A | 750KW/1250A | ||||
Rated voltage of wind turbine (AC) | 380V/440V | 380V/440V | ||||
Input voltage range | AC | 0-700V | 0-700V | |||
DC | 0-1000V | 0-1000V | ||||
Braking voltage (DC) | Default | 650V±1% | 650V±1% | |||
Set range | 630-660V | 630-660V | ||||
Braking current (DC) | Default | 750A | 1250A | |||
Set range | 0-750A | 0-1250A | ||||
Braking time | Default | 10-20 min | ||||
Set range | 0-5000 min | |||||
* Generator overspeed control | Default | >300 rpm/min | ||||
Set range | 0-1000 rpm/min | |||||
* Over wind speed control | Default | 14 m/s | ||||
Set range | 0-45 m/s | |||||
Manual control | Manual brake, *remote control brake (with communication function) | |||||
Automatic control function | Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake | |||||
DC output parameters | ||||||
Output voltage range (DC) | 0-650V | 0-650V | ||||
Constant voltage (DC) | Default | 620V±1% | 620V±1% | |||
Set range | 610-640V | 610-640V | ||||
Constant current (DC) | Default | 600A | 1000A | |||
Set range | 0-600A | 0-1000A | ||||
On grid wind turbine inverter | SHJ-300K | SHJ-500K | ||||
Rated output power (AC) | 300KW | 500KW | ||||
Max. Output power (AC) | 330KW | 550KW | ||||
Input voltage rang (DC) | 0-800V | 0-800V | ||||
MPPT Voltage range (DC)(DC) | 150V-700V | 150V-700V | ||||
Max. Input current (DC) | 573A | 955A | ||||
Rated current | 520.8A | 868A | ||||
THD Current harmonic | <3%（at rated power) | |||||
Power factor | ＞0.99 | |||||
Max. efficiency | 96% | |||||
Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | |||||
Allowable grid frequency range | 50Hz/60Hz±10% | |||||
Automatic operation conditions | DC input and power grid meet the requirements, and the inverter operates automatically | |||||
Restart time after power failure | 2min(Adjustable) | |||||
General parameters | ||||||
Function | Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting | |||||
Automatic protection | Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT、overheat protection, overload protection, ground fault protection, etc | |||||
Display | Touch screen, LCD | |||||
Monitoring content | Wind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed | |||||
Protection level | IP20（Indoor）IP65 (Outdoors) | |||||
Telematics | RS485/USB/GPRS/WIFI/Ethernet (optional) | |||||
Environment | Operating amb. Temp. & Hum -30-60°C，＜90% no condensation | |||||
Noise (1m) | ＜40dB | |||||
Refrigeration mode | Forced air cooling | |||||
Inverter size / weight | 2010*1060*2100mm 1.8t | 2010*1200*2090mm 2.5t | ||||
*Above parameter only for reference. Could be custom made to user specifications.
Contact: Leo Shen
Tel: 0086-0519-86509386
Email: sales@shj-electronic.com
WhatsApp: +86-13961402785
Skype: leoshen969
Wechat: leo88dn
Website: https://www.shj-electronic.com
