See through the fog, smoke, dust and other hazardous
atmospheres in total darkness

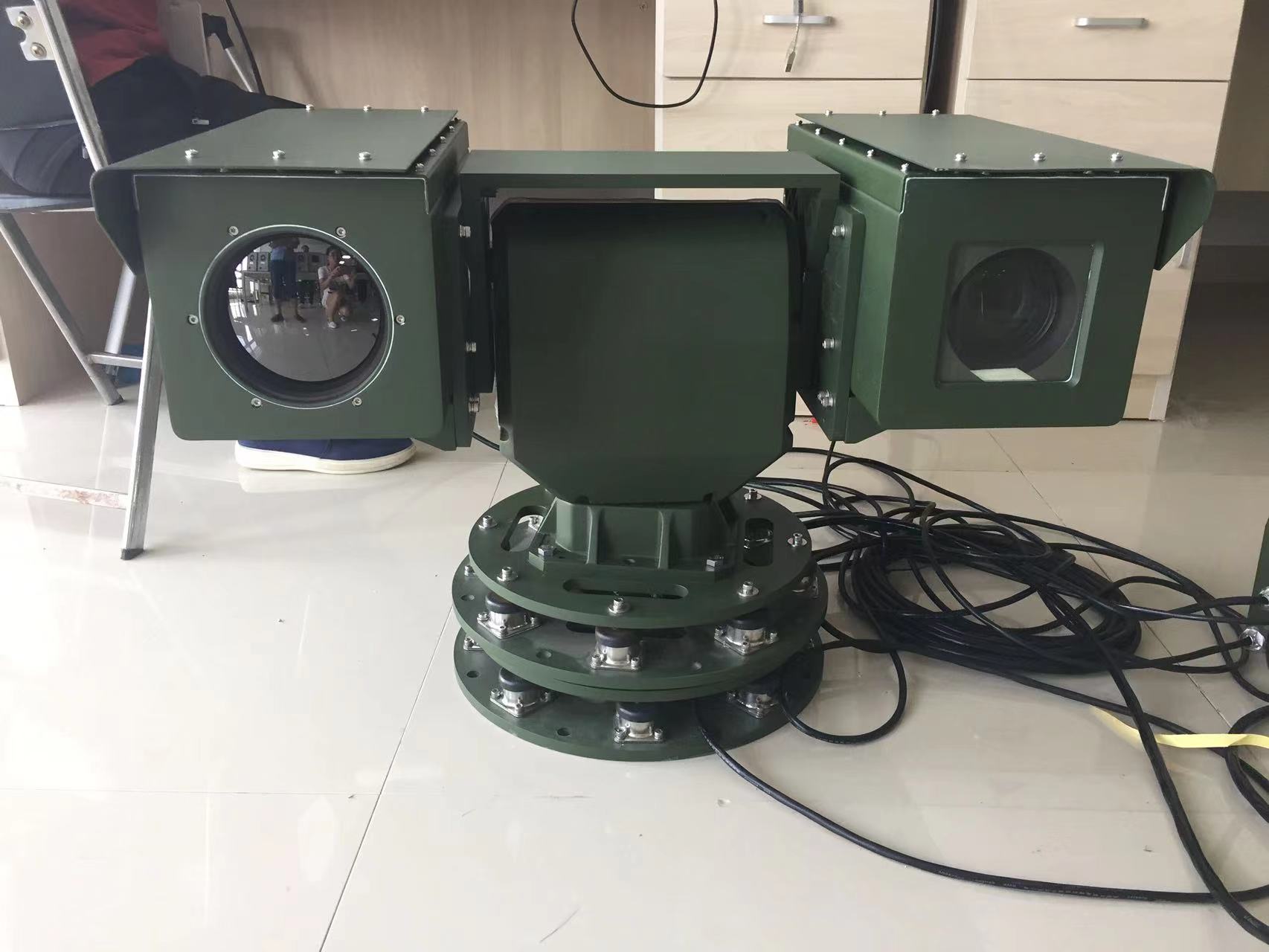

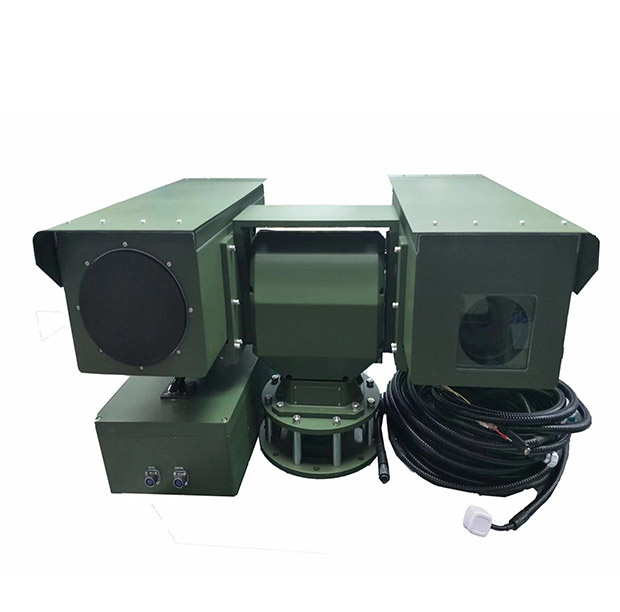

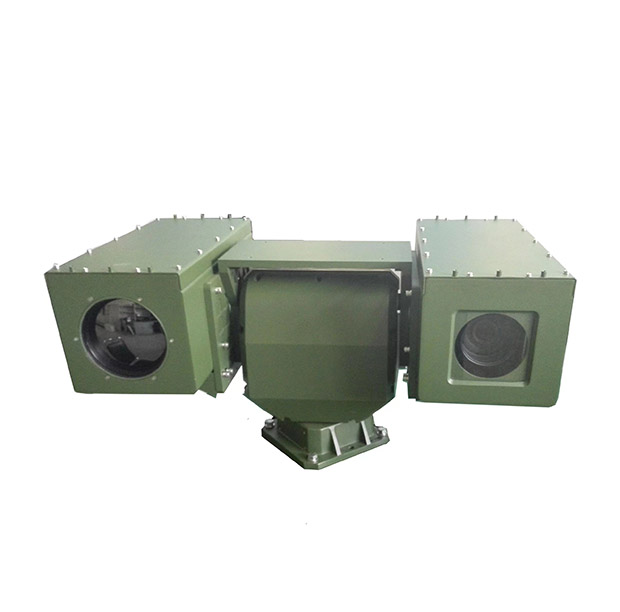

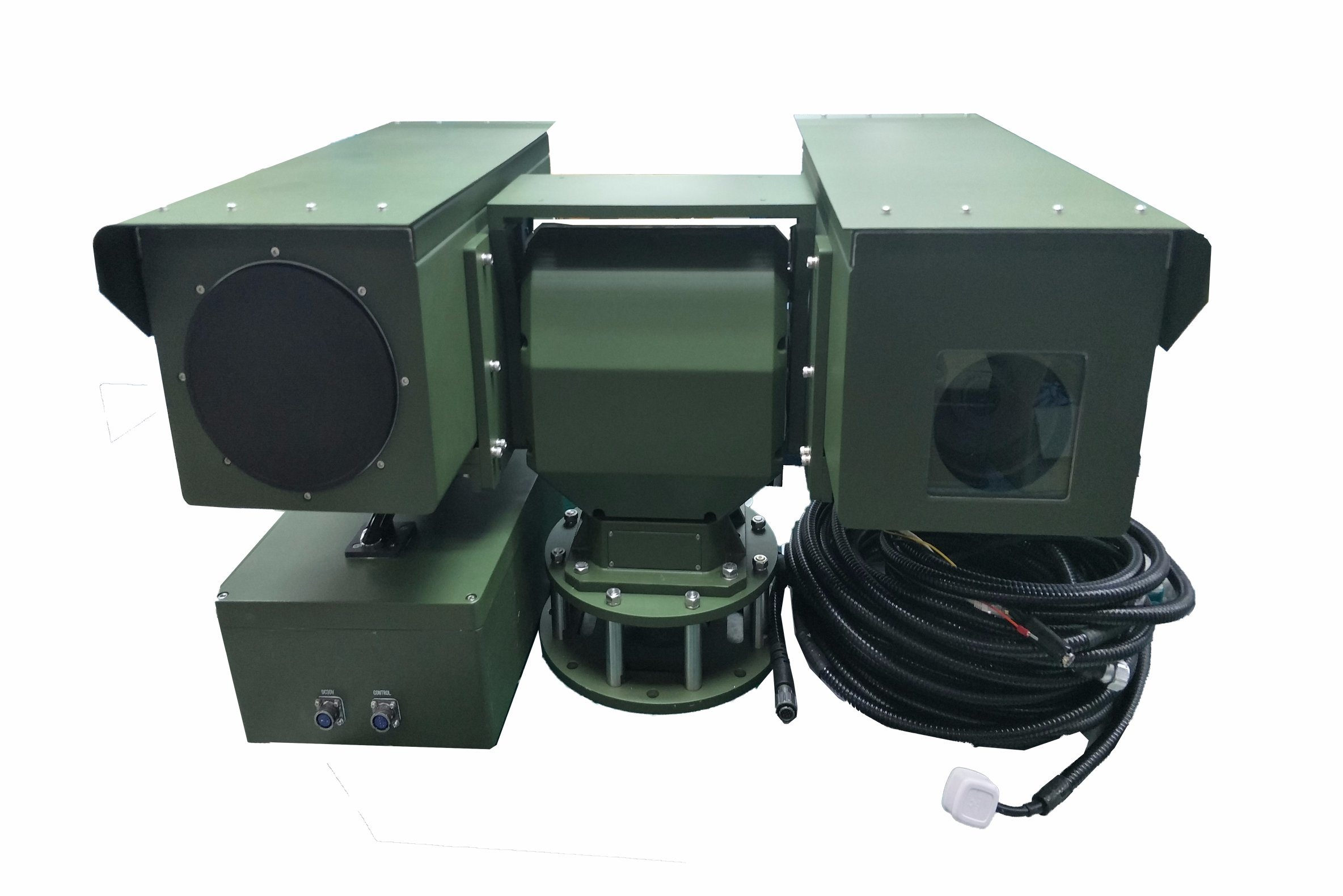

MODEL: SHJ-H3020AFHTIR312
Ⅰ. Introduction
Ø Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
Ø Infrared detector with high temp sensitivity, with min temp resolution of 50mK
Ø Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring
Ø Optional auto focusing function, realizing multiple focusing mode and triggering mode
Ø Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency
Ø 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability
Ø Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain
Main Use
Ø Frontier and coast defense, Military/Police, Border defense
Ø Oilfields, Railways, Airports, Harbors, Fireproofing, Large areas real-time monitoring

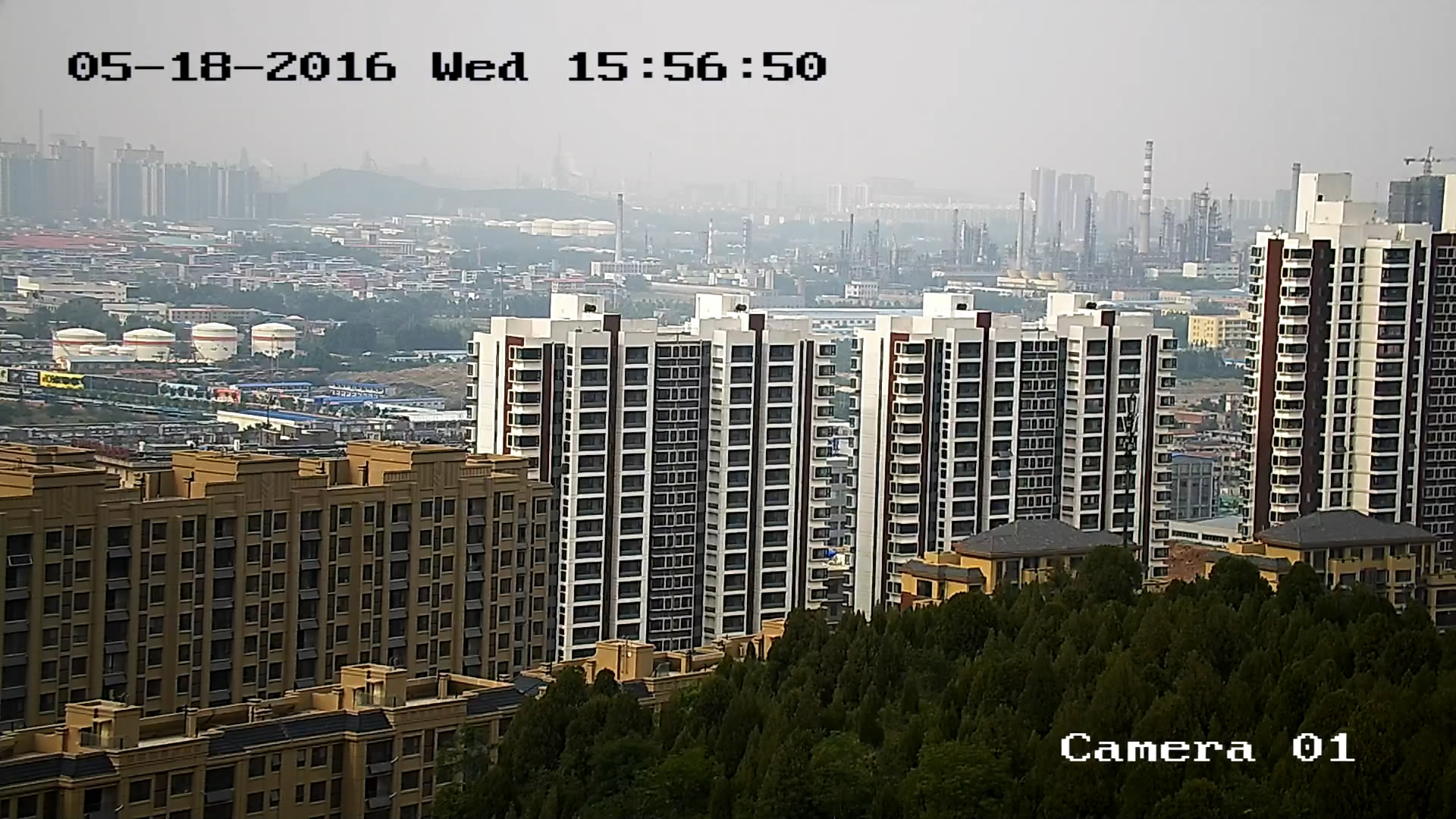

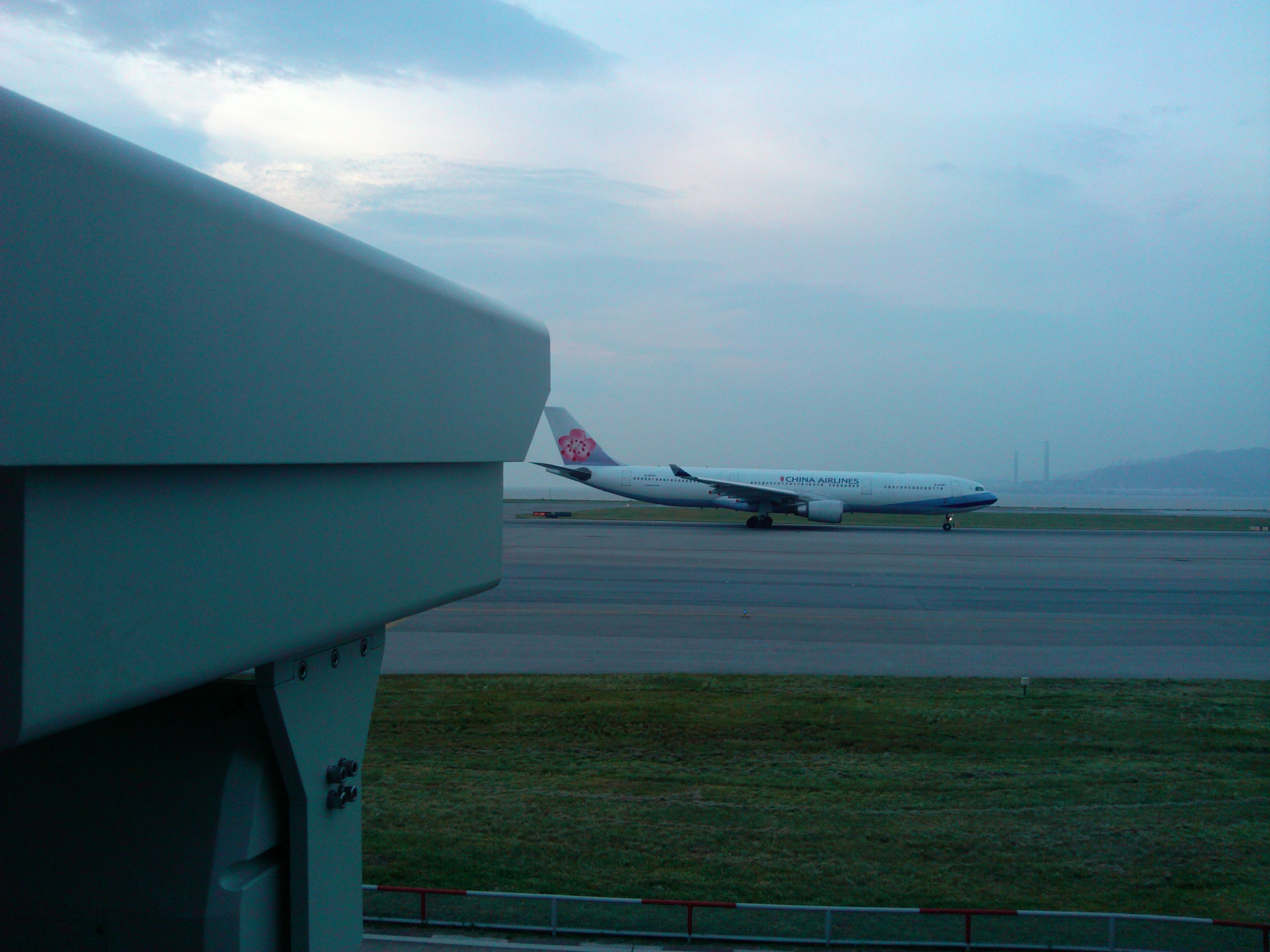

Effect demo
Technical Indicators
| Thermal camera | Target | Human(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
Detect | 8400m | 24000m | ||
Recognize | 2800m | 6000m | ||
Identify | 1400m | 3000m | ||
Visible camera | Recognize vehicle 10km | |||
Thermal camera | Detector type | Uncooled FPA detector | ||
Resolution | 640× 512 | |||
Spectrum | 8～14μm | |||
NETD | ≤50mK@F1.0, 300K | |||
Frame | 25Hz | |||
NUC | Auto/Manual/FFC | |||
Image process | DDE, pseudo color | |||
Focal length | 25~ 300mm, 12x optical zoom | |||
FOV | 2.1°× 1.7° ~ 24.6°× 19.8° | |||
Lens control | E zoom/focus, auto focus | |||
Image | DDE/pseudo color | |||
Visible Camera | Focal length | 12.5～750mm | ||
FOV | 0.5°～28.7° | |||
Auto focusing | Support | |||
Fog penetration | Support | |||
Sensor type | 1/1.8”Progressive Scan CMOS | |||
Coding mode | H.264/H.265/MJPEG | |||
Video resolution | 4MP, CIF, supporting five stream | |||
Video bit rate | 32Kbps～16Mbps | |||
Video frame rate | 1～25F/S(50Hz),1～30F/S(60Hz) | |||
Smart function | Optional | Auto tracking, fire alarm | ||
Pan-tilt | Carrying capacity | 50kg(top load) | ||
Angle | Horizontal 360°continuous rotation,pitching -60°~+20° | |||
Speed | Horizontal 0.01°～12°/s,pitching 0.01°～8°/s | |||
Preset bits | 255 bits,supporting lens zooming,focusing and preset bits | |||
Auto cruising | 8 paths,10 preset bits each path | |||
Interface | Power supply interface | AC24V | ||
Network interface | 1×10Base-T/100Base-TX,RJ45 | |||
Environment indicators | Operation Temperature | -25℃～+55℃ | ||
Storage Temperature | -40℃～+65℃ | |||
Protection grade | IP66 | |||
Vibration | 10～55Hz, 0.75mm | |||
Anti-impact | 150m/s2, 11ms | |||
Salt Fog Proof | Continuously spraying 48 hours under PH 6.5～7.2 | |||
Power | Whole power | AC24V±10%,equip with AC220V～AC24V/7.5A water proof power supply | ||
Power consumption | ≤180W | |||
Installation method | Vehicle mounted | |||
