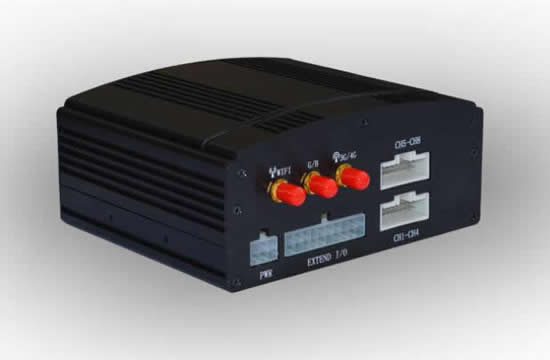

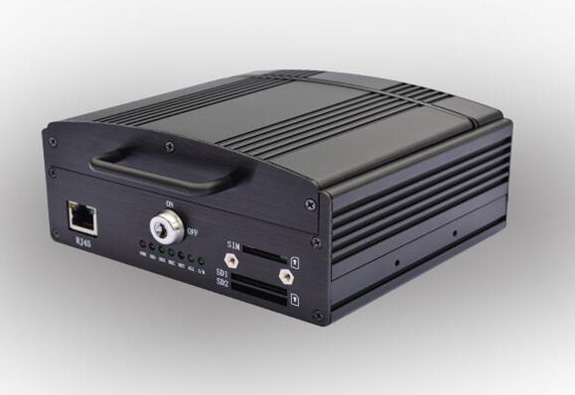

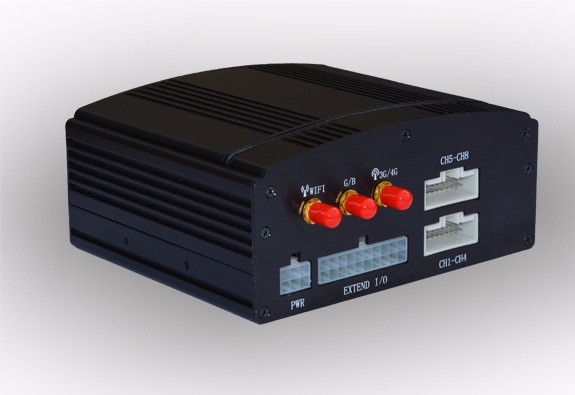

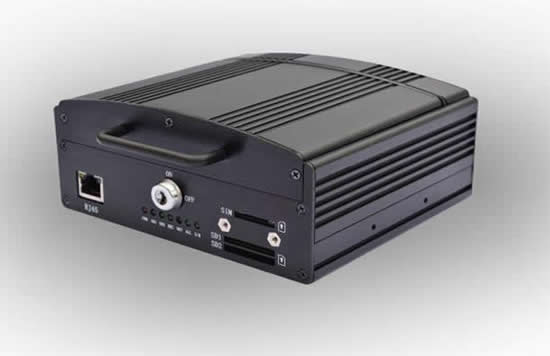

4G Vehicle Wireless NVR
MODEL: SHJ-HD-N5004
Descriptions
SHJ-HD-N5004 Series is a HD high level hard disk +2pcs SD Card mobile digital video recorder specially designed for vehicle surveillance purpose. It using the latest international technology to creat 1080P resolution for mobile security video record field. Supply very good quality picture to show the details more clearly. Support 4 channel real time 1080P video and 4 channel audio recording, or support 2ch real time 1080P AV +6ch 720P AV as 8ch HD record solution (or 8ch not real time 1080P AV).
Key Features
● Embedded operating system, assuring reliability and system integrity;
● Records up to 4ch /8ch of full-motion color video with corresponding audio tracks;
● H.264 High Profile video compression;
● Total Record resource up to 120@1080P frame/second;
● Lockable security enclosure;
● 1080P resolution for each channel, which means each channel support 1920x1080 @30fps;
● Support 4 channel real time 1080P video and 4 channel audio recording, or support 2ch real time 1080P AV +6ch 720P AV as 8ch HD record solution;
● Real time live HD video and audio through WiFi/RJ45 to show on windows system;
● Recorded HD video and audio real time playback through WiFi/RJ45;
● Synchronize the DVR system time with GPS automatically;
● Reliable power management, wide voltage: +8V~+36VDC; Applicable for vehicles with +12V or +24V battery;
● The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit;
● Can use ignition to control the power;
● Support schedule recording;
● Support alarm recording;
● Record vehicle speed and car id with video;
● Support 6 sensors, can be connected to speed, ignition, brake, return, right turn, left turn light etc;
● Recorded G-Sensor Values can provide reference of data analyzing when accidence happened;
● Combined Recording can be triggered when G-Sensor values go beyond threshold;
● Support SDHC card within 32GByte,more than 64GByte (Maxim 2048GByte);
● Support hot-plug when the DVR system is not recording or remote-operation(remote copying or playing back);
● Support IOS/Android Phone Remote monitor
Application
Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat
Specifications
Model | SHJ-HD-N5004 | |
System | Operating System | Linux 2.6 |
Operator Interface | English / Simplified Chinese/other language can be ordered | |
Storage | H01 support HDD storagy, S01 support 2pcs SD Card storagy (up to 128GB) | |
Video System | H.264 Main/High Profile, | |
Voltage Input / Output | Input: 8 V ~ 36 V DC, Output: 12V/1.5A | |
Video | Video Input | 4 x 1080p/720p ;2 x 1080p+6 x 720p camera inputs |
Video output | PC / WIN8 Tablet , iPhone/ Android Phone for network remotely monitor | |
Preview | 1 image / 4 images / 8 images | |
Standard Stream | ISO 14496-10 | |
Recording Resolution | Selectable (1920x1080, 1280x720, 640x480) | |
Recording | Supports normal, schedule, alarm recording and continuous | |
Video Compression | H.264 (High profile up to level 4.1) | |
Max fps (total) | 120fps@1080p | |
Audio | Audio Input | 4ch or 8ch input |
Audio compression | AAC (16bit, 48KHz) | |
Interface I/O | LAN | 1(RJ-45) 10M / 100M Ethernet port |
USB | Supports USB 2.0 for U-Disk recording | |
Serial | RS-232×1 | |
Network | WiFi | Build in 802.11b/g/n AP, speed up to 300Mbps |
Protocolo | TCP / IP | |
Communication | 4G/3G/EDGE/GPRS/CDMA | |
Alarm & Sensor | Inputs | 6 Alarm I/O input, 1 speed, 1 ignition, 1 G-Sensor |
Outputs | 1 ch output | |
Power Supply | Ignition key | Recording starts when ignition is on, stops with delay time when ignition is off. |
Power Consumption | Less than 5.0W (with SD and without providing power for the cameras) | |
Physical Characters | Dimension | 123.0mm x 142.0mm x 36.2mm（double SD model）/123.0mm x 142.0mm x 60.2mm(HDD model) |
Weight | 0.56KG(double SD model)/1.08kg（HDD model） | |
Others | Backup | By WiFi (300Mbps, Actual download speed up to 150Mbps) |
Clock | Internal, permanent calendar, Time sync from GPS (if available) | |
GPS | GPS/GLONASS module external | |
Function Dual Streaming | Allows you to configure the frame rate of different transmission frame rate recording and bandwidth control | |
Self-protection | Protection against overload, short circuit and short time reverse polarity | |
Reset | Option to return to factory default setting | |
SD memory | Support SD card x 2 (SD model) | |
LED’s | Indicates Power, RUN, Alarm, Recording status, network | |
Method of writing and reading of data | Overwrite ON/OFF selectable | |
Synchronization time | GPS Time Synch / Time Synch via networking | |
Environment | Operating Temperature | -30 ~ 60°C |
Relative humidity | 5% - 95% | |
Vibration resistance | < 3 Grms | |
Resistance to mechanical shock | < 1200 Grms | |
Embedded Software | Config. FPS per channel | allows (1~30fps) |
ID records vehicle license plate | allows | |
USB | Record | |
Rename channels | allows | |
Time | Settings day,hour, minute | |
Image Playback | Includes date and time, latitude and longitude, vehicle speed, and vehicle ID and channel number | |
Playback Speed | Speed forward 1x ~ 16x | |
