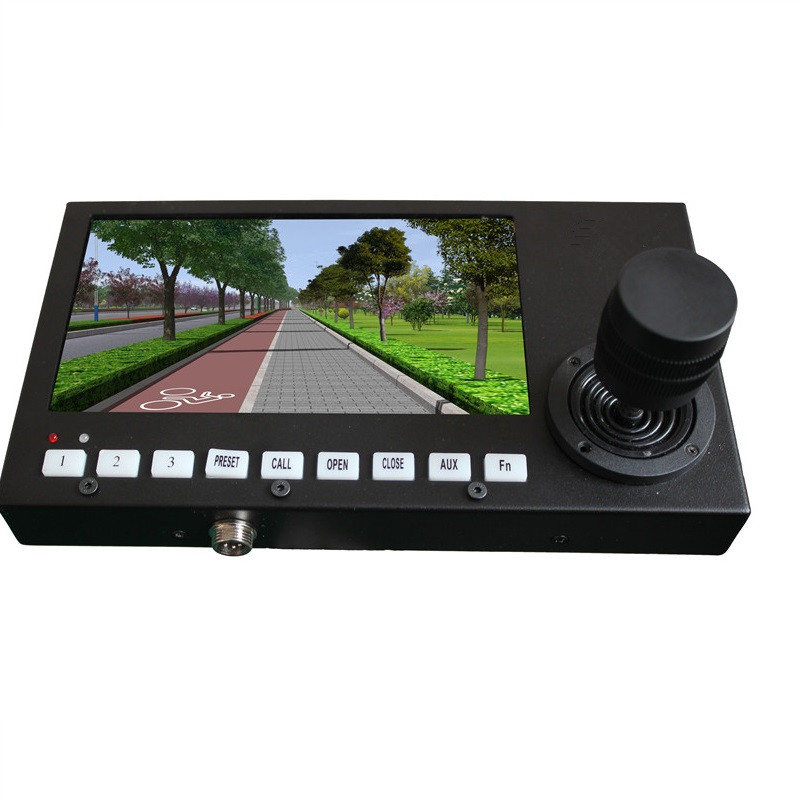

Vehicle PTZ Control Keyboard with monitoring screen(SHJ-K022)
MODEL：SHJ-K022
Features：
l 8pin aviation head (can be installed at the top or bottom, easy to adjust according to project requirements)
l 7 inch industrial screen, resolution: 1024 * 600
l Variety input signals are available (VGA / AHD / AV / Dual AV / Quad AV)
l Support PTZ control
l Support capture function optional (according to the project requirements to adjust the capture key work)
Application：All kinds of vehicle mobile monitoring vehicles, public security law administrative, military vehicles, passenger vehicles, freight vehicles, etc.
Parameter：
Product Name | Car display control keyboard | |
Video input | Video input | VGA/AHD/dual AV/4 channels AV customized |
Other interface | Aviation interface | 8pin composite interface |
Screen | Monitoring screen | 7 inch LED back light |
Resolution | 1024*600 | |
Brightness | 350nit | |
Control keyboard | Rocker | Three dimensions |
Preset point | Max support 12pcs | |
Aperature adjustable | Support | |
Baud rate | 2400/9600 adjustable | |
Power supply | Working voltage | 12V |
Consumption | <6W | |
Working temperature | Temperature | -15℃～ +60℃ |
Humidity | 10%-95%（No condensation） | |
Physical characteristics | W*D*H | 230*130*30.5 |
Weight | 600g | |
