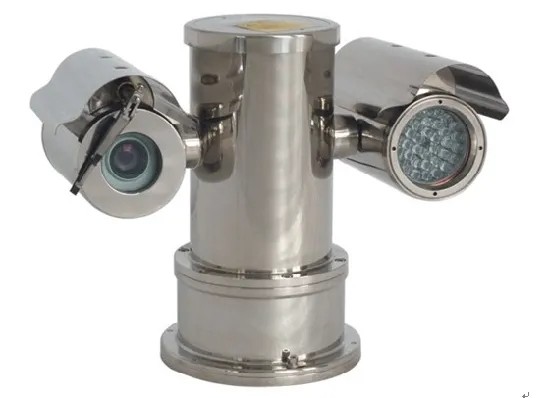

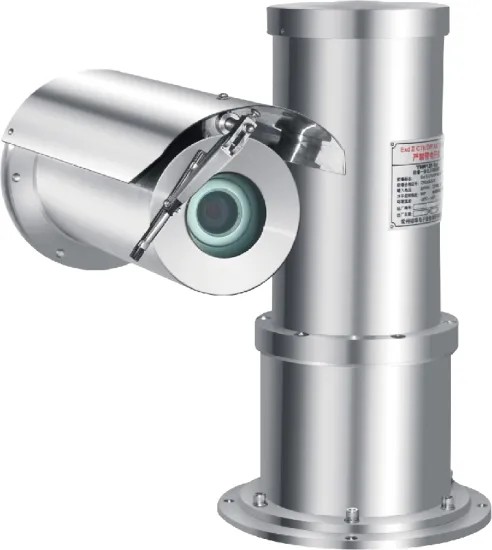

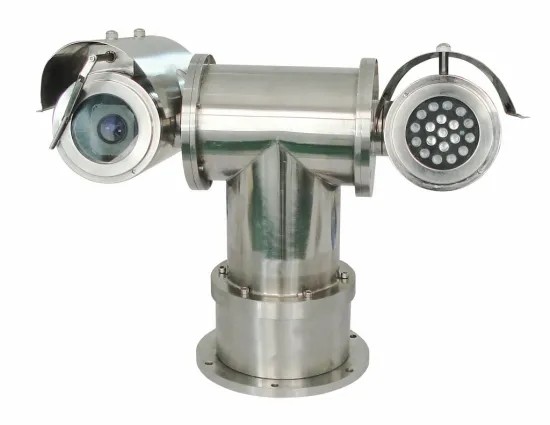

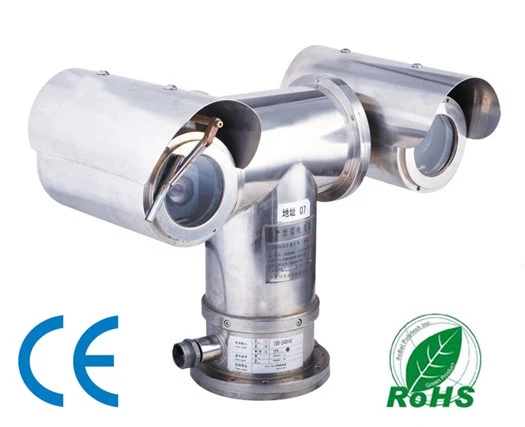

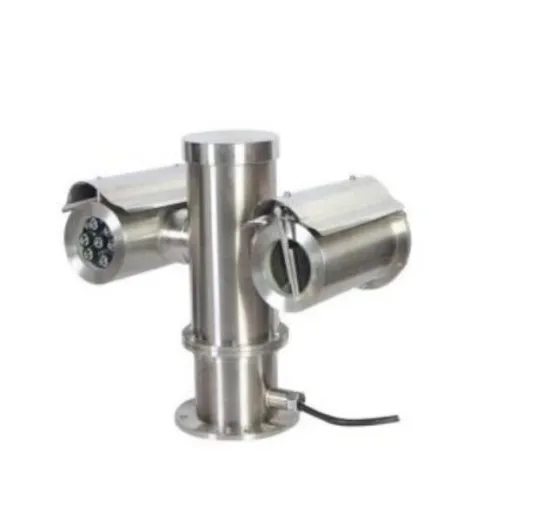

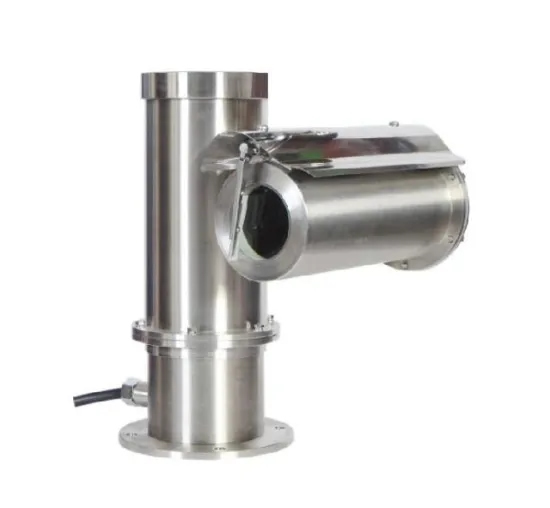

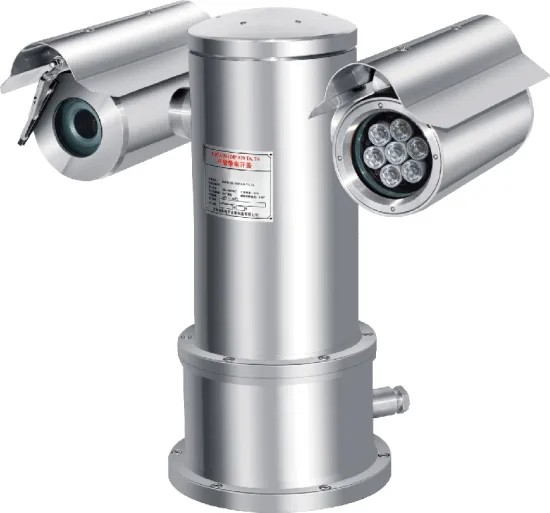

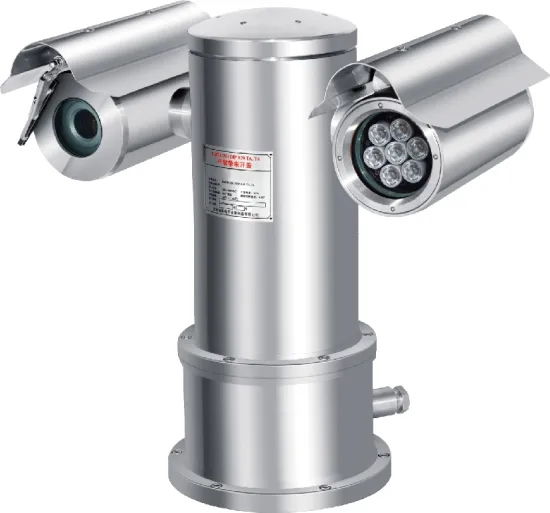

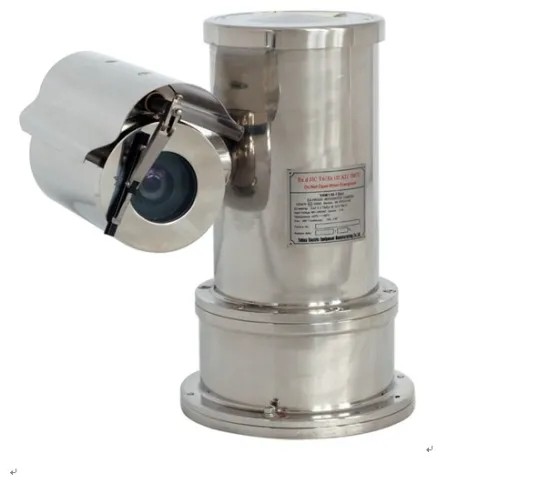

Explosion-proof Thermal Imaging PTZ Camera
Model: SHJ-BAY203
Product Feature:
1. Atmospheric Pressure: 80KPa ~ 106KPa
2. Ambient Temperature: -35º C ~ +55º C
3. Relative Humidity: Less than 95%(+25º C)
4. Ex-proof Marking ExdIICT6/DIP A20 TA, T6
5. Enclosure protection: IP66
6. Structural: Integration dome type structure, double-shade design
7. Manufacturing Materials: 316L Double stainless steel (marine environments chlorine tanker)
8. Support long focal speed limit function
9. 128 presets, with tracking and scanning function
10. Auto start tracking function
11. Power-off and memory data function
12. Remote address protocol baud rate changes
13. Horizontal 360 ° Unlimited rotation range Vertical +90° ~-90°
14. Built-in decoder, integrated multi-protocol, baud rate and multi-brand cameras agreement
15. Built-in surge and lightning protection devices
PTZ Parameter:
White balance | Auto/Manual |
S/N ratio | ≥50dB |
Thermal Image | 384*288/640*512 pixels |
Frame Rate | 50Hz/60Hz |
Pixel Pitch | 8-14μm |
NETD | ≤50mK(@25℃ F1.0) |
Lens focal | 3.7°×2.8° |
Digital Zoom | 2x |
Min illumination | Color: 0.05Lux, White: 0.005 Lux |
Focal & Iris | Auto/Manual |
Pan speed | 0.1°~80°/s |
Tilt speed | 0.1°~60°/s |
Pan range | 360°Continuously |
Tilt range | +90°~-90° |
Preset | 128(Max.) |
Communication | Multi-protocol, RS485 |
Relative humidity | 90% |
Work temperature | -35°C~55°C |
Power consumption | 60VA |
Power supply | AC220V/AC24V |
Weight | 30kg |
33X Zoom 2.0MP Camera Module
Model | SHJ-8233J | ||
Camera | Image Sensor | 1/3" Progressive CMOS | |
Effective Pixels | 1920x1080 | ||
Optical Zoom | 33x, 4.6-152mm | ||
Aperature | F1.6-F4.8 | ||
Angle of View | Horizontal: 60.08-2.08° (Wide-Tele), Vertical: 35.32°-1.18° | ||
Day / Night | IR-CUT, Auto, Color, B/W | ||
MOD | 10mm~1500mm (Wide~Tele) | ||
Zoom Speed | 3 Sec. (Optical, Wide~Tele) | ||
Parameter | Definition | Main Bitstream: 50HZ:25fps(1920x1080, 1280x720) 60HZ:30fps(1920x1080, 1280x720) | |
Mini. Illumination | Color: 0.01Lux @(F1.6,AGC ON), B/W: 0.005Lux @(F1.6,AGC ON) | ||
Video Out | RJ45 | ||
Setting | Brightness, Contrast, Saturation, Sharpness, Chroma | ||
Function | Area Mask, WDR, Anti-flicker, Defogging, Mirroring, Aisle Mode, Rotation, BLC, HLC, Exposure Compensation, Defective Pixel Compensation, Power Loss Recovery, Distortion Correct, DIS, 3D Position | ||
ROI | 4 Areas | ||
Focus | Auto/Manual/One-time Focusing | ||
Exposure | Auto/Aperature/Shutter/Manual/Low Illuminance/High Illuminance | ||
Electronic Shutter | 1/25~1/100000 | ||
DNR | 2D / 3D | ||
WB | Auto/ Manual/ Sunshine/ Cloudy/ Dusk/ Sodium Lamp/ Fluorescent Lamp/ One-time Tracking/ Auto-tracking/ Locked | ||
WDR | Super WDR, Digital WDR, 0~100 | ||
Lens Inicialization | Built-in | ||
Electronic Zoom | 16x | ||
Signal System | PAL/NSTC | ||
Network | Storage | Support MicroSD 128G (Suggest class 10) | |
Smart Alarm | Motion Detection, Camera Shaded, Network Disconnected, IP Conflict, HDD Error, HDD Full | ||
Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS (IPv6 Optional) | ||
System Compatibility | ONVIF2.4, FV Private, Active Registration, CGI, Dahua, Hikvision | ||
Dual Bit Rate | 1080P/720P(Main), D1/CIF(Sub) | ||
Video Compression | H.265/H.264 | ||
Audio Compression | G.711A, G.711U, G.726, AAC | ||
Function | Password Protection, Heartbeat, Multiple User Access Control | ||
Interface | Interface | 26pin FFC (Network Interface, RS485, RS233, CVBS, Alarm In/Out, Audio In/Out, USB, Power) | |
Communication | RS232 (VISCA), RS485 (Pelco, FV) | ||
General | Temperature / Humidity |
| |
Power Supply | DC12V±10% | ||
Power Consumption | Static: 2.5W, Dynamic: 4.5W | ||
Dimension | 50 x 100 x 60 mm | ||
