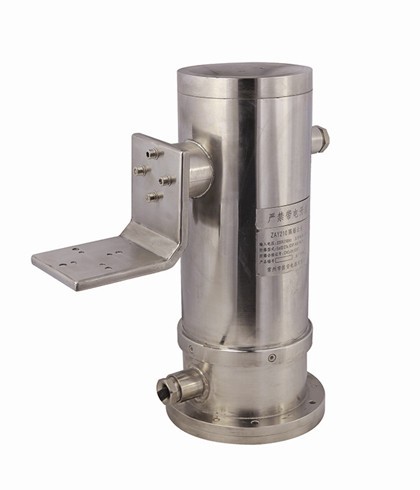

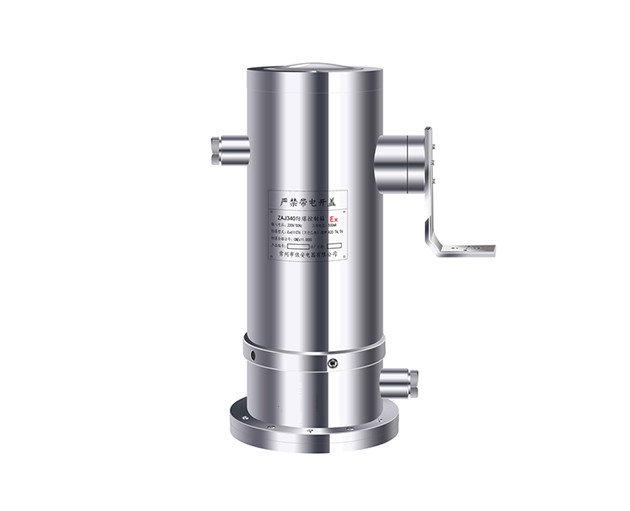

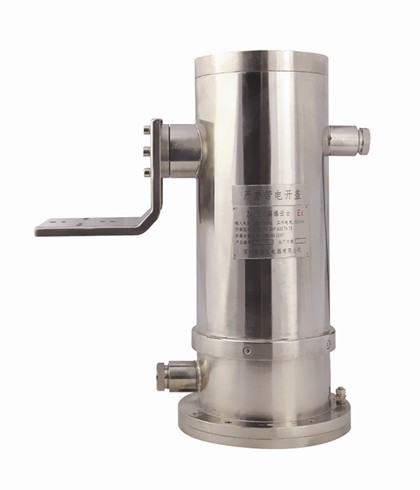

Explosion proof Pan Tilt
Model: SHJ-PTZ310
Product Introduction:

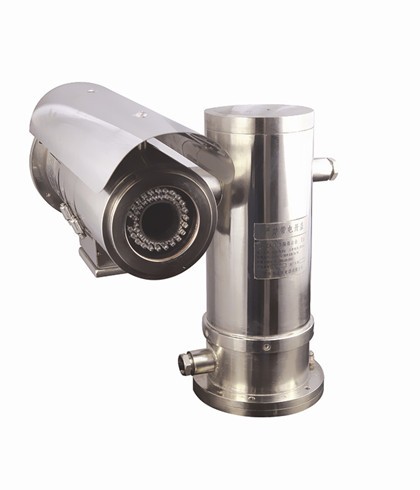

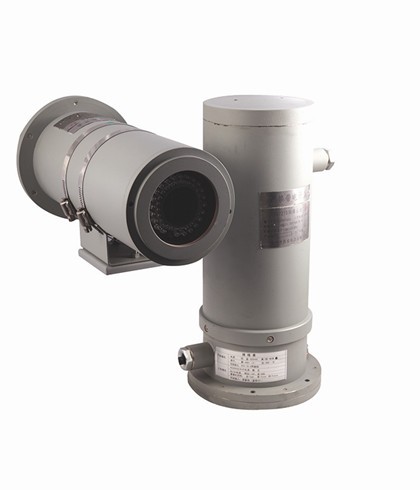

SHJ-PTZ310 is explosion proof pan tilt, which is design to load our fixed type explosion proof camera, such as SHJ-F100B, SHJ-F102, SHJ-F105, SHJ-F103, SHJ-F1031. With pan tilt station, our explosion proof camera can realise auto tracking at any direction.
Certificate
Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
Certificate No | CNEx13.4247 |
Standards | Q/320412ZAF012-2013 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 1pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC220V or AC24V |
Power | 50W |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Communication
Communication | support analog video output |
485 Communication | Support Pelco-D, Pelco-P |
Communicate Rate | 2400 to 19200bps |
Pan & Tilt
Horizontal | 360° |
Horizontal speed | 0.1-45°/s |
Vertical | -90 to +90° |
General
Cable | integrated cable |
Size | 315*178*259mm |
Weight | 10.5kg |
Mounted | wall, pole |
Wall bracket | SHJ-210B |

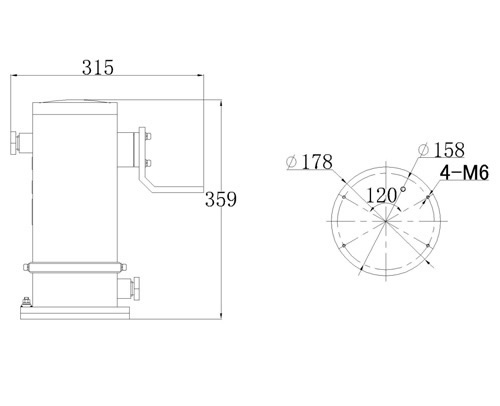

Drawing: (mm)
