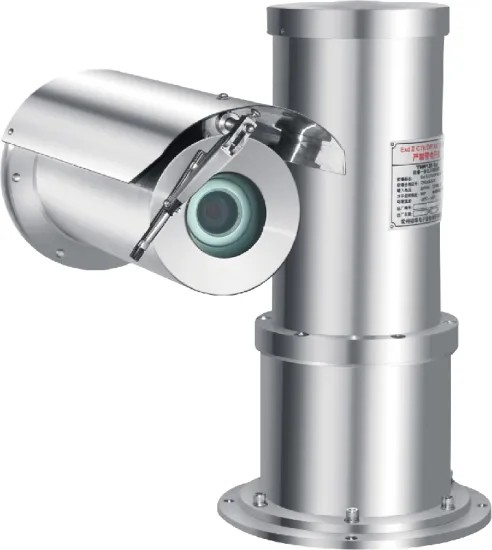

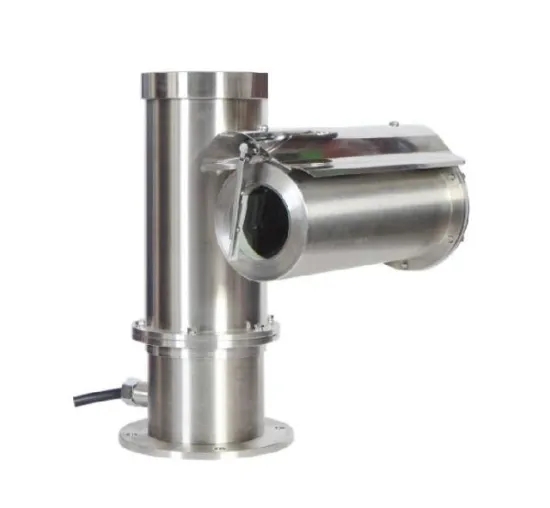

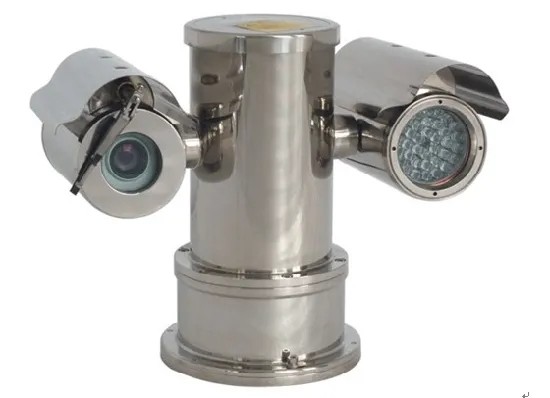

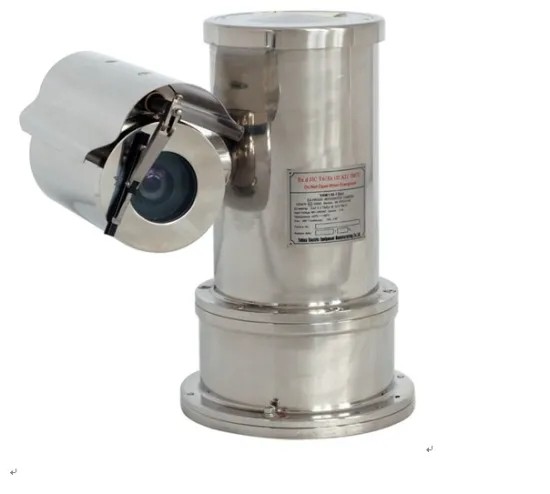

Single-Housing Explosion-proof PTZ Camera(SHJ-BAY200)
Product Features:
1. The highest explosion-proof grade, protection level certification
2. Support SD, HD transmission
3. Integrated design, compact structure
4. Small size, easy installation and maintenance
5. High-speed, variable speed, faster response
6. Cost-effective explosion-proof monitoring equipment, market-tested
Technical Parameter:
Model | SHJ-BAY200 | |
Certificate specification | ||
Manufacture standard | GB3836.1-2010、GB3836.2-2010、GB12476.1-2013 、GB12476.5-2013 | |
Explosion-proof mode | Exd IICT6 Gb,ExtD A21 IP68 T80℃ | |
Protect grade | IP68 | |
Working temperature（℃） | -40～60 | |
In cable interface | 1pc G3/4 explosion-proof in cable interface | |
Mechanical parameter | ||
Material | 304//316L Stainless steel | |
Transimission structure | Gear drive | |
Pan/Tilt rotation angle(°) | 360 / ±90 | |
Pan/Tilt rotation speed(°/s) | Constant speed(6～20)/ 4～20 adjustable / 0.1～40 adjustable | |
Weight(Kg) | 20 | |
Demension（L*W*H） | 300*235*395 | |
Electrical parameter | ||
Network protocol | TCP/IP，HTTP，DHCP，DNS，DDNS，RTP/RTSP，PPPoE ，SMTP，NTP， ONVIF | |
Video resolution | SONY 1/4″Exview HAD CCD480TVL 720P/1080p HD（1920*1080） | |
Video compression | H.264/MPEG4/MJPEG | |
Control interface | Communication | RS-485 、PELCO-D，P protocol (Accoring to clients requirements |
Baud rate | Baud rate 2400 / 4800 / 9600 / 19200(Optional) | |
Power supply | ||
Voltage | 24V AC / 220V AC | |
Current | 2A / 0.5A | |
Others | ||
Optional | Spray; wipers; chamber heating; presetting; | |
