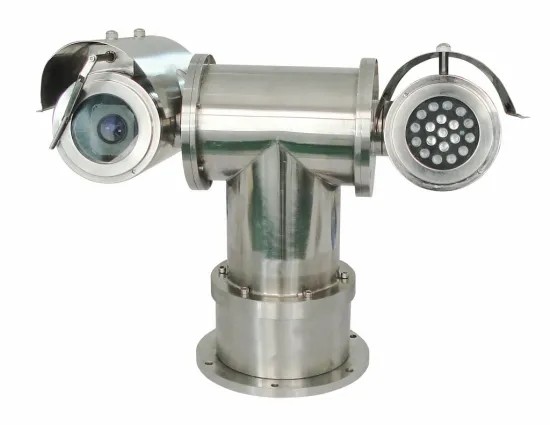

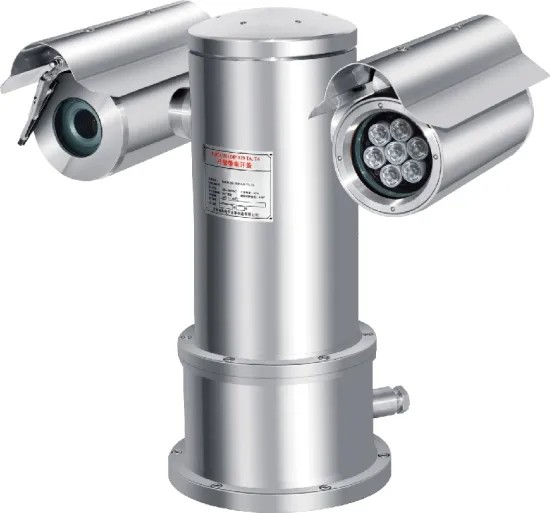

100m Night Vision IR Explosion-proof HD IP PTZ Camera
Model: SHJ-BAY201
Product Features:
1. The highest explosion-proof grade, protection level certification
2. Support SD, HD transmission
3. Integrated design, compact structure
4. Small size, easy installation and maintenance
5. High-speed, variable speed, faster response
6. Cost-effective explosion-proof monitoring equipment, market-tested
Technical Parameter:
Model | SHJ-BAY201 |
Certificate specification |
Manufacture standard | GB3836.1-2010、GB3836.2-2010、GB12476.1-2013 、GB12476.5-2013 |
Explosion-proof mode | Exd IICT6 Gb,ExtD A21 IP68 T80℃ |
Protect grade | IP68 |
Working temperature（℃） | -40～60 |
In cable interface | 1pc G3/4 explosion-proof in cable interface |
Mechanical parameter |
Material | 304//316L Stainless steel |
Transimission structure | Gear drive |
Pan/Tilt rotation angle(°) | 360 / ±90 |
Pan/Tilt rotation speed(°/s) | Constant speed(6～20)/ 4～20 adjustable / 0.1～40 adjustable |
Weight(Kg) | 20 |
Demension（L*W*H） | 300*395*395 |
Electrical parameter |
Network protocol | TCP/IP，HTTP，DHCP，DNS，DDNS，RTP/RTSP，PPPoE ，SMTP，NTP， ONVIF |
Video resolution | SONY 1/4″Exview HAD CCD480TVL 720P/1080p HD（1920*1080 pixels） |
Video compression | H.264/MPEG4/MJPEG |
Control interface | Communication | RS-485 、PELCO-D，P protocol (Accoring to clients requirements |
Baud rate | Baud rate 2400 / 4800 / 9600 / 19200(Optional) |
Power supply |
Voltage | 24V AC / 220V AC |
Current | 2A / 0.5A |
IR Wave(nm)/distance | 850nm/100m |
Others |
Optional | Spray; wipers; chamber heating; presetting; |
