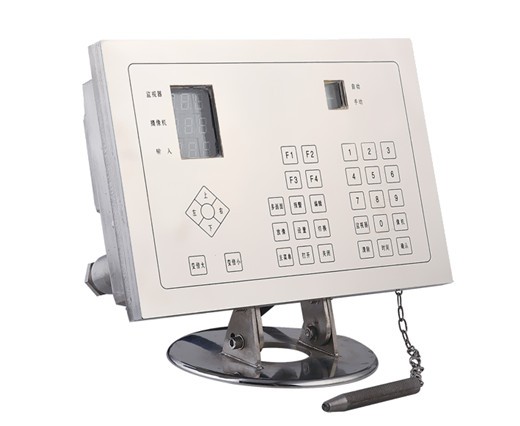

Explosion proof controller
Model: SHJ-CK320
Product Introduction:
1. Fit for gas zone 1, zone 2;
2. Fit for dust zone 21, 22;
3. IP66;
4. Control camera, pan& tilt
Certificate
Certificate Mark | ExdⅡB T6 Gb / DIP A20, TA T6 |
Certificate No | CNEx16.3449X |
Standards | Q/320412ZAF081-2016 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP66 |
Cable thread hole | 6pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC85V～AC265V or DC24Vor AC24V |
Power | 50W |
Surge Protect | Optional, TVS6000V surge protect |
Ambient
Ambient temperature | -25 to +60℃ / -45 to +80℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Communication
Communication | RS485 |
485 Communication | Support Pelco-D, Pelco-P |
Communicate Rate | 2400 to 19200bps |
Video Input | 4-Channel |
Video Output | 1-Channel |
General
Cable | integrated cable |
Size | 300*170*255mm |
Weight | 15kg |
Mounted | desk |

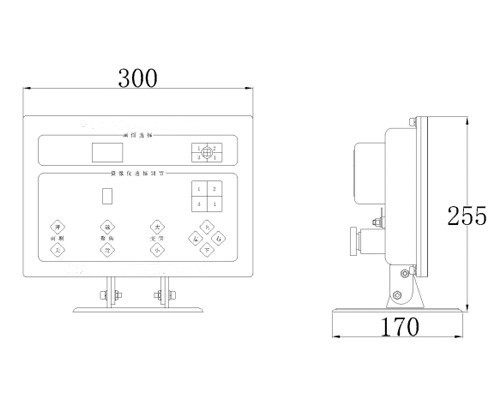

Drawing: (mm)
