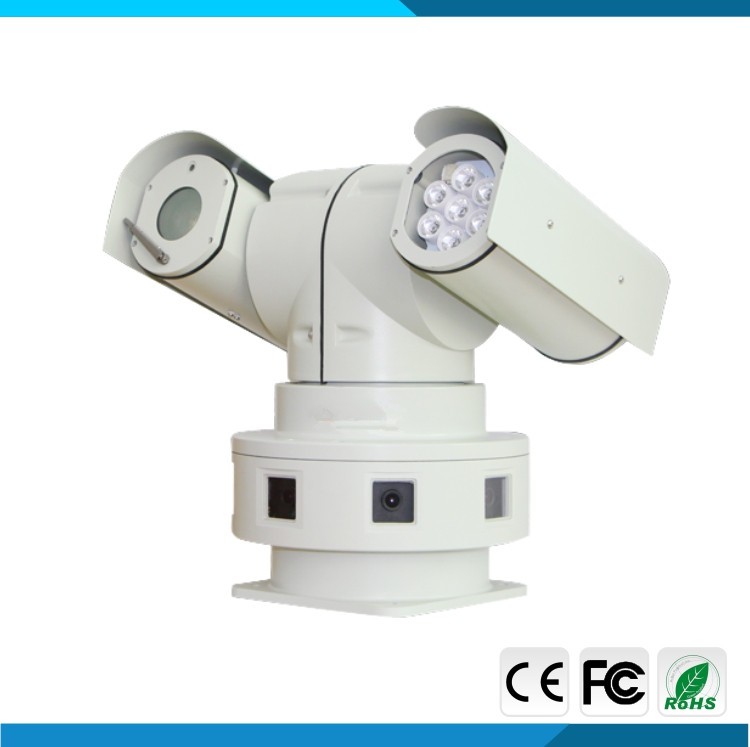

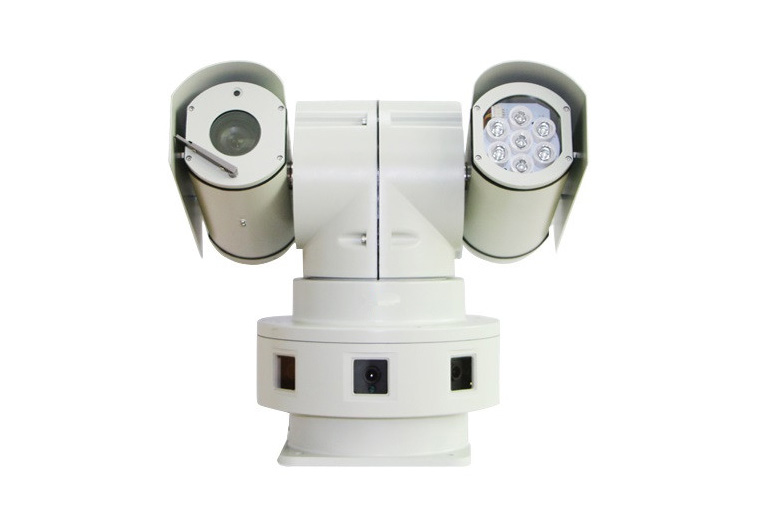

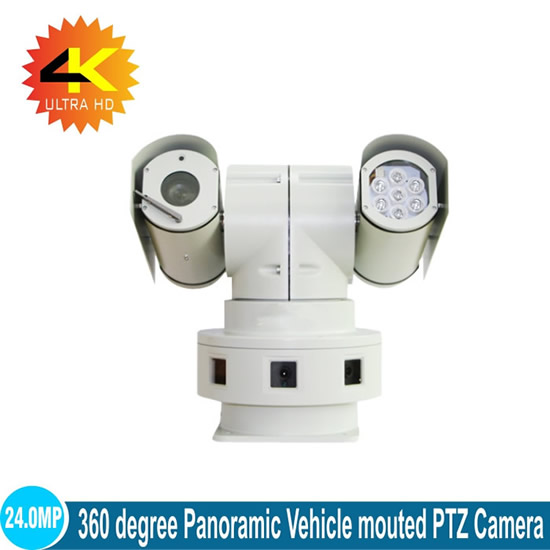

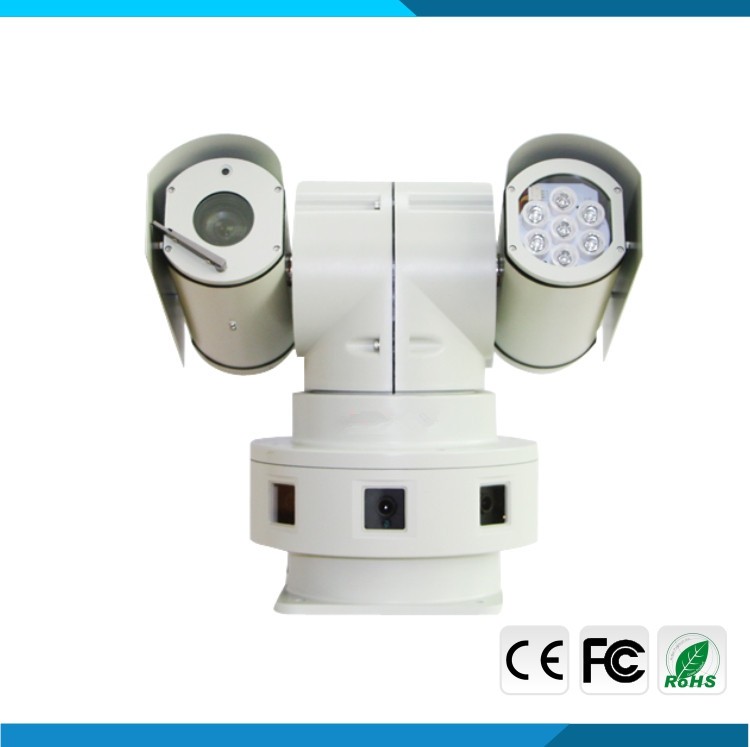

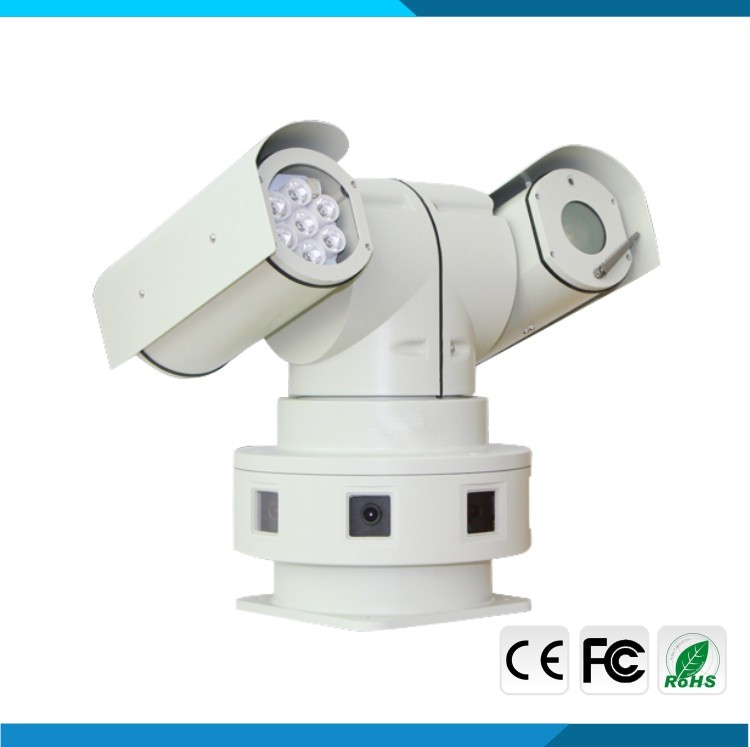

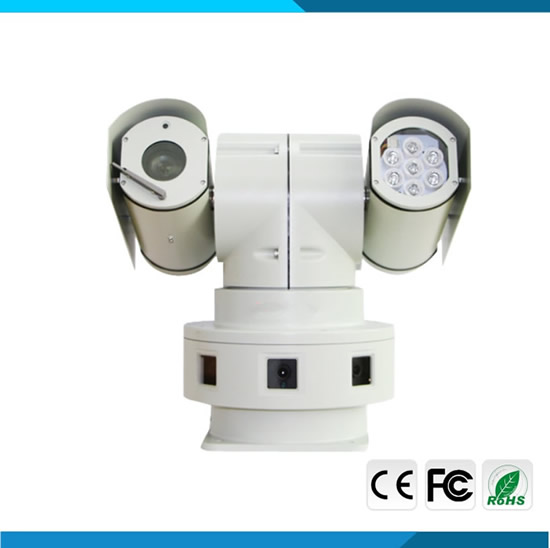

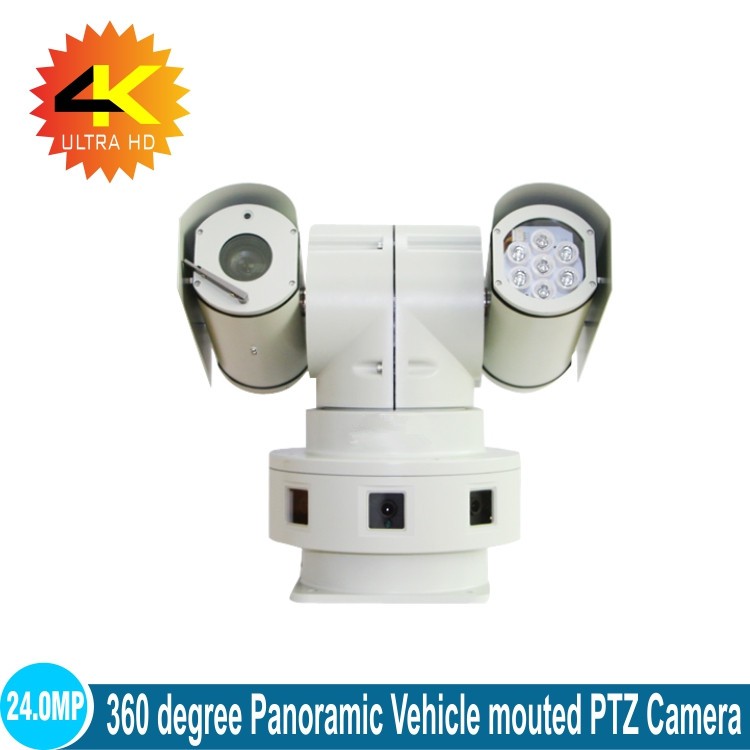

8x2.0MP Multi-Sensor Panoramic+2MP PTZ Camera
Model：SHJ-TW20
Multi-sensor panoramic pan/tilt is a core technology that integrates panoramic mosaic imaging technology, intelligent tracking, face acquisition, and license plate recognition algorithms. Provide users with a 360-degree panoramic imaging acquisition system and real-time video intelligent analysis system, providing a comprehensive video solution for current mobile law enforcement，Enable them to see the road conditions around the car and the surrounding conditions in real time in the car. It is also possible to link the gimbal to sensor the details of the selected location, and the effective monitoring range in the mobile law enforcement process can reach a radius of 500 meters. It has expanded the effective scope of mobile law enforcement supervision, and can collect real-time identification of license plate numbers in real-time. It has greatly improved the law enforcement ability and efficiency of current mobile law enforcement.
Feature:
● The panoramic PTZ camera integrates multiple camera units. The internal camera units monitor different orientations and truly achieve the full coverage of a panoramic PTZ camera.
● Simultaneous acquisition of each camera unit ensures the consistency and continuity of the pictures captured by each camera in time and space.
● Simultaneous exposure of each camera unit ensures that the picture captured by each camera unit is consistent in bright and dark, and the color is uniform.

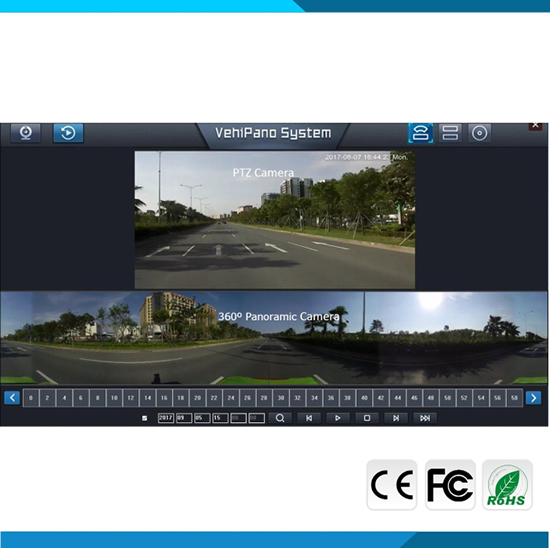

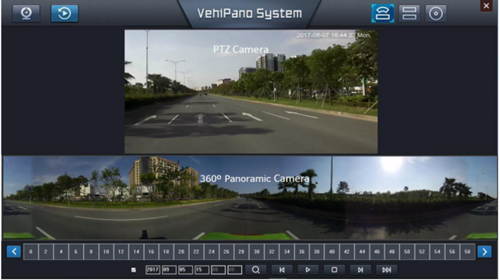

● The back-end uses the splicing fusion algorithm to intelligently integrate and seamlessly splicing the images collected by the multi-channel camera unit, and completes the horizontal 360-degree and vertical 80-degree panoramic surveillance image. The panoramic surveillance image has distortion, small deformation and uniform resolution.
● The spliced panoramic picture supports digital zoom and supports 3D operation. Users can drag and drop the picture arbitrarily, so that it can sensor panoramic images from various angles.

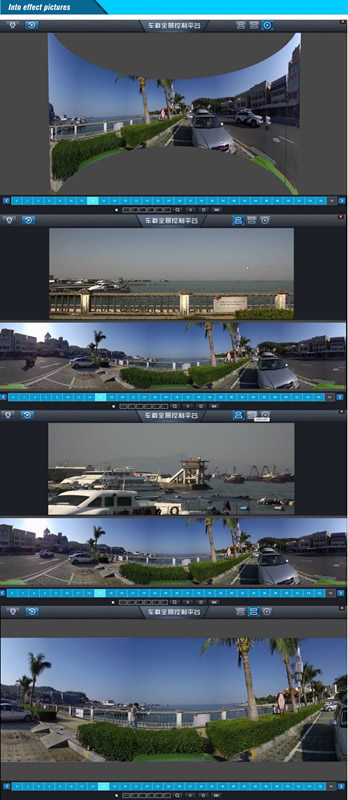

● The spliced panoramic picture supports 180° cylinder splitting before and after unfolding, 360° annular cylinder unfolding, multi-camera independent original image and so on.
● The spliced panoramic picture supports 180° cylinder splitting before and after unfolding, 360° annular cylinder unfolding, multi-camera independent original image and so on....
● The panoramic metering area can be set by the user according to the site conditions.
● Support setting image and video encoding parameter settings through web pages
● Support for searching for IP addresses
● Support WEB browser direct access
Specification:
360º Panoramic+PTZ vehicle-mounted camera | ||

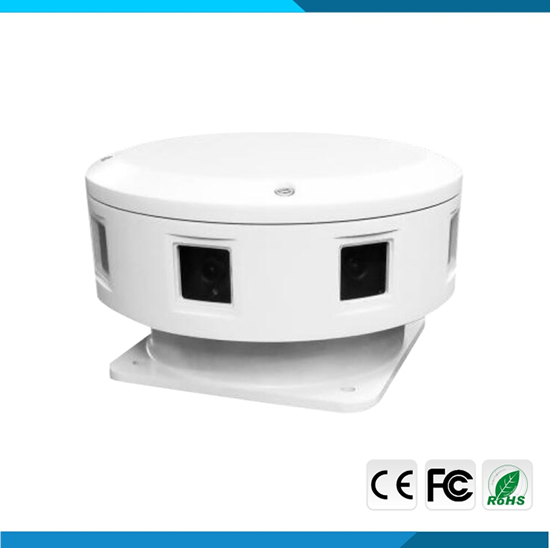

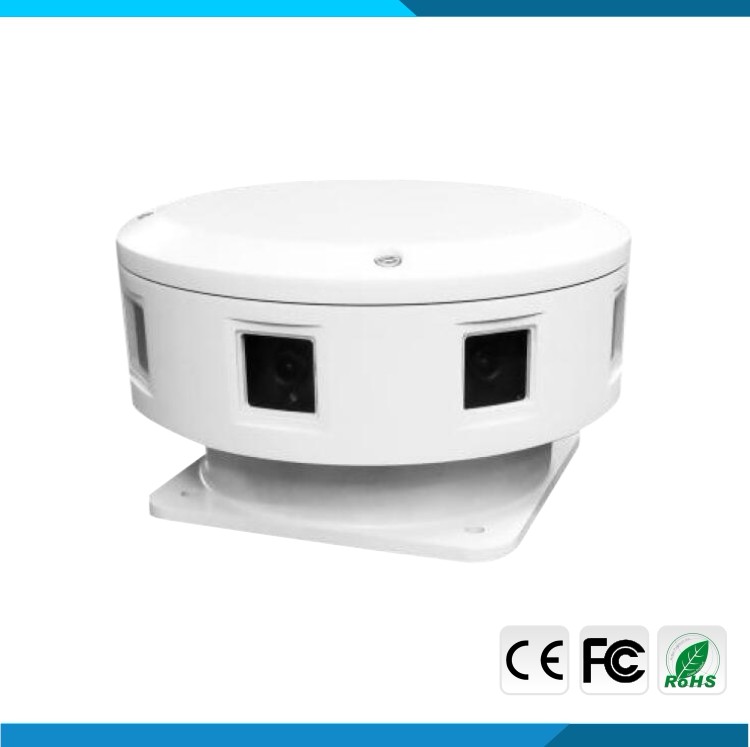

360° Panoramic Camera | Image sensor | 1/2.8” Progressive Scan CMOS |
Image sensor Qty | 8 | |
Minimum illumination | Color:0.01 Lux@(F1.8,AGC ON); | |
lens | F3.6mm/F1.8 | |
Angel of Sensor | Horizontal :360º，Vertical:80º | |
3D Noise Reduction | Support | |
S/N | ≥50dB | |
Image processing | White balance ,Auto shutter | |
Image compression | H.265/H.264 | |
Max Image Resolution | 1536×2048 ×8 | |
Resolution&Frame Rate | Main stream ： | |
Sub stream：50Hz:480×640×8@25fps60Hz:480×640×8@30fps | ||
Programming interface | ONVIF，CGI，SDK | |
Protocols | TCP/IP、HTTP、HTTPS、DHCP、UDP、RTP、RTCP、RTSP、SNMP、802.1x、UPnP、DDNS、SMTP, Bonjour | |
PTZ Camera | Image Sensor | 1/2.8” Progressive Scan CMOS |
Minimum Illumination | Color:0.01 Lux@(F1.2,AGC ON);B/W:0.001 Lux@(F1.2,AGC ON) | |
S/N | ≥50dB | |
DNR | 2D、3D | |
Focal Length | 30X Optical Zoom | |
Preset Positions | 256 Positions | |
Cruise Scan | 6 tracking | |
Frame Rate | 25fps(PAL)/30fps(NTSC) | |
Image Resolution | H.264，H.264(Baseline/Main Profile/High Profile) | |
Max Image resolution | 1920×1080 | |
Resolution&Frame rate | Main stream：50Hz:25fps 1920×1080，60Hz:30fps 1920×1080 | |
Sub Stream：50Hz:25fps 640×360，60Hz:30fps 640×360 | ||
Interface | General | One-key recovery |
Network interface | 1xRJ45，10M/100M/1000M Ethernet interface | |
General | Working Temperature&Humidity | -40℃~60℃/95%RH |
Protection Level | IP66 | |
Power Supply | DC24V | |
Dimension | 381mm*250mm*346mm | |
Weight | 14kg | |
