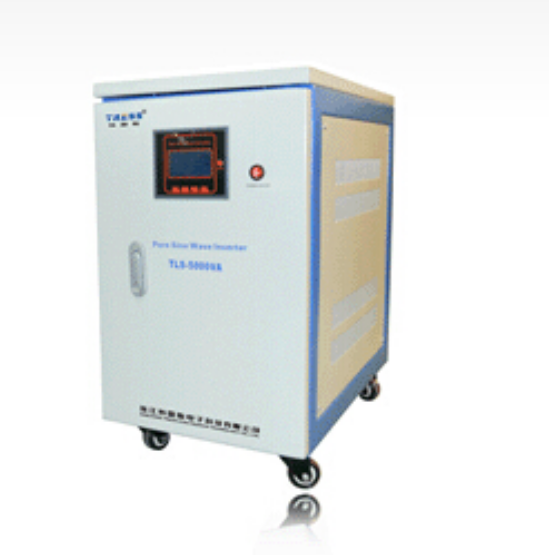

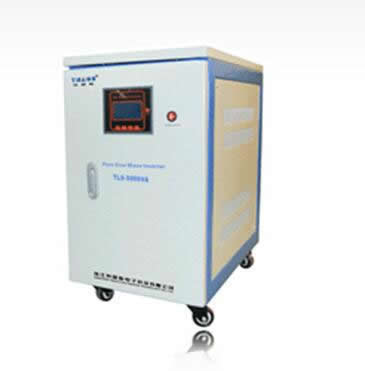

Off-Grid Wind Inverter 5KW-10KW(SHJ-I5KW-10KW)_Changzhou Shengshijia Electronic Co., Ltd.

You are here: Home / Products / Wind Turbine / Inverter

Product Model	WI50-48	WI50-96	WI50-120	WI50-220	WI50-240
Rated inverter output capacity	5 kVA	5 kVA	5 kVA	5 kVA	5 kVA
Rated battery voltage	48 V	96 V	120 V	220 V	240 V
Over Voltage Shutoff	68 V	136 V	170 V	312 V	340 V
Over Voltage Recovery	66 V	132 V	165 V	302 V	330 V
Under Voltage Shutoff	43.2 V	86.4 V	108 V	198 V	216 V
Under Voltage Recovery	48 V	96 V	120 V	220 V	240 V
No-load Loss	≤2.8 A	≤1.6 A	≤1.6 A	≤0.8 A	≤0.7 A
Net Weight	77 kg	68 kg
Dimensions (Lx W x H)	500×500×725mm	560×320×525 mm
Output Wave	Pure sine wave
Display Mode	LCD
Cooling	Fan
Rated Output Voltage	220/240/380/400/415 V_AC
Wave Distortion	≤4％
Output Frequency	50/60±0.5 Hz
Dynamic Response	5%
Power Factor	≥0.8
Over-load Capacity	120% 1min, 150% 10s
Invert Efficiency	Maximum 90%
Isolating Mode	Toroidal Transformer
Protection Level	IP20（Indoor）
Noise (1m)	≤40dB
Insulating Strength	1500V_AC, 1min
Protection Functions	Input over voltage protection, Battery under voltage protection, Battery anti-reverse connection protection, Output overload protection, Output short circuit protection, Over temperature protection.
Ambient Temperature	-20～+55℃
Ambient Humidity	0~93%, without condensing
Working Altitude	≤4000m
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement.

Product Model	SHJ-100-120	SHJ-100-220	SHJ-100-240
Rated inverter output capacity	10 kVA	10 kVA	10 kVA
Rated battery voltage	120 V	220 V	240 V
Over Voltage Shutoff	170 V	312 V	340 V
Over Voltage Recovery	165 V	302 V	330 V
Under Voltage Shutoff	108 V	198 V	216 V
Under Voltage Recovery	120 V	220 V	240 V
No-load Loss	≤2.0 A	≤1.0 A	≤1.0 A
Net Weight	106 kg
Dimensions (Lx W x H)	500×500×725 mm
Output Wave	Pure sine wave
Display Mode	LCD
Cooling	Fan
Rated Output Voltage	220/240/380/400/415 V_AC
Wave Distortion	≤4％
Output Frequency	50/60±0.5 Hz
Dynamic Response	5%
Power Factor	≥0.8
Over-load Capacity	120% 1min, 150% 10s
Invert Efficiency	Maximum 90%
Isolating Mode	Toroidal Transformer
Protection Level	IP20（Indoor）
Noise (1m)	≤40dB
Insulating Strength	1500V_AC, 1min
Protection Functions	Input over voltage protection, Battery under voltage protection, Battery anti-reverse connection protection, Output overload protection, Output short circuit protection, Over temperature protection.
Ambient Temperature	-20～+55℃
Ambient Humidity	0~93%, without condensing
Working Altitude	≤4000m
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement.
