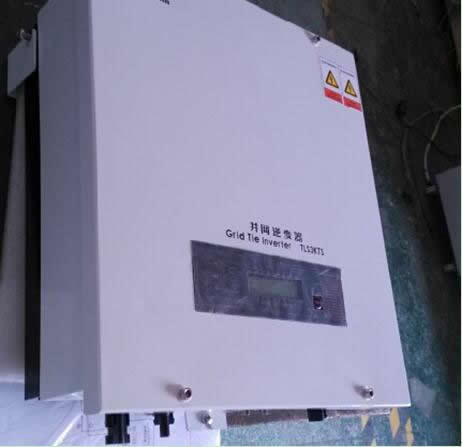

Grid-Tied Wind Inverter 3KW-10KW(SHJ-I3KW-I10KW)_Changzhou Shengshijia Electronic Co., Ltd.

You are here: Home / Products / Wind Turbine / Inverter

Model		SHJ-3KW	SHJ-5KW
Input	MPPT voltage range	DC 100~500V
	Control system	MPPT
Output	Power	3000W	5000W
	Voltage range	Single phase AC 185 ~ 264V (Can adjust)
	Rated voltage	220VAC
	Frequency	Grid frequency50/60Hz（can adjust）
	Phase	Single phase
	Power factor	0.95
	Max current	13.6A	22A
	THD	At rated power and the sine wave<3.5%
	Efficiency	97%（Euro efficiency:96.4%）
Structure	Protection degree	IP65/NEMA 4X
	Cooling method	Natural cooling
	Noice	<50dB
	Data interface	External RS 232C
Protection	Inverter	Input over voltage, output short circuit, overload overheat
	Grid	Anti-islanding(IEEE 1547),over/under voltage of grid, over/under frequency of grid
Environment	Operation temperature range	-10℃~40℃（50℃）
	Stored temperature	-25℃~60℃
	Relative humldity	0~100%
	Environment	Have no corrosion gas, flammable gas, oil mist,dust etc.
	Standby power consumption	<25.0mW
	Elevation	6600feet (2000m )
Size	WHD	415360155	610420160
Weight	KG	16.5	35

Model		SHJ-10KW
Input	MPPT voltage range	DC 100~500V
Input	Control system	MPPT
Output	Power	10KW
	Voltage range	Single phase AC 185 ~ 264V (Can adjust)
	Rated voltage	220VAC
	Frequency	Grid frequency50/60Hz（can adjust）
	Phase	Single phase
	Power factor	0.95
	Max current	45A
	THD	At rated power and the sine wave<3.5%
	Efficiency	97%（Euro efficiency:96.4%）
Structure	Protection degree	IP65/NEMA 4X
	Cooling method	Natural cooling
	Noice	<50dB
	Data interface	External RS 232C
Protection	Inverter	Input over voltage, output short circuit, overload overheat
Protection	Grid	Anti-islanding(IEEE 1547),over/under voltage of grid, over/under frequency of grid
Environment	Operation temperature range	-10℃~40℃（50℃）
	Stored temperature	-25℃~60℃
	Relative humldity	0~100%
	Environment	Have no corrosion gas, flammable gas, oil mist,dust etc.
	Standby power consumption	<25.0mW
	Elevation	6600feet (2000m )
Size	WHD	500860230MM
Weight	KG	55KG

Model		SHJ-3KW	SHJ-5KW
Input	MPPT voltage range	DC 200~850V
	Control system	MPPT
Output	Power	3000W	5000W
	Voltage range	Three phase 400V ±10% (Can adjust)
	Frequency	Grid frequency50/60Hz（can adjust）
	Phase	3phase
	Power factor	0.95
	Max current	6A	10A
	THD	At rated power and the sine wave<3.5%
	Efficiency	97%（Euro efficiency:96.4%）
Structure	Protection degree	IP65/NEMA 4X
	Cooling method	Natural cooling
	Noice	<50dB
	Data interface	External RS 232C
Protection	Inverter	Input over voltage, output short circuit, overload overheat
	Grid	Anti-islanding(IEEE 1547),over/under voltage of grid, over/under frequency of grid
Environment	Operation temperature range	-10℃~40℃（50℃）
	Stored temperature	-25℃~60℃
	Relative humldity	0~100%
	Environment	Have no corrosion gas, flammable gas, oil mist,dust etc.
	Standby power consumption	<25.0mW
	Elevation	6600feet (2000m )
Size	WHD	415360155	610420160
Weight	KG	16.5	35

Model		SHJ-10KW
Input	MPPT voltage range	DC 200~850V
Input	Control system	MPPT
Output	Power	10KW
	Voltage range	Three phase 400V ±10% (Can adjust)
	Frequency	Grid frequency50/60Hz（can adjust）
	Phase	3phase
	Power factor	0.95
	Max current	15A
	THD	At rated power and the sine wave<3.5%
	Efficiency	97%（Euro efficiency:96.4%）
Structure	Protection degree	IP65/NEMA 4X
	Cooling method	Natural cooling
	Noice	<50dB
	Data interface	External RS 232C
Protection	Inverter	Input over voltage, output short circuit, overload overheat
Protection	Grid	Anti-islanding(IEEE 1547),over/under voltage of grid, over/under frequency of grid
Environment	Operation temperature range	-10℃~40℃（50℃）
	Stored temperature	-25℃~60℃
	Relative humldity	0~100%
	Environment	Have no corrosion gas, flammable gas, oil mist,dust etc.
	Standby power consumption	<25.0mW
	Elevation	6600feet (2000m )
Size	WHD	500860230MM
Weight	KG	55KG
