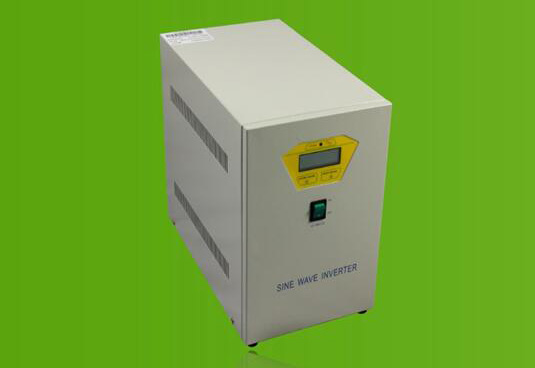

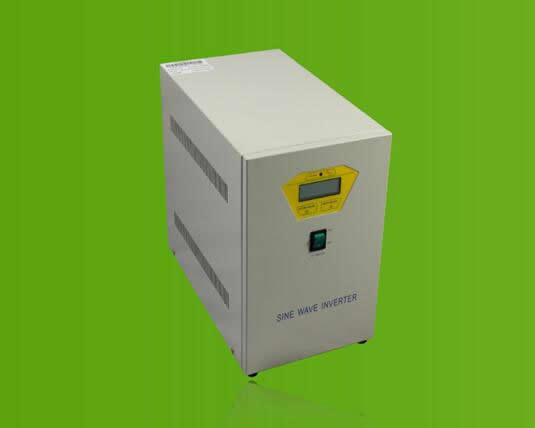

Off-Grid Wind Inverter 1KW-3KW(SHJ-I1KW-3KW)_Changzhou Shengshijia Electronic Co., Ltd.

You are here: Home / Products / Wind Turbine / Inverter

Product Model	WI06-24	WI10-24	WI10-48
Rated inverter output capacity	600 VA	1000 VA	1000 VA
Rated battery voltage	24 V	24 V	48 V
Over Voltage Shutoff	34 V	34 V	68 V
Over Voltage Recovery	33 V	33 V	66 V
Under Voltage Shutoff	21.6 V	21.6 V	43.2 V
Under Voltage Recovery	24 V	24 V	48 V
No-load Loss	≤0.7 A	≤0.7 A	≤0.5 A
Net Weight	12 kg
Dimensions (Lx W x H)	402×163×202 mm
Output Wave	Pire sine wave
Display Mode	LCD
Cooling	Fan
Rated Output Voltage	110/120/220/230/240 VAC
Wave Distortion	≤4％
Output Frequency	50/60±0.5 Hz
Dynamic Response	5%
Power Factor	≥0.8
Over-load Capacity	120% 1min, 150% 10s
Invert Efficiency	Maximum 90%
Isolating Mode	Toroidal Transformer
Protection Level	IP20（Indoor）
Noise (1m)	≤40dB
Insulating Strength	1500VAC, 1min
Protection Functions	Input over voltage protection, Battery under voltage protection, Battery anti-reverse connection protection, Output overload protection, Output short circuit protection, Over temperature protection.
Ambient Temperature	-20～+55℃
Ambient Humidity	0~93%, without condensing
Working Altitude	≤4000m
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement.

Product Model	WI20-48	WI20-96	WI20-110	WI20-120	WI20-220
Rated inverter output capacity	2kVA	2 kVA	2 kVA	2 kVA	2 kVA
Rated battery voltage	48 V	96 V	110 V	120 V	220 V
Over Voltage Shutoff	68 V	136 V	156 V	170 V	312 V
Over Voltage Recovery	66 V	132 V	151 V	165 V	302 V
Under Voltage Shutoff	43.2 V	86.4 V	99 V	108 V	198 V
Under Voltage Recovery	48 V	96 V	110 V	120 V	220 V
No-load Loss	≤0.4 A	≤0.2 A	≤0.2 A	≤0.2 A	≤0.1 A
Net Weight	20 kg
Dimensions (Lx W x H)	400×243×352 mm
Output Wave	Pure sine wave
Display Mode	LCD
Cooling	Fan
Rated Output Voltage	110/120/220/230/240 VAC
Wave Distortion	≤4％
Output Frequency	50/60±0.5 Hz
Dynamic Response	5%
Power Factor	≥0.8
Over-load Capacity	120% 1min , 150% 10s
Invert Efficiency	Maximum 90%
Isolating Mode	Toroidal Transformer
Protection Level	IP20（Indoor）
Noise (1m)	≤40dB
Insulating Strength	1500VAC, 1min
Protection Functions	Input over voltage protection, Battery under voltage protection, Battery anti-reverse connection protection, Output overload protection, Output short circuit protection, Over temperature protection.
Ambient Temperature	-20～+55℃
Ambient Humidity	0~93%, without condensing
Working Altitude	≤4000m
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement.

Product Model	WI30-48	WI30- 96	WI30-110	WI30-120	WI30-220
Rated inverter output capacity	3 kVA	3 kVA	3 kVA	3 kVA	3 kVA
Rated battery voltage	48 V	96 V	110 V	120 V	220 V
Over Voltage Shutoff	68 V	136 V	156 V	170 V	312 V
Over Voltage Recovery	66 V	132 V	151 V	165 V	302 V
Under Voltage Shutoff	43.2 V	86.4 V	99 V	108 V	198 V
Under Voltage Recovery	48 V	96 V	110 V	120 V	220 V
No-load Loss	≤0.5 A	≤0.3 A	≤0.2 A	≤0.2 A	≤0.1 A
Net Weight	27 kg
Dimensions (Lx W x H)	400×243×352 mm
Output Wave	Pure sine wave
Display Mode	LCD
Cooling	Fan
Rated Output Voltage	110/120/220/230/240 VAC
Wave Distortion	≤4％
Output Frequency	50/60±0.5 Hz
Dynamic Response	5%
Power Factor	≥0.8
Over-load Capacity	120% 1min, 150% 10s
Invert Efficiency	Maximum 90%
Isolating Mode	Toroidal Transformer
Protection Level	IP20（Indoor）
Noise (1m)	≤40dB
Insulating Strength	1500VAC, 1min
Protection Functions	Input over voltage protection, Battery under voltage protection, Battery anti-reverse connection protection, Output overload protection, Output short circuit protection, Over temperature protection.
Ambient Temperature	-20～+55℃
Ambient Humidity	0~93%, condensing
Working Altitude	≤4000m
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement.
