30m Night Vision 720P Mini Explosion Proof Camera
Model: SHJ-F109
Product Introduction:
SHJ-F109 is a mini explosion proof camera, which is widely fit for oil tank truck, marine oil tanker, and hazardous key area surveillance. The SHJ-F109 mini explosion proof camera also has 30m distance infrared lights for night vision.
Certificate
Certificate Mark | ExdⅡC T6 Gb/ Ex tD A21 IP68 T80℃ |
Certificate No | CNEx16.2526 |
Standards | Q/320412 ZAF033-2016 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 1pcs G3/4 or NPT3/4 |
Electrical
Voltage | DC12V or POE power supply |
Power | 8W |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Lights
Light distance | 20-30m |
Network
Network Interface | 1pcs of RJ45, support 10M/100M/1000M |
Video Compression | H.265/ H.264/ M-JPEG |
Stream | Support three streams |
Internet Protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP ,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE |
Time Display | Support |
Standard | ONVIF, CGI, GB/T28181, PISA |
IE browser | Support IE7 or above, Google, Firefox, Apple |
Security | Password protection, Multiple access control |
Camera
Image Sensor | 1/2.8" COMS, 1/3” COMS |
Effective pixel | 1.3MP, 2MP |
Min. Illumination | 0.01Lux @(F1.2, AGC ON) B/W: 0Lux with IR |
Lens | 4mm @ F2.0, view angle:85° (6mm, 8mm, 12mm) |
Day& Night | Auto ICR |
WDR | 120dB |
3D DNR | Support |
BLC | ON/OFF |
Image setting | Mirror, Saturation, Brightness, Contrast, Sharpness adjustable |
General
Cable | integrated cable |
Size | 158*144*167mm |
Weight | 4kg |
Mounted | wall, pole |
Wall bracket | SHJ-109B |

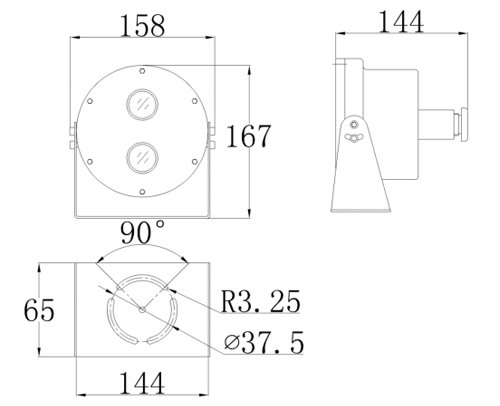

Drawing:(mm)
