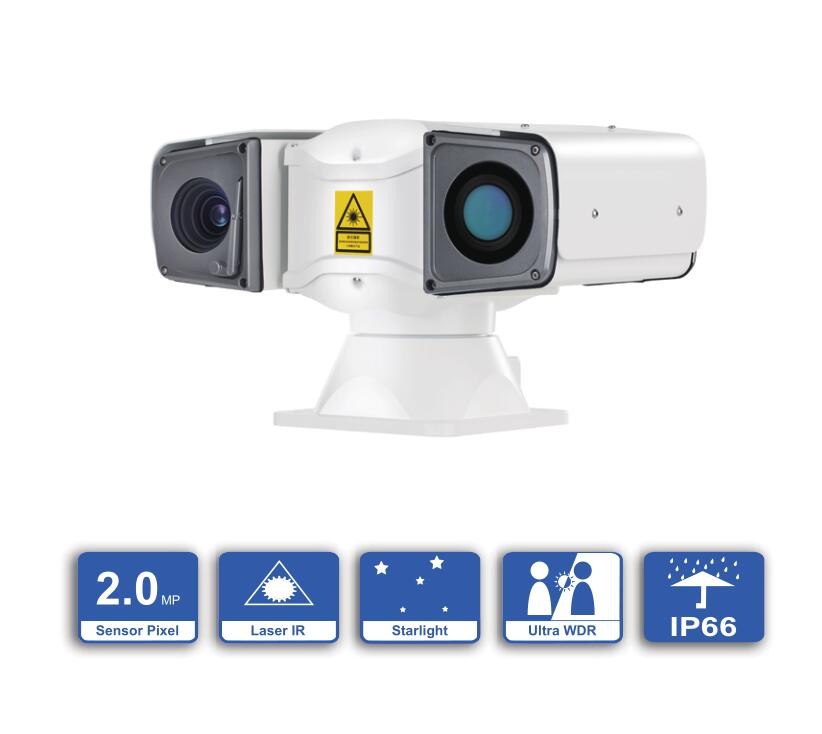

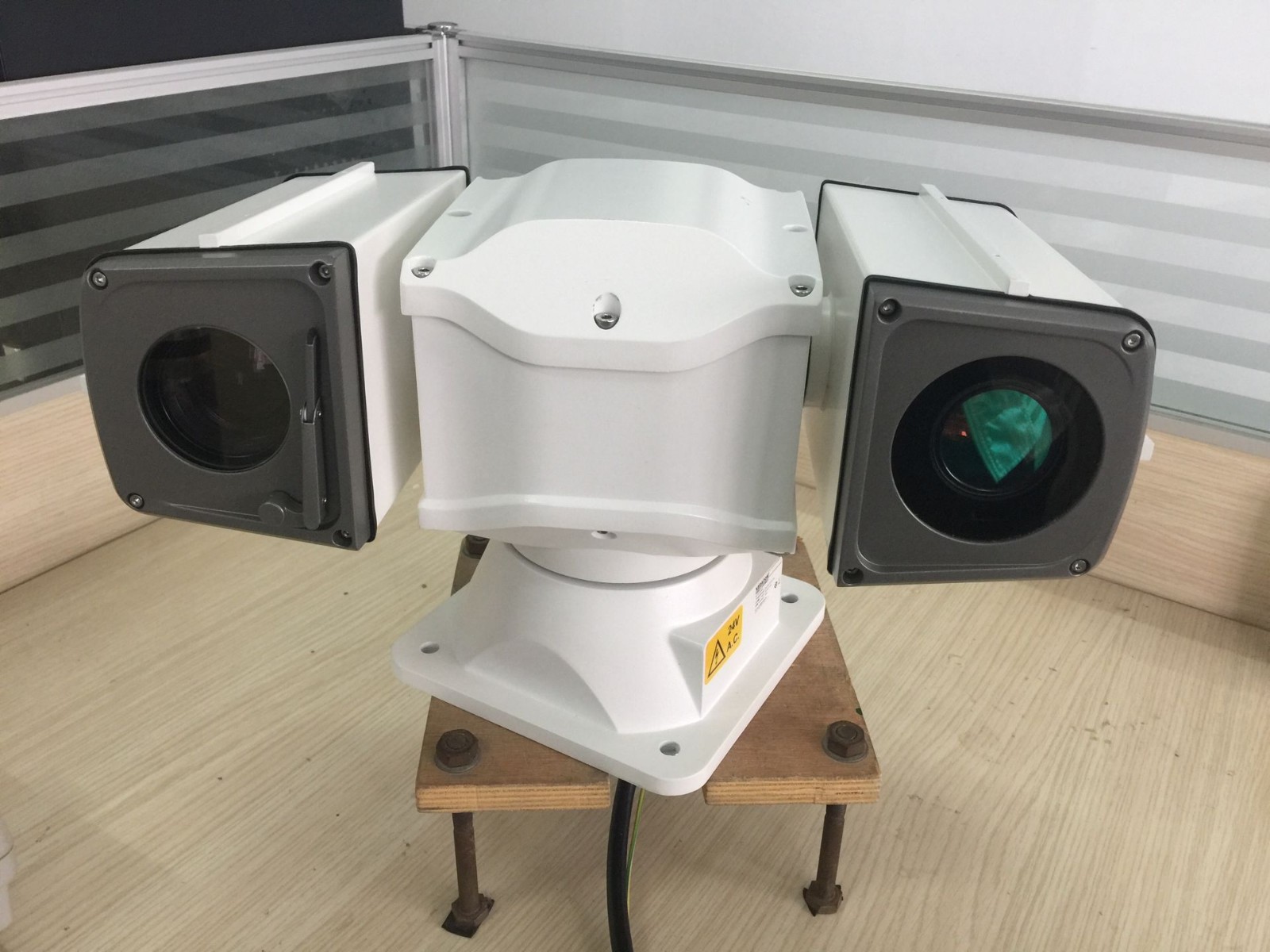

2.0MP HD 55x Network Laser PTZ Camera(SHJ-TW10-L55)
Features:
Excellent Image Quality
l 2.0 Megapixel 1/2.8’’ Progressive Scan CMOS Sensor
l High definition and smooth picture, 1080p@60fps
l H.265 video codec, saves up to 50% bandwidth and storage
l Ultra low illumination, 0.001lux with color picture
l 120dB Ultra WDR
l Laser automatically adjusts
l HLC / 3D noise reduction
Intelligent Functions
l Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object
left / Object removal / Gathering / Audio surge
Long Operation Lifespan
l Industrial components, withstands operation temperatures of -40°C ~ 70°C
l IP66, TVS 6000V lightning protection, surge protection and voltage transient protection
Large Scale
l 55x optical zoom
l Laser distance up to 1500m
Abundant Functions and Features
l SD card optional, supports Automatic Network Replenishment (ANR)
l Up to 3 video streams
l Bi-directional audio / alarm in and out / video out
l Wiper supported
Specifications:
Camera | |
Image Sensor | 1/2.8’’ Progressive Scan CMOS |
Pixels | 2.0 Megapixel |
Min. Illumination | Color: 0.001Lux @ (F1.2, AGC ON) |
B/W: 0.0001Lux @ (F1.2, AGC ON); 0Lux with IR | |
Shutter | Speed 1 ~ 1/30,000S |
Day / Night | Auto (ICR) / Color / B/W |
Wide Dynamic Range | Ultra WDR, >=120dB |
S/N Ratio | >55dB |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Backlight Compensation | Off / WDR / BLC / HLC |
Lens | |
Focal Length | 6.5 ~ 363mm, 55x optical |
Zoom Speed | Approx 4s (Optical) |
Angle of View | 43.8°~ 1° (Wide~Tele) |
Min. Object Distance | 300 ~ 1500mm (Wide~Tele) |
Max. Aperture Ratio | F1.6 (Wide) / F6.0 (Tele) |
Focus Control | Auto / Manual / Semi-Automatic |
Laser | |
Laser Distance | 1500m |
Laser Intensity | Automatically adjust according to zoom ratio |
Pan and Tilt | |
Pan / Tilt Range | 360° Endless / - 85° ~ 85° (Auto Flip) |
Pan / Tilt Speed | Pan manual speed: 0.1° ~ 120°/s; Pan preset speed: 120°/s |
Tilt manual speed: 0.1° ~ 30°/s; Tilt preset speed: 100°/s | |
Proportional Zoom | Pan / Tilt speed can be adjusted automatically according to zoom multiples |
Preset | 256 |
Patrol | 8 Patrols scheme, up to 32 presets per patrol |
Pattern Scan | 4 Scan paths, each path can record 10 minutes of operation path |
Power-off Memory | Power-off memory / Power-on recovery |
Auto Guard | Path / Preset / Pan scan |
PT Limit | Manual / Scan / Pan |
3D Positioning | PTZ control with mouse click and drag |
Wiper | Supported |
Wiper | Supported |
Video | |
Compression Format | H.265 / H.264 / MJPEG |
Image Resolution | Main stream: 1080p |
Secondary stream: D1 | |
Frame Rate | Main stream: 1080p@60fps |
Secondary stream: D1@30fps | |
Bitrate | 32kbps ~ 16Mbps |
Bitrate Control | VBR / CBR |
Multi stream | Supported |
Caption | Date and time / Alarm / Direction / Customized |
Privacy Masking | Up to 4 zones |
Motion Detection | Up to 4 zones |
Video Freeze | Supported |
ROI | Supported |
Digital Noise Reduction | 3D noise reduction |
Digital Defog | Supported |
Image Flip | Flip / Mirror |
Audio | |
Compression | G.711a / G.711u / ADPCM / G.722 / AAC-LC / G.722.1c / G.726 |
Bitrate | 32kbps ~ 64kbps |
Audio Function | Bi-directional audio / AEC / Mixed audio recording / Dumb / Mute |
Network | |
Network Protocols | TCP/IP, UDP, HTTP, DHCP, DNS/DDNS, RTP/RTCP, RTSP, PPPoE, FTP, VSIP, UPnP, 802.1x, NAT, QoS, SMTP, IPv4, IPv6 (optional) |
User Interface | IPC Control (IE, Firefox, Chrome) |
Max. User Access | Max. 10 Users (include 2 internal) |
Application Programming | ONVIF (Profile S, Profile G), GB/T 28181-2011, API, CGI |
Automatic Network Replenishment (ANR) | Supports |
Alarm | |
Alarm Triggers | Alarm input / Network disconnect / Disk full / Disk error |
Intelligent | Motion detection / Tampering / Guard line / Enter guard area / Exit guard area / Object left / Object removal / Gathering / Audio surge |
Alarm Events | Alarm report / Recording / Text overlay / Snapshot / External output / Email notice / Acoustic alarm |

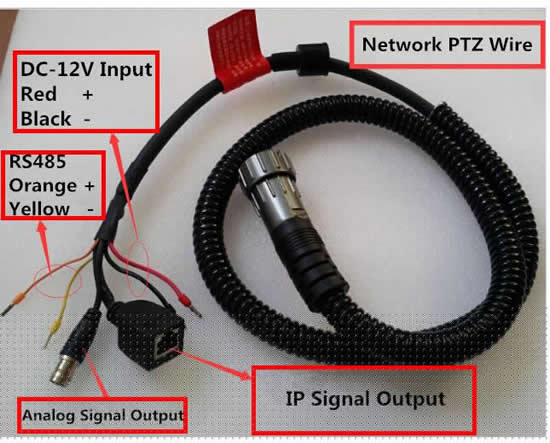

Interfaces | |
Ethernet | 10/100M, RJ45 interface |
Audio In / Out | 1 x Line in / 1 x Line out |
Alarm In / Out | 1 x Input / 1 x Output |
Video Out | 1 x BNC, 1.0V [p-p] / 75Ω |
Memory Slot | Built-in Micro SD card (optional), up to 128GB |
Environmental | |
Operating Temperature | -40°C ~ 70°C / -40°F ~ 158°F |
Operating Humidity | 10% ~ 95% |
Protection Level | IP66, TVS 6000V lightning protection, surge protection and voltage transient protection |
Electrical | |
Power | 24V AC / 3A (Power adapter included) |
Power Consumption | Max. 70W (Laser on) |
Mechanical | |
Weight | 10kg / 22lb (Gross Weight) |
Dimensions | 404 × 222.6 × 243.5mm / 15.9’’ x 8.76’’ x 9.59’’ |

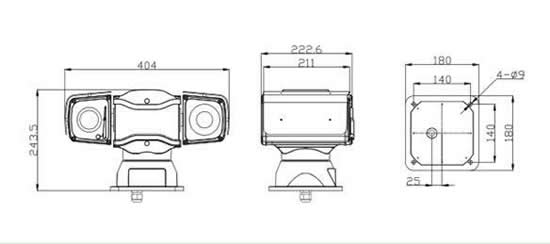

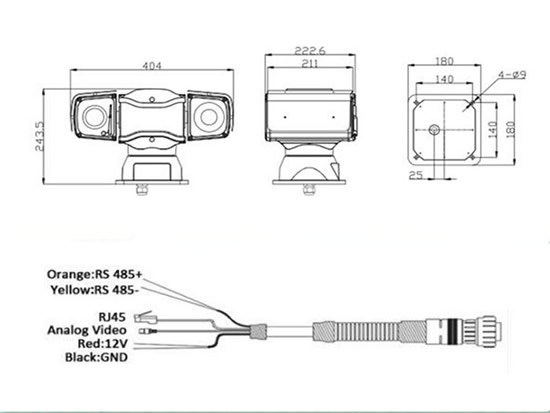

Dimensions:(mm)
