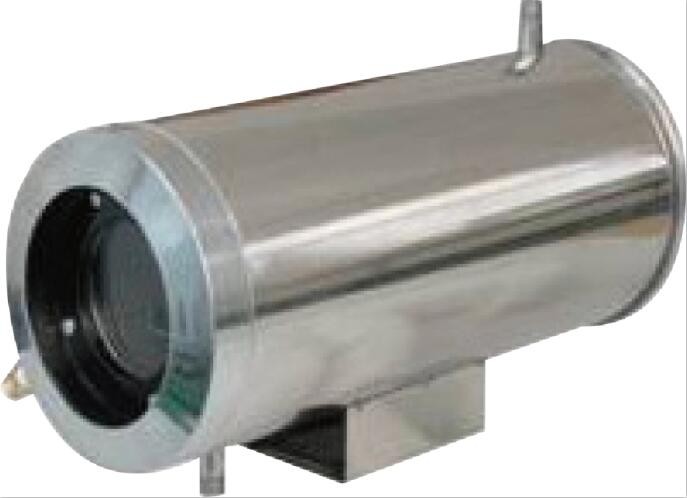

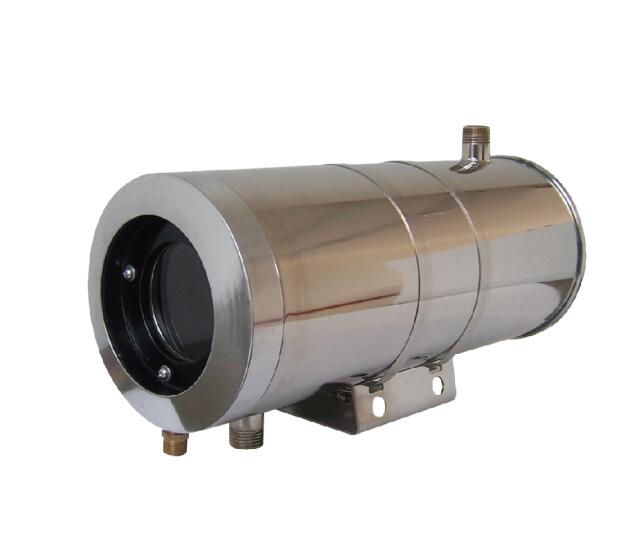

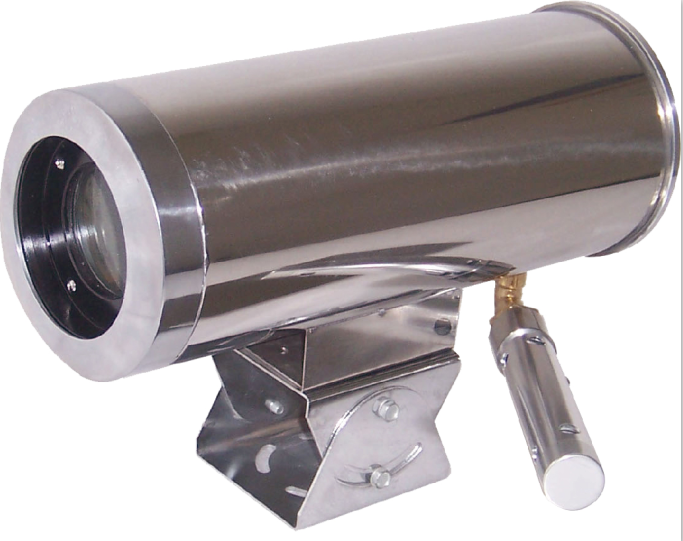

Middle Size Explosion-proof Housing Fixed Camera(Suit install integration camera)
Model: SHJ-BAH-100
Product Features:
1. Atmospheric Pressure: 80KPa ~ 106KPa
2. Atmospheric temperature: -25ºC ~ +60ºC
3. Relative humility: < 95%(+25ºC)
4. Enclosure protection: IP66
5. Ex-proof Marking ExdIICT6(H2)
6. Material: 316L Double stainless steel (marine environments chlorine tanker)
7. Double 304 stainless steel (acid-based chemical outdoor environments)
8. 45 # carbon steel surface treatment (the environment does not support the use of corrosion-resistant)
9. Support fixed-focus or zoom camera and 1080P HD Camera
10. Rugged steel window plate glass, glass with nano self-cleaning function
Technical Parameter:
Model | SHJ-BAH-100 |
Certificate specification | |
Manufacture standard | GB3836.1-2010、GB3836.2-2010 GB12476.1-2013、GB12476.5-2013 |
Structure mode | The front end is covered with epoxy resin, and the rear cover is made of flameproof |
Explosion-proof mode | ExdⅡCT6 Gb,ExtD A21 IP68 T80℃ |
Protect grade | IP68 |
Operation temperature(℃) | -45-60 |
In cable interface | 2pcs G3/4” explosion-proof in cable interface |
Mechanical parameter | |
Material | Stainless steel（304/316/316L） |
View glass size | Φ67 |
Dimension(L×W×H) mm | 365X163X170 |
Inside housing dimension(mm) | 260mmX80X 80/Φ108×260 |
Weight(Kg) | 4 |
Power supply | |
Voltage(V) | 24/110/220V AC |
Current(A) | 4/1/0.5A |
Others | |

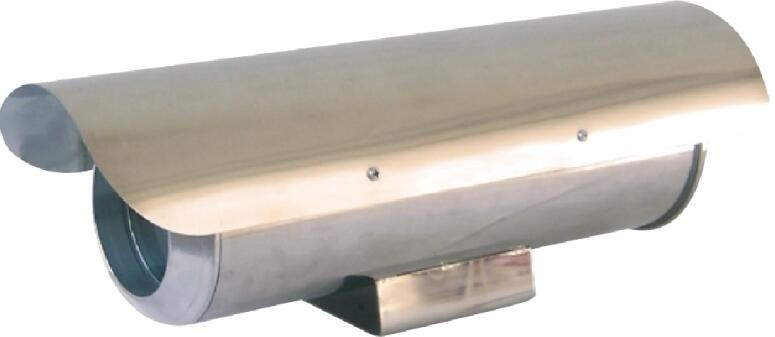

Optional | Sunshade, power module, inside housing heating |
