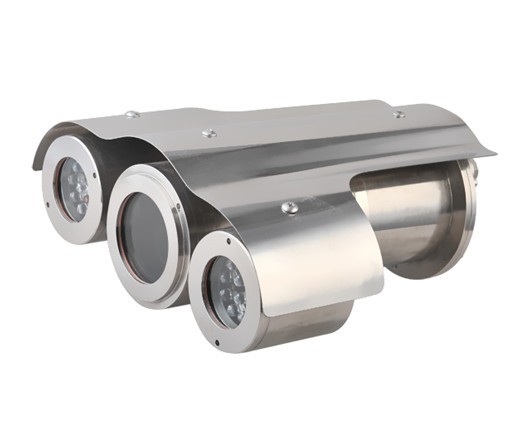

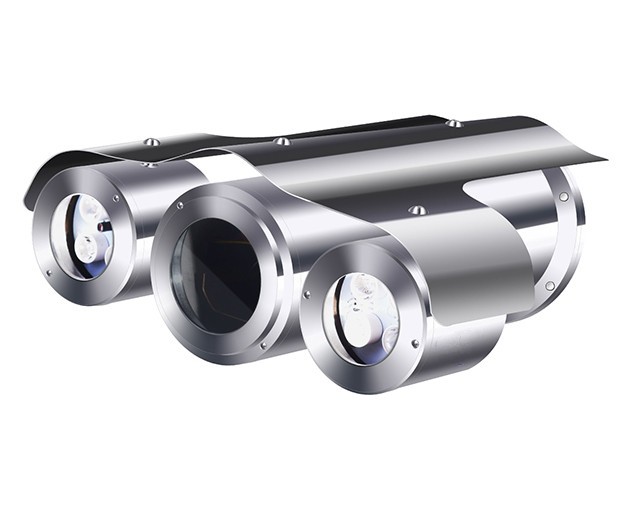

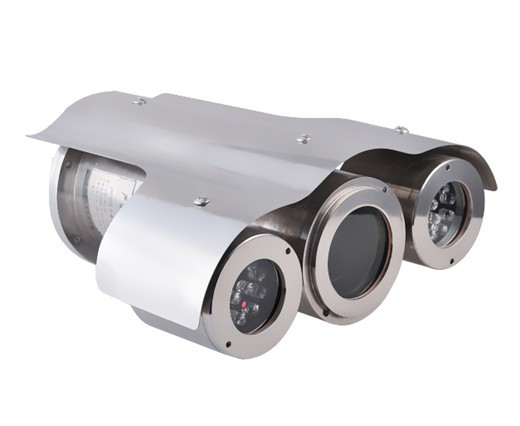

80m Night Vision Double Housing Infrared explosion proof camera
Model: SHJ-F1032
Product Introduction:
SHJ-F1032 is popular explosion proof camera housing, which has separated infrared lights for night vision. Since the infrared lights will not effect to get good surveillance image. THis explosion proof camera housing can load zoom camera, box camera
Certificate
Certificate Mark | ExdⅡC T6 Gb / Ext D A21 IP68 T80℃ |
Certificate No | CNEx16.0708 |
Standards | Q/320412ZAF032-2016 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 2pcs G3/4 or NPT3/4 |
Sun-shield | Yes |
Wiper | No |
Electrical
Voltage | AC85V～AC265V or DC24Vor AC24V |
Power | 15W/25W (with thermostat) |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Ambient
Ambient temperature | -25 to +60℃ / -45 to +80℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Lights
Lights | 30m infrared lights |
Lights Control | Support |
Communication
Communication | support analog video output |
485 Communication | Support Pelco-D, Pelco-P |
Communicate Rate | 2400 to 19200bps |
Camera
Image Sensor | 1/3" interline-transfer CCD |
Effective pixel | PAL 976*582 NTSC 976*494 |
Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
Day&Night | Auto ICR |
Horizontal resolution | 700TVL (color), 720TVL (B&W) |
S/N ratio | ＞50dB（AGC off） |
Lens
Focal Length | 4-92mm, 23X/or 36X optical |
Aperture Range | F1.5-F3.6 |
Angle of View | 49-2.2 degree(Wide-Tele) |
Min. Working Distance | 10mm-1500mm(Wide-Tele) |
Zoom Speed | Approx. 3s(Optical, Wide-Tele) |
Control
Camera address | on/off （0-254） |
Focus Mode | Auto/Manual/One touch |
Gain | off/ lower/ higher |
Slow shutter | X256 MAX |
White Balance | Auto white balance 1/auto white balance 2/Manual/auto |
Private | Off/ Mode 1/ Mode 2 |
Video | 3D DNR, mirror, brightness, Contrast, Sharpness adjustable |
Digital zoom | X16 |
Zoom display | on/off |
ZCF control mode | mode 1, mode 2 |
RS485 | protocol, baud rate, address |
General
Cable | integrated cable |
Size | 367*335*170mm |
Weight | 13.9kg |
Mounted | wall, pole |
Wall bracket | SHJ-Z100B |

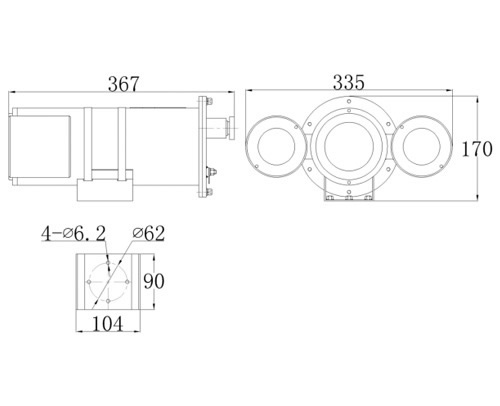

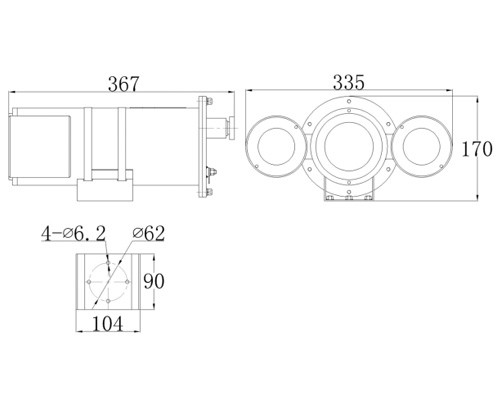

Drawing: (mm)
