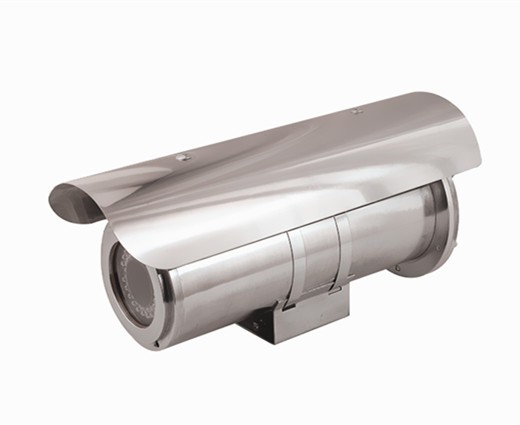

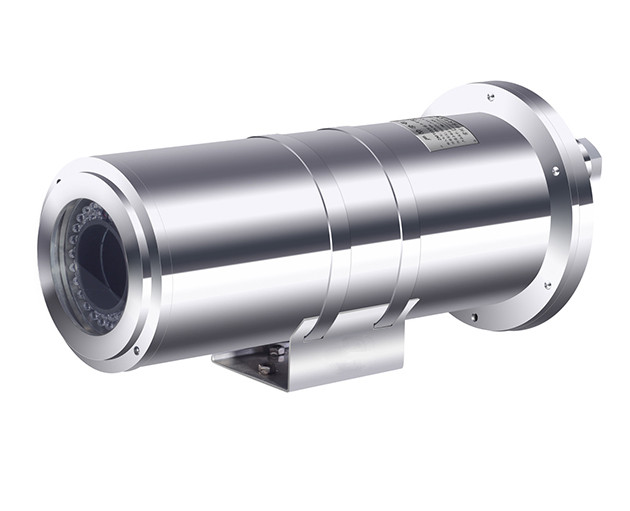

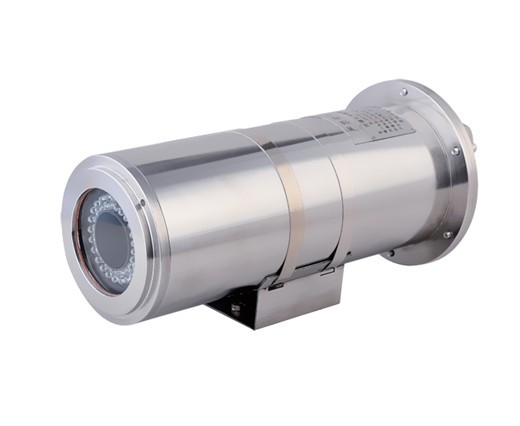

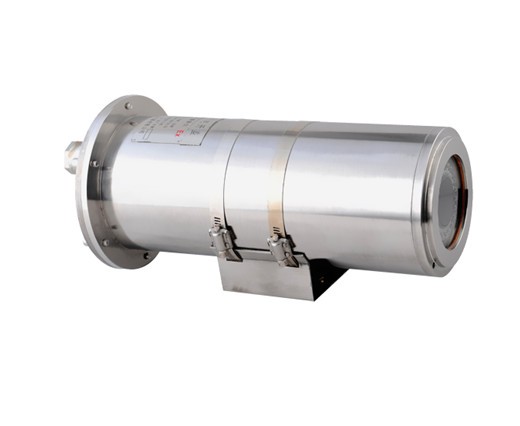

SHJ-F103 Explosion Proof Infrared Camera
Model: SHJ-F103
Product Introduction:
SHJ-F103 is an explosion proof camera housing with infrared lights. With LED infrared, its night vision distance can be 30 meters. SHJ-F103 explosion proof camera housing can load zoom camera, bullet camera and box camera.
Certificate
Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
Certificate No | CNEx13.2139 |
Standards | Q/320412ZAF008-2013 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 2pcs G3/4 or NPT3/4 |
Sun-shield | No |
Wiper | No |
Electrical
Voltage | AC85V～AC265V or DC24Vor AC24V |
Power | 15W/25W (with thermostat) |
Ambient
Ambient temperature | -25 to +60℃ / -45 to +80℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Lights
Lights | 30m infrared lights |
Lights Control | Support |
Communication
Communication | support analog video output |
485 Communication | Support Pelco-D, Pelco-P |
Communicate Rate | 2400 to 19200bps |
Camera
Image Sensor | 1/3" interline-transfer CCD |
Effective pixel | PAL 976*582 NTSC 976*494 |
Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
Day&Night | Auto ICR |
Horizontal resolution | 700TVL (color), 720TVL (B&W) |
S/N ratio | ＞50dB（AGC off） |
Lens
Focal Length | 4-92mm, 23X/or 36X optical |
Aperture Range | F1.5-F3.6 |
Angle of View | 49-2.2 degree(Wide-Tele) |
Min. Working Distance | 10mm-1500mm(Wide-Tele) |
Zoom Speed | Approx. 3s(Optical, Wide-Tele) |
Control
Camera address | on/off （0-254） |
Focus Mode | Auto/Manual/One touch |
Gain | off/ lower/ higher |
Slow shutter | X256 MAX |
White Balance | Auto white balance 1/auto white balance 2/Manual/auto |
Private | Off/ Mode 1/ Mode 2 |
Video | 3D DNR, mirror, brightness, Contrast, Sharpness adjustable |
Digital zoom | X16 |
Zoom display | on/off |
ZCF control mode | mode 1, mode 2 |
RS485 | protocol, baud rate, address |
General
Cable | integrated cable |
Size | 313*140*145mm |
Weight | 5.5kg |
Mounted | wall, pole |
Wall bracket | SHJ-Z100B |

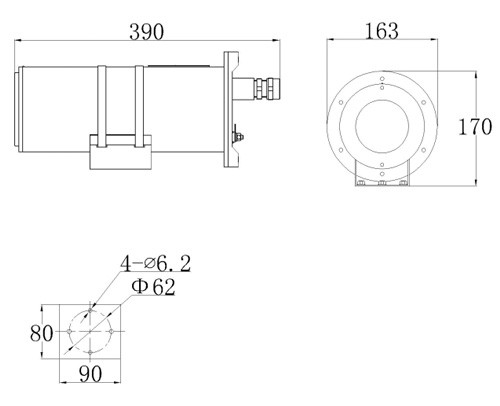

Drawing: (mm)
