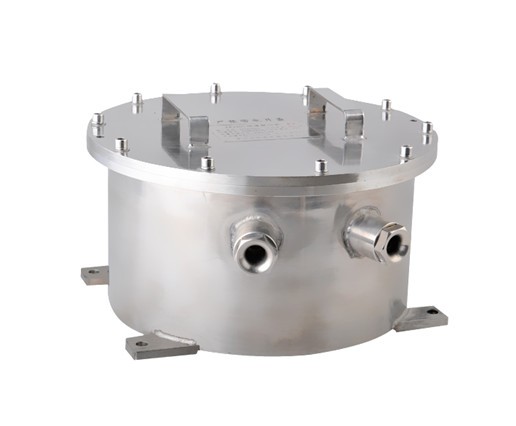

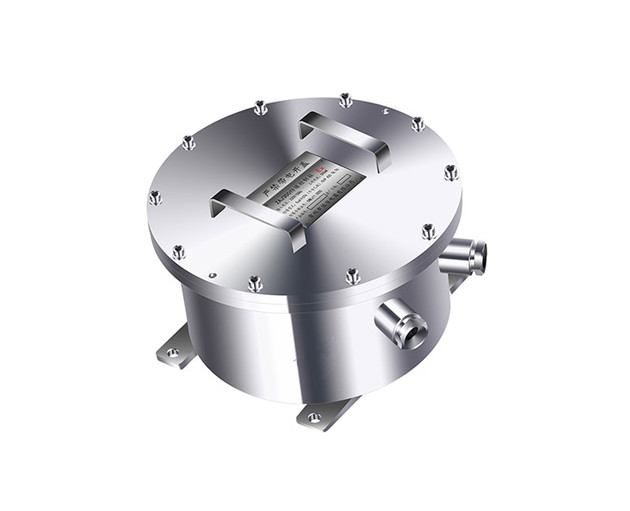

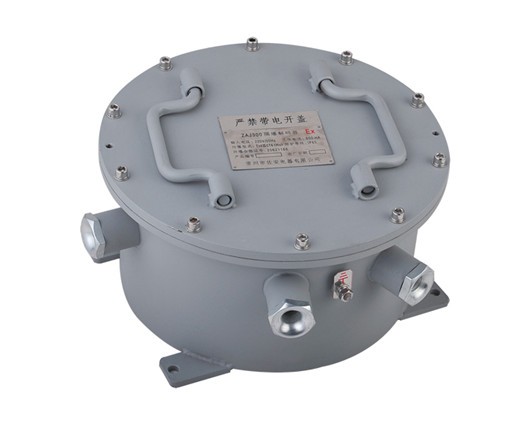

Explosion Proof Box
Model: SHJ-B300
Product Introduction:
1. Fit for gas zone 1, zone 2;
2. Fit for dust zone 21, 22;
3. IP68;
Certificate
Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
Certificate No | CNEx12.0005 |
Standards | Q/320412ZAF006-2011 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |

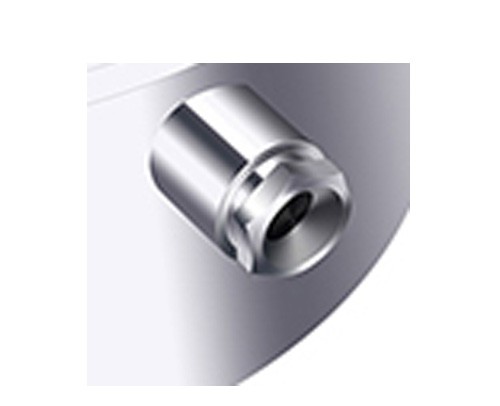

Cable thread hole | 4pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC85V～AC265V |
Current | ≦500mA |
Power | ≦50W |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Fiber distance | 25km |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
General
Overall size | Φ326*161mm |
Inner Size | Φ234*119mm |
Weight | 14.7kg |
