17 inch Explosion Proof Monitor
Model: SHJ-M400
Product Introduction:
1.Fit for gas zone 1, zone 2;
2.Fit for dust zone 21, 22;
3.IP66;
4.17inch display
Certificate
Certificate Mark | ExdⅡB T6 Gb / DIP A20 TA, T6 |
Certificate No | CNEx13.4246 |
Standards | Q/320412ZAF014-2013 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP66 |
Cable thread hole | 1pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC85V～AC265V or DC24Vor AC24V |
Power | 50W |
Surge Protect | Optional, TVS6000V surge protect |
Ambient
Ambient temperature | -25 to +60℃ / -45 to +80℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Function
Dot Pitch | 0.24825mm*0.24825mm |
Resolution | 1920*1080P |
Brightness | 300cd/m2 |
Contrast | 1000:01:00 |
Response Time | 14ms (G. To G) |
Color | 16.7M |
Line Frequency | 31.5-60KHz |
Field Frequency | 56-75Hz, Flick-free |
View Degree | Horizontal 176° |
Connector Port | VGA,or BNC, S-VHS, RGB, CVBS |
General
Cable | integrated cable |
Size | 473*200*396mm |
Weight | 28kg |
Mounted | desk |

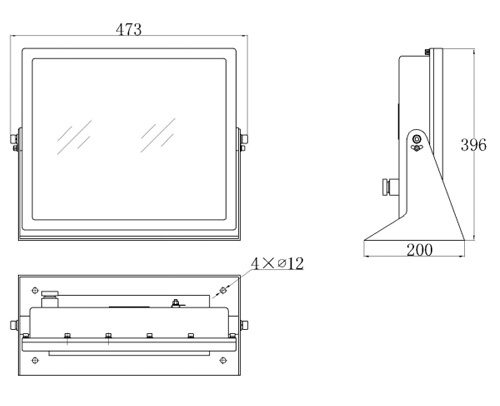

Drawing: (mm)
