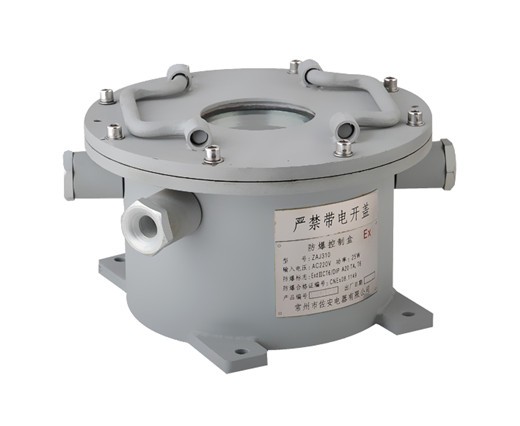

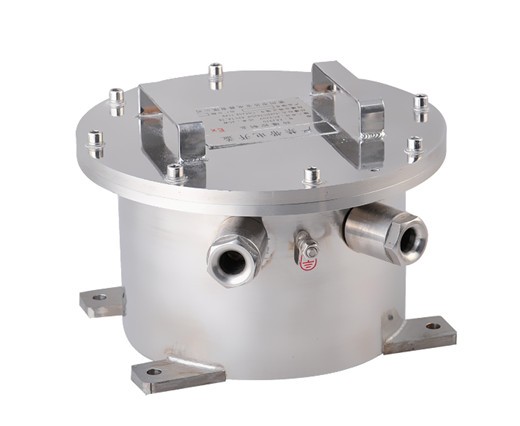

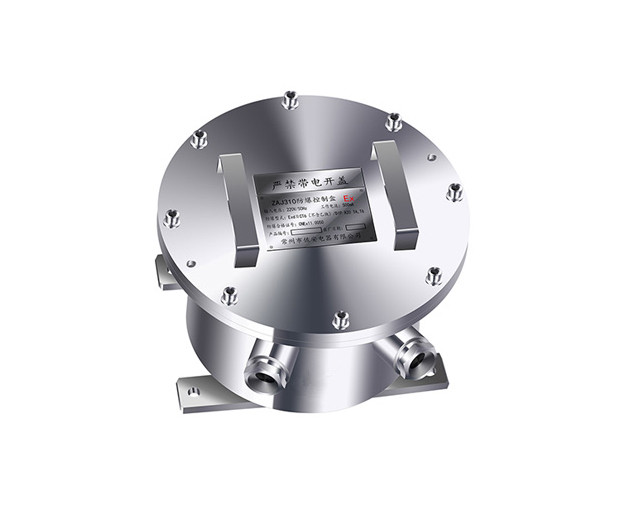

Explosion Proof Box
Model: SHJ-B310
Product Introduction:
1. Fit for gas zone 1, zone 2;
2. Fit for dust zone 21, 22;
3. IP68;
Certificate
Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
Certificate No | CNEx13.2137 |
Standards | Q/320412ZAF011-2013 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |

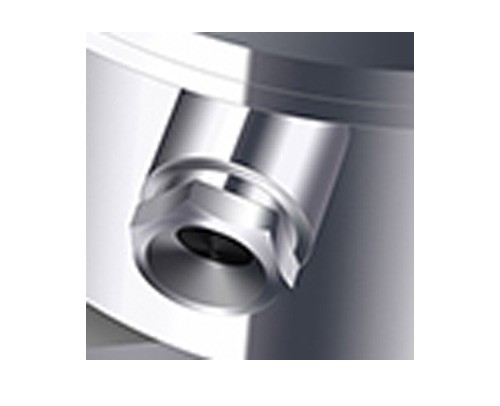

Cable thread hole | 4pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC85V～AC265V |
Current | ≦500mA |
Power | ≦50W |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Fiber distance | 25km |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
General
Overall size | Φ305*159mm |
Inner Size | Φ171*114mm |
Weight | 7.4kg |

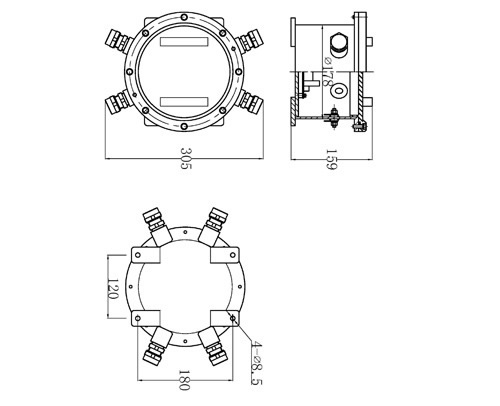

Drawing: (mm)
