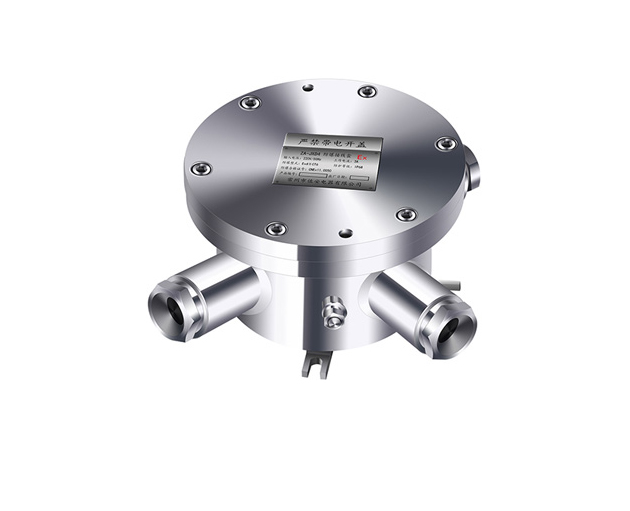

Explosion proof Junction Box
Model: SHJ-B370
Product Introduction:
1. Fit for gas zone 1, zone 2;
2. Fit for dust zone 21, 22;
3. IP68;
Certificate
Certificate Mark | ExdⅡCT6 Gb/ Ex tD A21 IP68 T80℃ |
Certificate No | CNEx16.1481 |
Standards | Q/320412ZAF030-2016 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 4pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC85V～AC265V |
Current | ≦3A |
Max connection port | 20pcs terminal block |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
General
Overall size | Φ187*84mm |
Inner Size | Φ100*75mm |
Weight | 3.5kg |

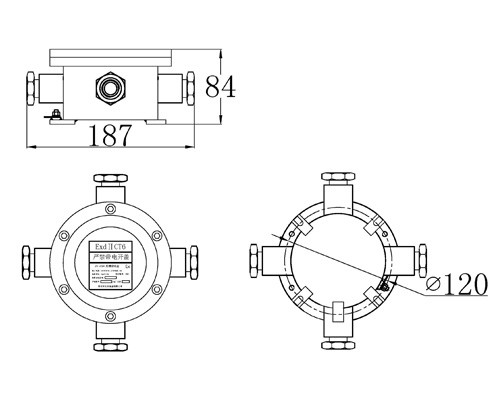

Drawing: (mm)
