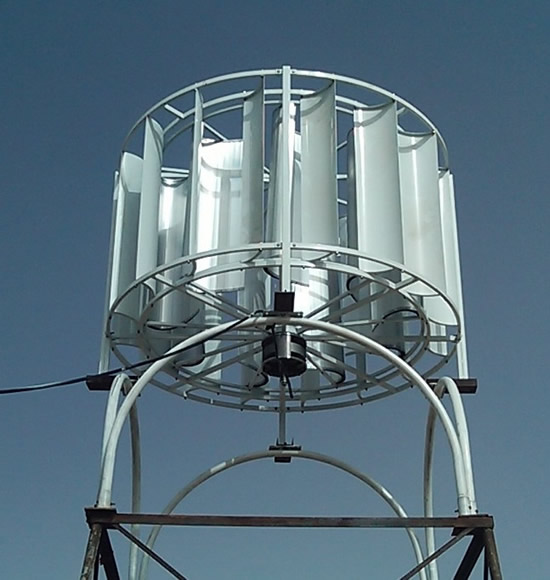

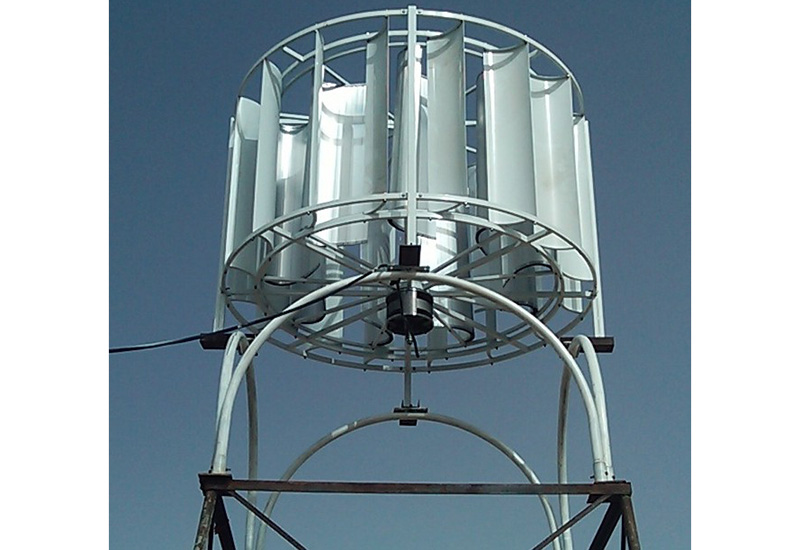

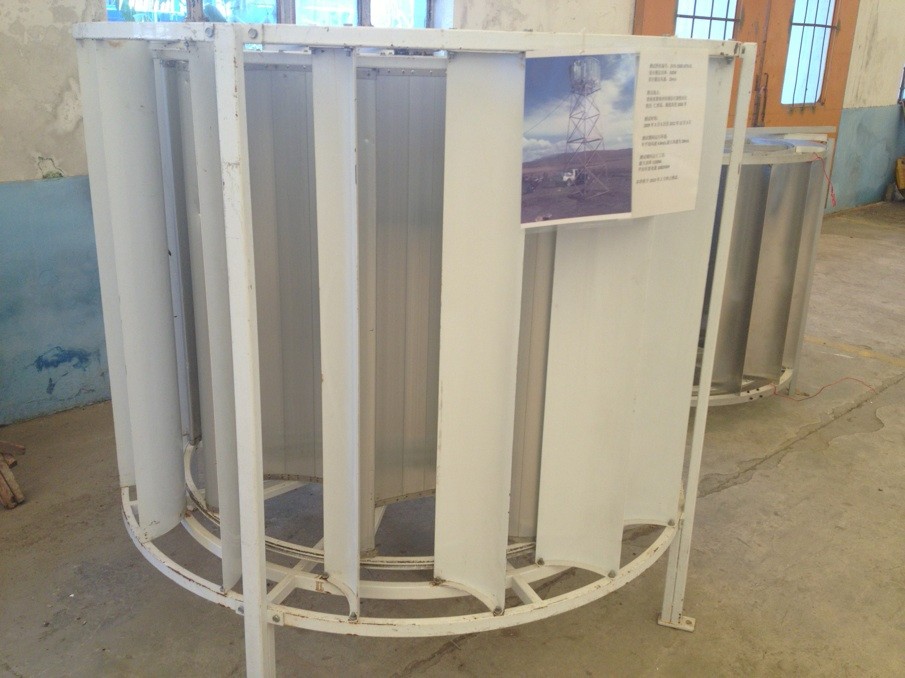

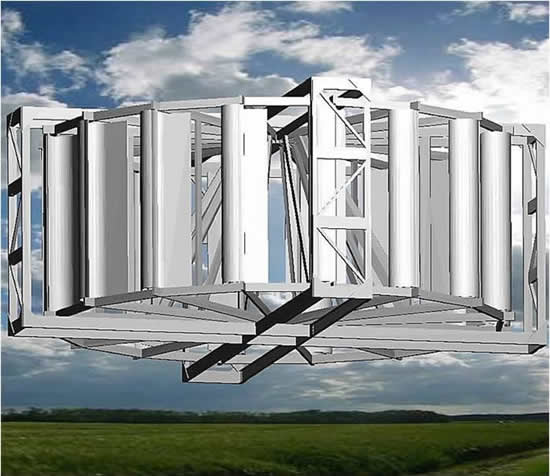

W-Type Vertical Axis Wind Turbine(1KW-20KW)
Production Presentation:
1. Capture wind from any direction, no limit on terrain, not be affected by turbulence
2. Low start up wind speed, low noise and vibration
3. PWM constant voltage recharge function provides stable output
4. Electronic brake and manual brake, optional.
5. Magnet material NdFeB (neodymium iron boron)

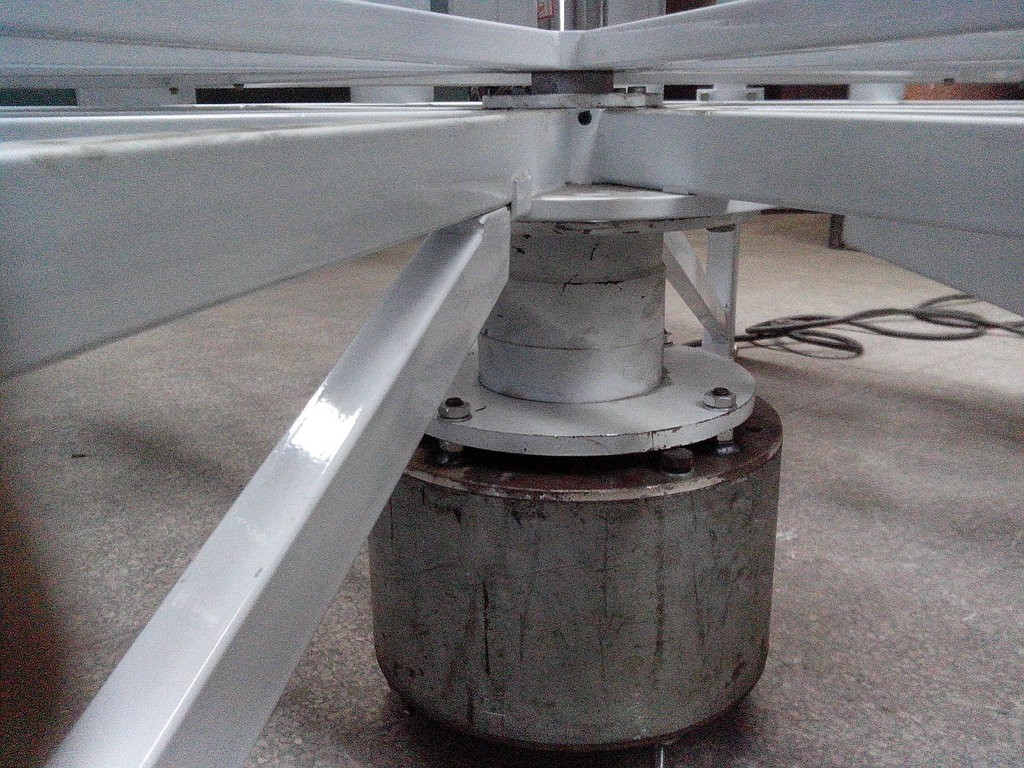

6. Generator with unique shockproof design, stable operation.

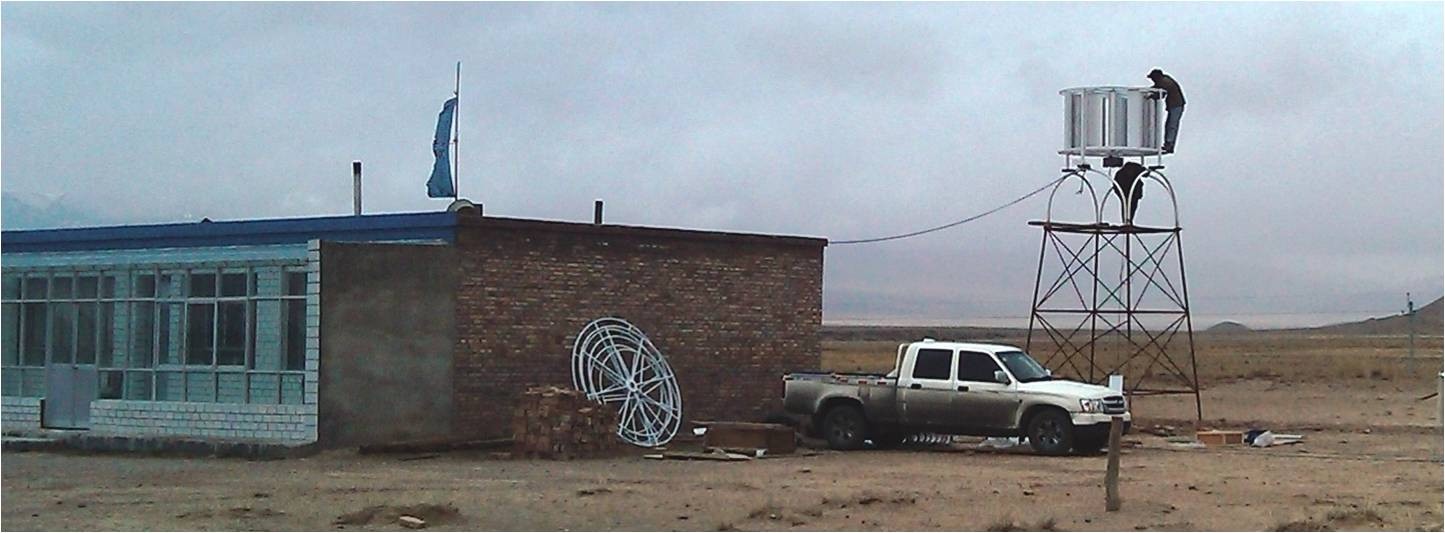

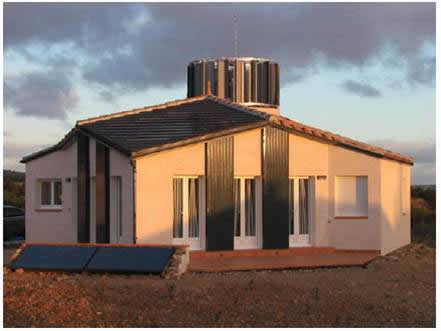

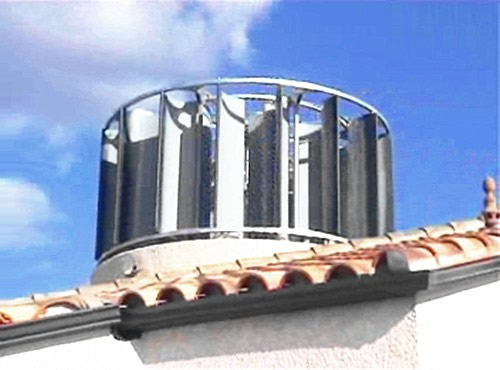

7. Application：Houses and Schools, Remote Communication Station, Vocational Villages, Monitoring Station, Water-pumping Station
Parameter Data:
Model | SHJ-NEW1000 | SHJ-NEW2000 | SHJ-NEW3000 | SHJ-NEW5000 | SHJ-NEW10K | SHJ-NEW20K |
Total Power | 1kw | 2kw | 3kw | 5kw | 10kw | 20kw |
Blade diameter | 2.5m | 3.2m | 4m | 5.2m | 7m | 9m |
Blade height | 2m | 2.6m | 3m | 4.5m | 5.2m | 9m |
Blades number | 6 | 6 | 8 | 8 | 12 | 16 |
Start up wind speed | 2m/s | 2m/s | 2m/s | 2m/s | 2.5m/s | 2.5m/s |
Rated power | 1kw | 2kw | 3kw | 5kw | 10kw | 20kw |
Max power | 1.2kw | 2.2kw | 3.5kw | 5.5kw | 12kw | 23kw |
Rated wind speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s |
Security wind speed | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s |
Rated rotated speed | 100r/min | 75r/min | 60r/min | 45r/min | 30r/min | 20r/min |
Rated Output voltage | 48v | 48v | 96v/120v | 120v/220v/240v | 360v | 360v |
Top weight except tower | 350kg | 600kg | 1050kg | 1900kg | 3200kg | 5400kg |
Blades material | Aluminum alloy | |||||
Generator type | 3 Phase AC PM Generator, Synchronous Type | |||||
Speed regulation | Auto against the wind | |||||
Noise Level | Lower Than 40db | |||||
Working temperature | -40°C - 80°C | |||||
Design life | 20 years | |||||
