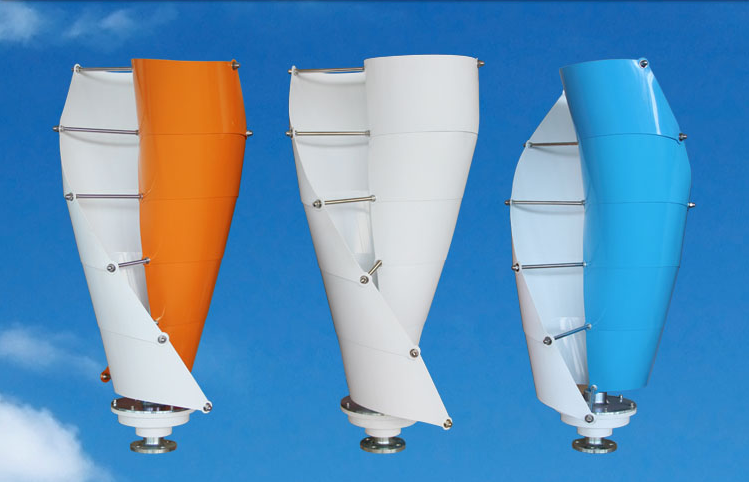

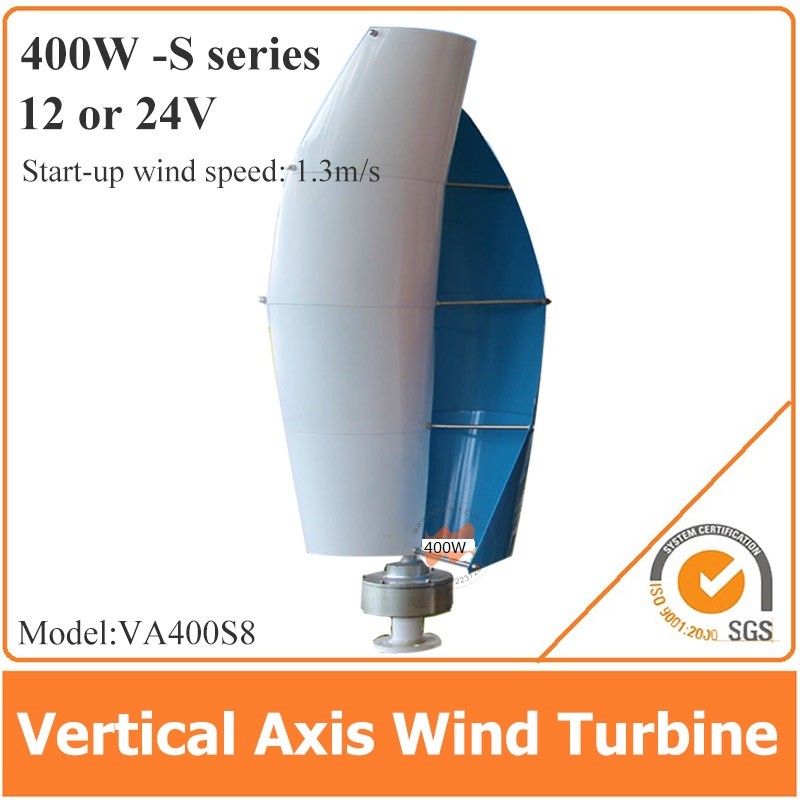

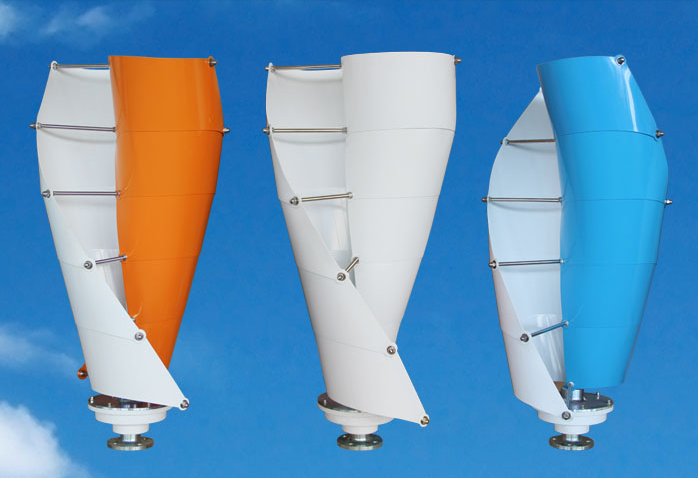

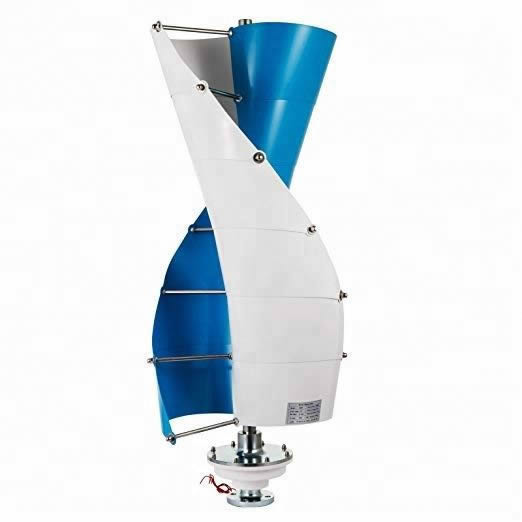

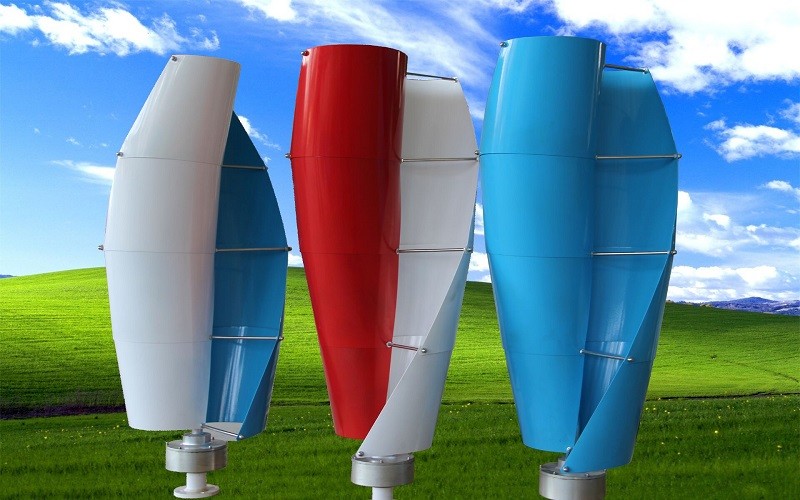

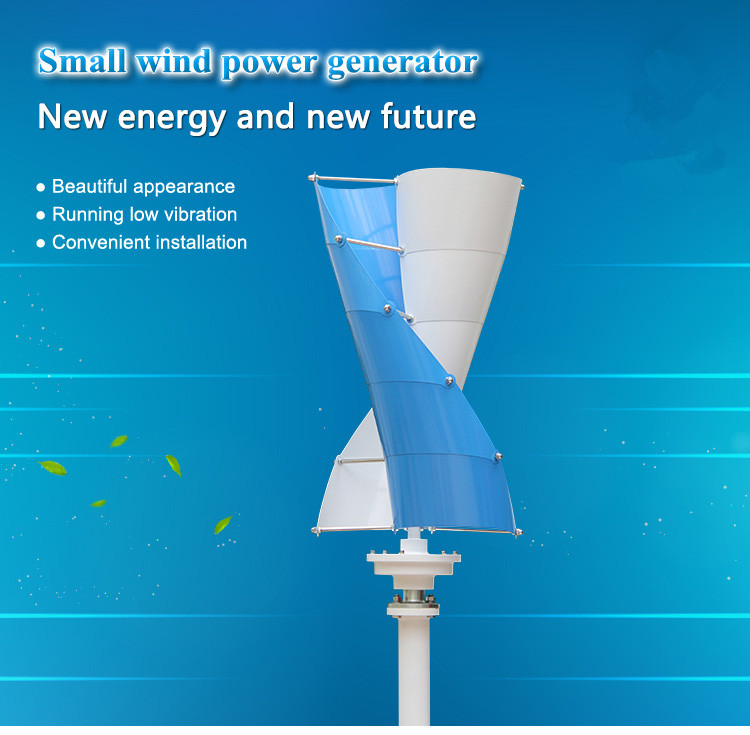

S-Type Vertical Axis Wind Turbine 100W-400W
Product Features:
Low start up speed;
Low torque

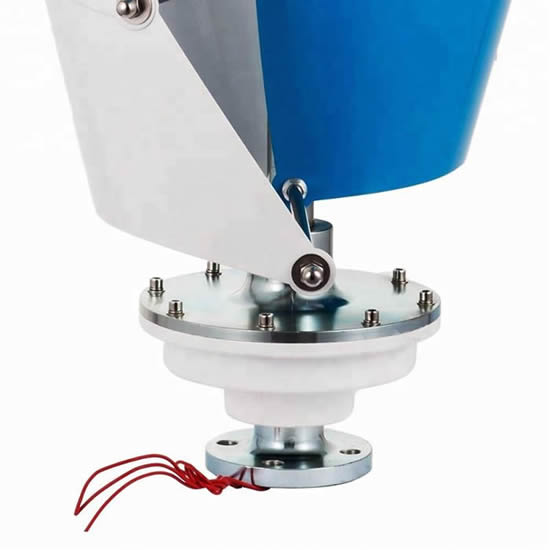

Gear-less, direct drive, low RPM generator.
For use in all environments
Excellent heat dissipation

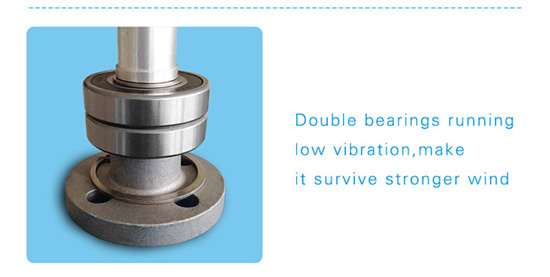

High quality bearing and magnet, easy to send out quantity of heat and keep magnetic property.
Designed for 20-year operation life.
Parameter Data:
Model | SHJ-NEV100S | SHJ-NEV200S | SHJ-NEV300S | SHJ-NEV400S |
Generator power | 100w | 200w | 300w | 400w |

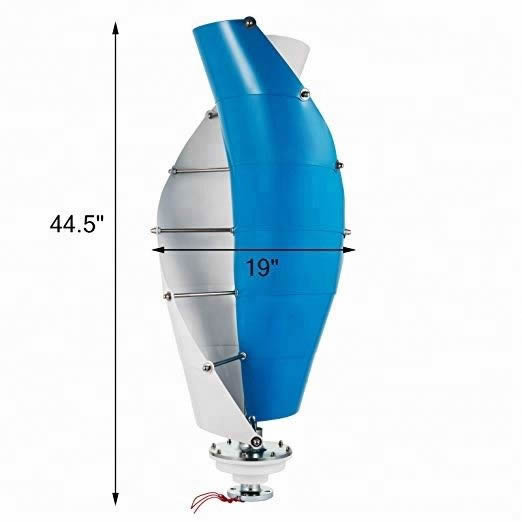

Wheel diameter | 0.46m | 0.5m | 0.63m | 0.63m |
turbine height | 0.82m | 0.92m | 1.35m | 1.35m |

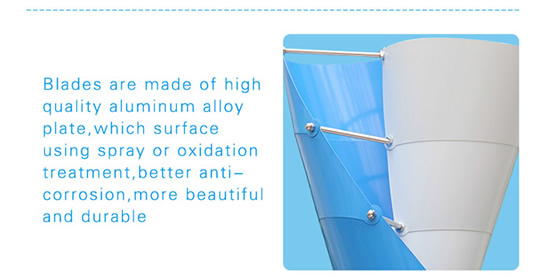

Blades material | Casting aluminum alloy | |||
Number of blades | 10 | 10 | 8 | 8 |
Rated wind speed | 11m/s | 11m/s | 11m/s | 11m/s |
Start-up wind turbine | 1.5m/s | 1.5m/s | 1.5m/s | 1.5m/s |
Survival wind turbine | 45m/s | 45m/s | 45m/s | 45m/s |
Output voltage from controller | 12v/24VDC | 12v/24VDC | 12v/24 VDC | 12v/24VDC |
Net Weight | 9.4kg | 10kg | 20.5kg | 21kg |

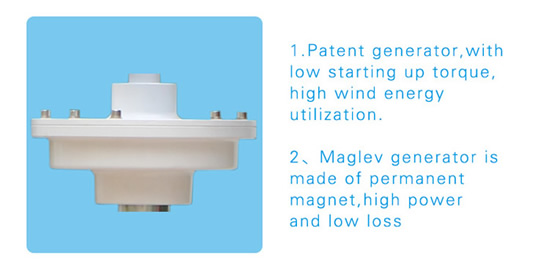

Generator type | Maglev generator | Maglev generator | ||
Control system | Electromagnet | |||
Speed regulation | Automatically adjust windward direction | |||
Lubrication way | Lubrication grease | |||
Working temperature | From -40℃ to 80℃ | |||
