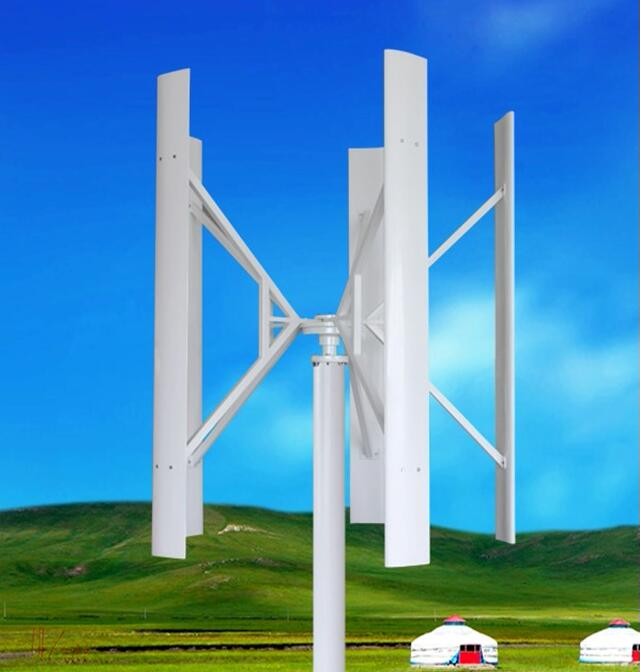

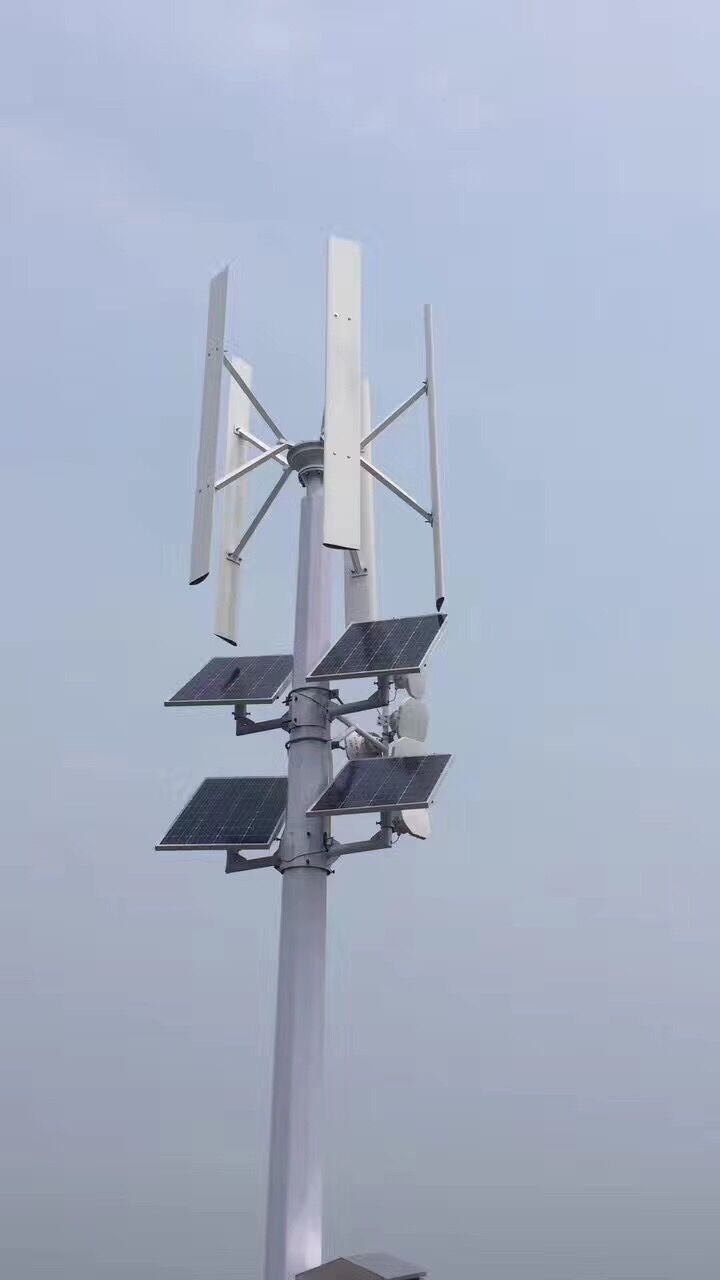

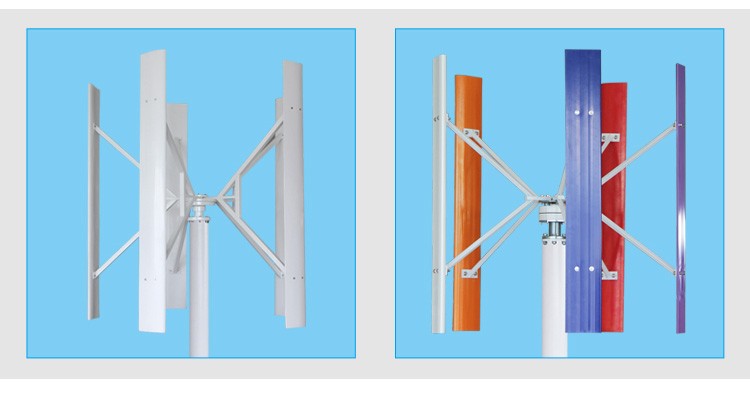

H-Type Vertical Axis Wind turbine 1KW-10KW
Product advantages:
1.Low start up speed, high wind energy utilization.

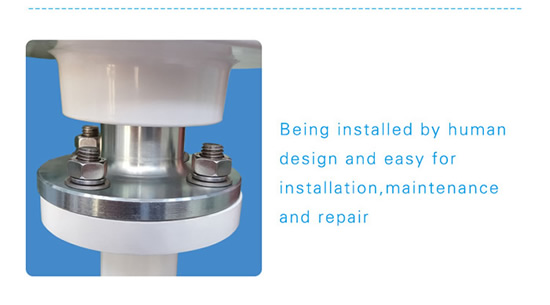

2.Easy installation, tube or flange connection optional.
3.Blades using new art of precision injection molding , matched with optimized
aerodynamic shape and structure,which enhance the wind energy utilization and
annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger
wind and run more safely.

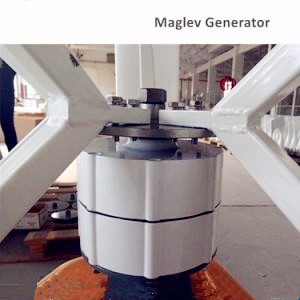

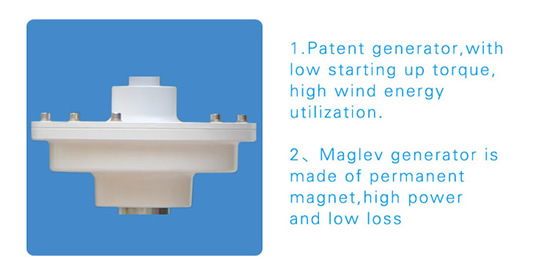

5.Patented permanent magnet ac generator with special stator,effectively reduce torque,
well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller, inverter can be matched according to customers’ specific needs.
Prameter Data:
Model | SHJ-VH1000 |
Rated power | 1kw |
Maximum power | 1200w |
Rated voltage | 48v/96v AC or as your request |
Start-up wind speed | 2.5m/s |
Rated wind speed | 12.5m/s |
security wind speed | 35m/s |
Wheel diameter | 2.2m |
Blade height | 2.4m |
Number of blades | 5 |

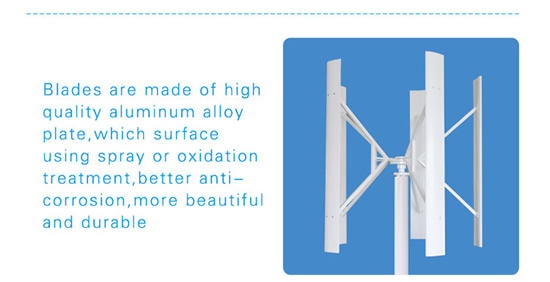

Blades material | Aluminum alloy |
Generator type | Maglev generator |
Generator case | Casting aluminum alloy |
Control system | Electromagnet |
Working temperature | -40°C - 80°C |
Design life | 20 year |
Certificates | CE, ISO14001, ISO 9001,TUV |
Model | SHJ-VH2000 |
Rated power | 2kw |
Maximum power | 2200w |
Rated voltage | 96v AC or as your request |
Start-up wind speed | 2.5m/s |
Rated wind speed | 12.5m/s |
security wind speed | 35m/s |
Wheel diameter | 2.3m |
Blade height | 3.0m |
Number of blades | 5 |
Blades material | Aluminum alloy |
Generator type | Maglev generator |
Generator case | Casting aluminum alloy |
Control system | Electromagnet |
Working temperature | -40°C - 80°C |
Design life | 20 year |
Certificates | CE, ISO14001, ISO 9001,TUV |
Model | SHJ-VH3000 |
Rated power | 3kw |
Maximum power | 3500w |
Rated voltage | 96v/120v AC or as your request |
Start-up wind speed | 2.5m/s |
Rated wind speed | 12.5m/s |
security wind speed | 35m/s |
Wheel diameter | 2.85m |
Blade height | 3.0/3.5m |
Number of blades | 5 |
Blades material | Aluminum alloy |
Generator type | Maglev generator |
Generator case | Casting aluminum alloy |
Control system | Electromagnet |
Working temperature | -40°C - 80°C |
Design life | 20 year |
Certificates | CE, ISO14001, ISO 9001,TUV |
Model | SHJ-VH5K |
Rated power | 5kw |
Maximum power | 5500w |
Rated voltage | 120v/220v AC or as your request |
Start-up wind speed | 2.5m/s |
Rated wind speed | 12.5m/s |
security wind speed | 35m/s |
Wheel diameter | 3.6m |
Blade height | 4.5/4.0m |
Number of blades | 5 |
Blades material | Aluminum alloy |
Generator type | Maglev generator |
Generator case | Casting aluminum alloy |
Control system | Electromagnet |
Working temperature | -40°C - 80°C |
Design life | 20 year |
Certificates | CE, ISO14001, ISO 9001,TUV |
Model | SHJ-VH10K |
Rated power | 10kw |
Maximum power | 12w |
Rated voltage | 220v AC or as your request |
Start-up wind speed | 2.5m/s |
Rated wind speed | 12.5m/s |
security wind speed | 35m/s |
Blade height | 6m |
Number of blades | 5 |
Blades material | Aluminum alloy |
Generator type | Maglev generator |
Generator case | Casting aluminum alloy |
Control system | Electromagnet |
Working temperature | -40°C - 80°C |
Design life | 20 y |
Certificates | CE, ISO14001, ISO 9001,TUV |
