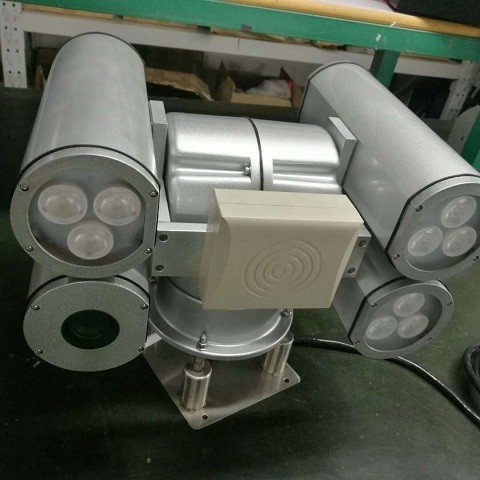

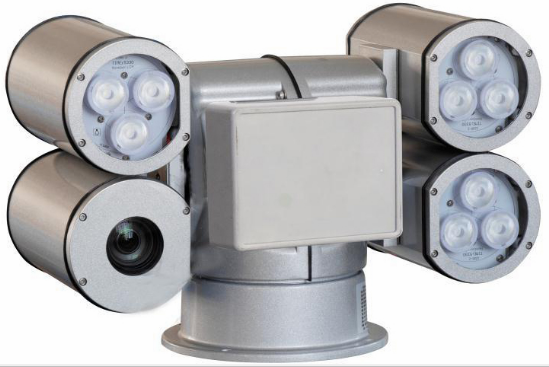

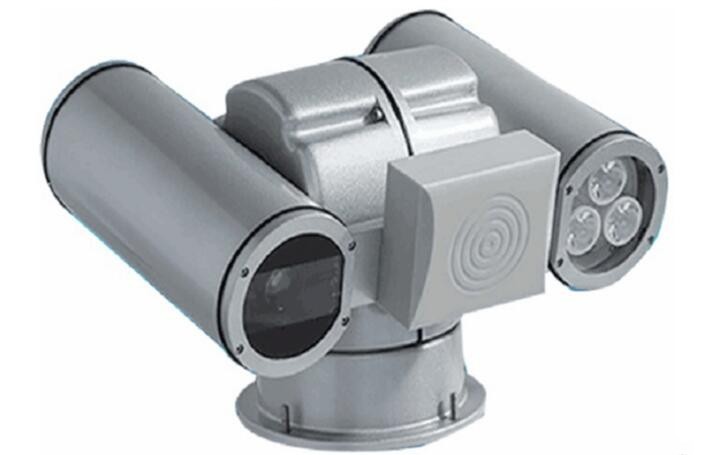

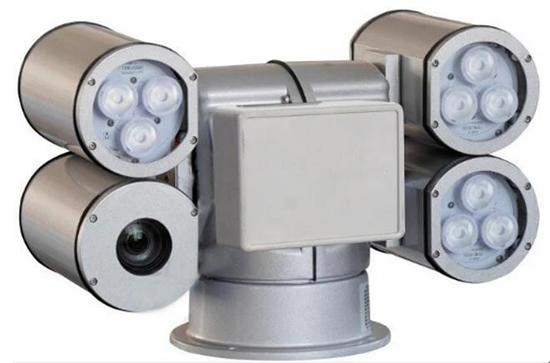

Highway Monitoring HD Intelligent Radar Speed Detection PTZ Camera
MODEL: (SHJ-R2000LS)
1.1. Radar
1) Size: 115×96×45 (mm)
2) Frequency: 24GHz
3) Speed detection range: 5-250km/h
4) velocity error: ≤1 km/h
5) Capture rate: >99%
6) Trigger position: ±1m
7) Detection direction: approach, away, or both
8) Operating temperature: -40ºC~70ºC
9) Input voltage: 12VDC
10) Power consumption:<2.5W
11) Interface: RS485/RS232
1.2. Camera
* 7 million pixels 1" progressive CCD with a maximum resolution of 3392*2008 and
up to 25 frames
* Dual shutter support, support for simultaneous output of video streams and
captured pictures: video monitoring and capturing at the same time
* Supports dual-streaming, adopts advanced video compression technology H.264
encoding, high compression ratio, and very flexible processing,. Supports MJPEG
encoding, capture picture encoding format : JPEG. And picture quality can be set
* Support flash auto light controlling, synchronous flash output and capture, up to 3
flash sync output, a variety of fill light modes: independent flash, no flash, associated
flash, wheel flash and strobe......
Multiple ways of capturing:
1. Optocoupler isolation input ordinary coil snap
2. optocoupler isolated input coil speed capture
3. RS-485 trigger capture
4. Video detection capture
5. .IO trigger capture
Intelligent identification:
1. Built-in license plate recognition function
2. Built-in vehicle recognition function
3. Built-in car body color recognition function
4. Built-in pressure line, retrograde, red light, non-guided driving and other violation
detection
Support continuous capturing of breaking traffic rule
Picture synthesis function, can combine multiple pictures of breaking-traffic-rule
into one picture, and the synthesis method is flexible
External device access:
Support RS-485 and can connect with serial port peripheral equipment such as car
detector, traffic light signal detector and radar.
Camera Specifications:
1. Video and Snapshot Independent Control of Auto Exposure, AGC and White
Balance
2. Separate configuration of character overlays for video and snap pictures
3. Signal synchronization control
* Support SD/SDHC local picture storage retrieval, automatic coverage, automatic
upload
* Powerfule network function, support multiple pictures upload FTP
* Traffic statistics
1.3. Digital flash fill light:
All-weather environment design, high-strength aluminum alloy shell, impact
resistance, corrosion resistance;
IP66;
Can connect with 485 device
Power: DC12V±10%
Current: :≥2.5 A
Flux: 3200lm
Color temperature: 5600K
Flashing time: ≥3 millions times
Opertating temperature: -30ºC~55ºC
Size: 105*283mm
1.5. Software
Fuction:
Unidirectional/ Bidirectional speed measurement: same direction, opposite direction,
bidirectional speeding vehicle automatic capture function;
Speed limited of big/small cars respectively: car license plate can be automatically
recognized and the speed of the car is discriminated;
Wireless transmission: support WIFI, capture pictures be transmised via network to
the center server and the camera sends photos to PC via WIFI;
Capture rate: >99%;
Work with: Winxp/vista/7/8/10
1.6. Application drawing

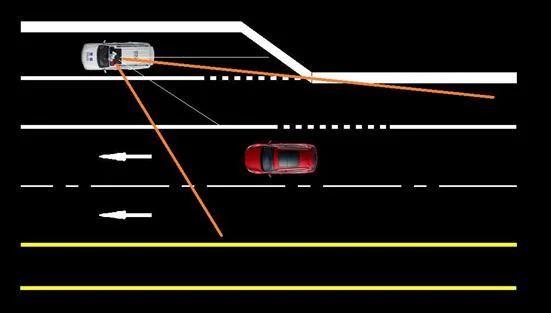

The orange line in the above image is the camera shooting area. The white line is the
angle between the centerline of the camera and the lane. The best capture angle
between the camera and the lane is from 20 to 30 degrees.
Standard Accessories:

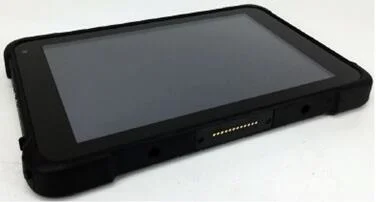

1) Anti-explostion tablet to be used with the radar ptz camera:

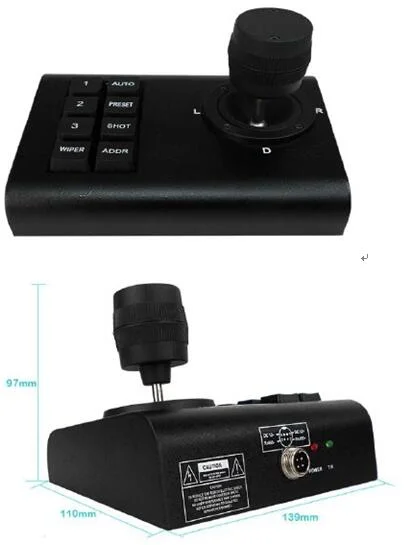

2) Controller (you also can control PTZ via browser from tablet):

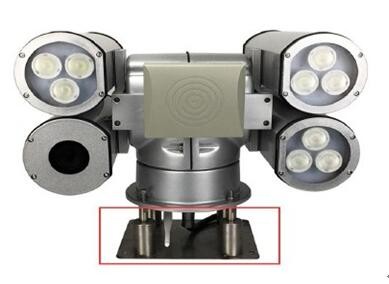

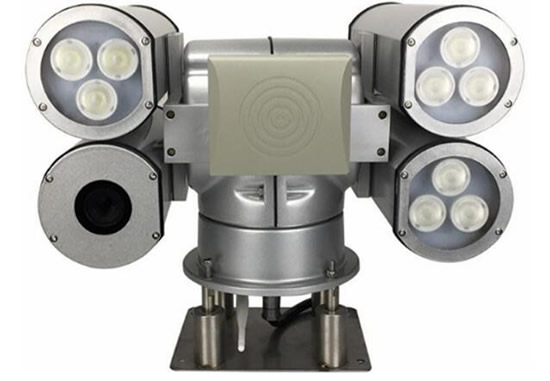

3) Shock absorber mounting base:

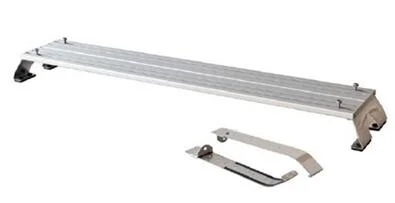

4) Mounting bracket:

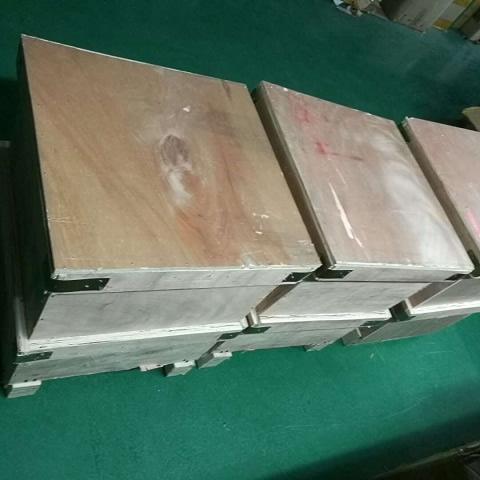

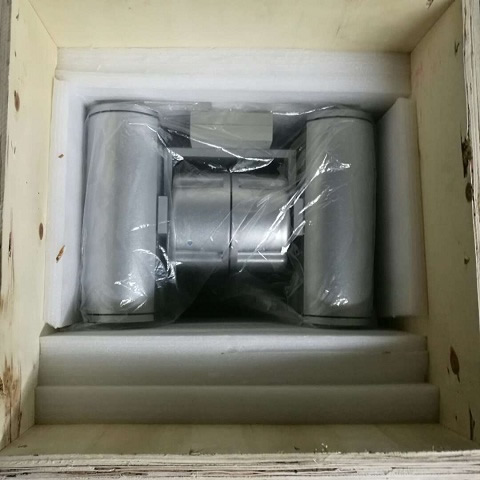

Packing:
Size and weight:
Net weight: 13KG
Gross weight with wood carton: 32KG
Carton size: 520*520*590mm
