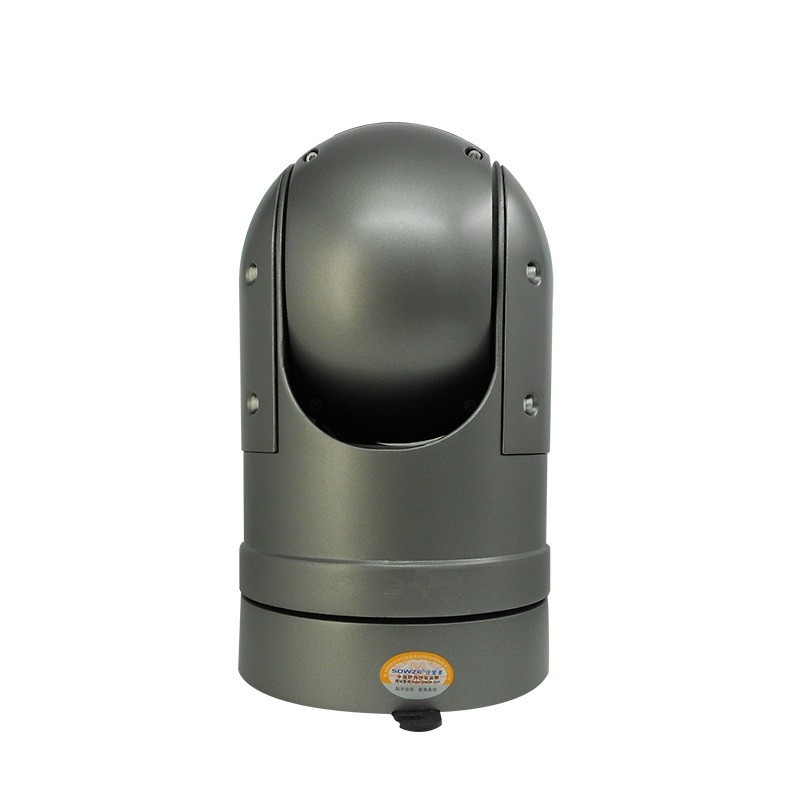

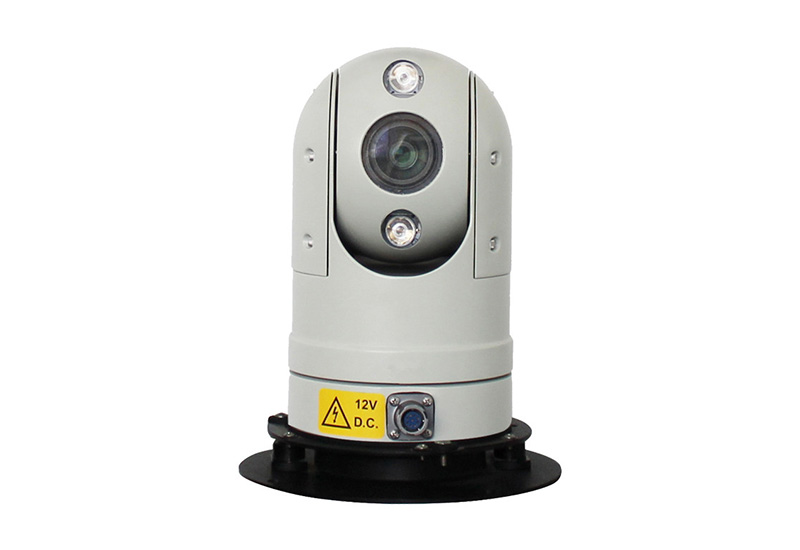

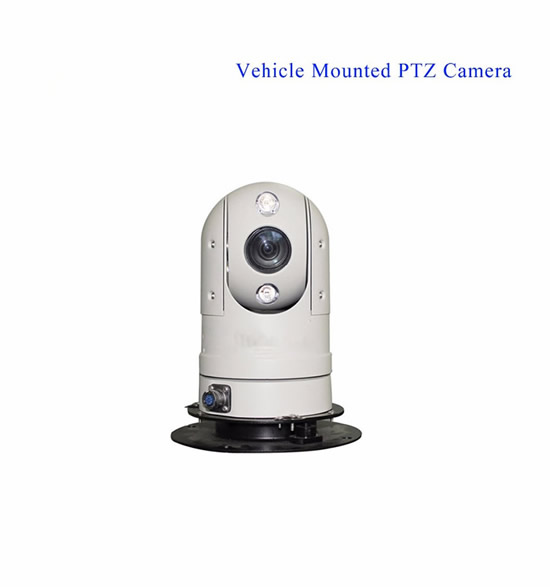

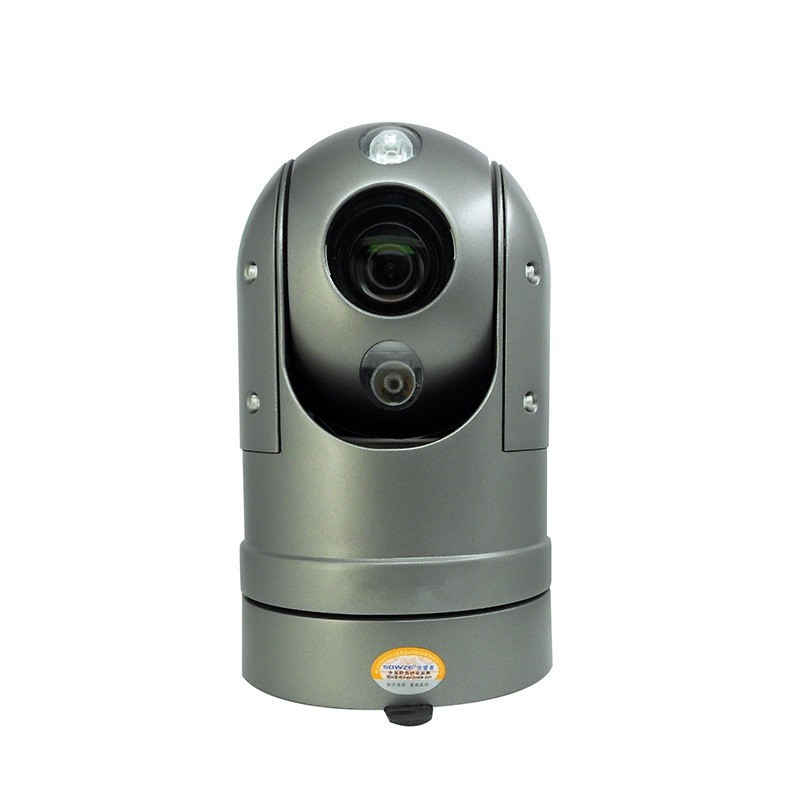

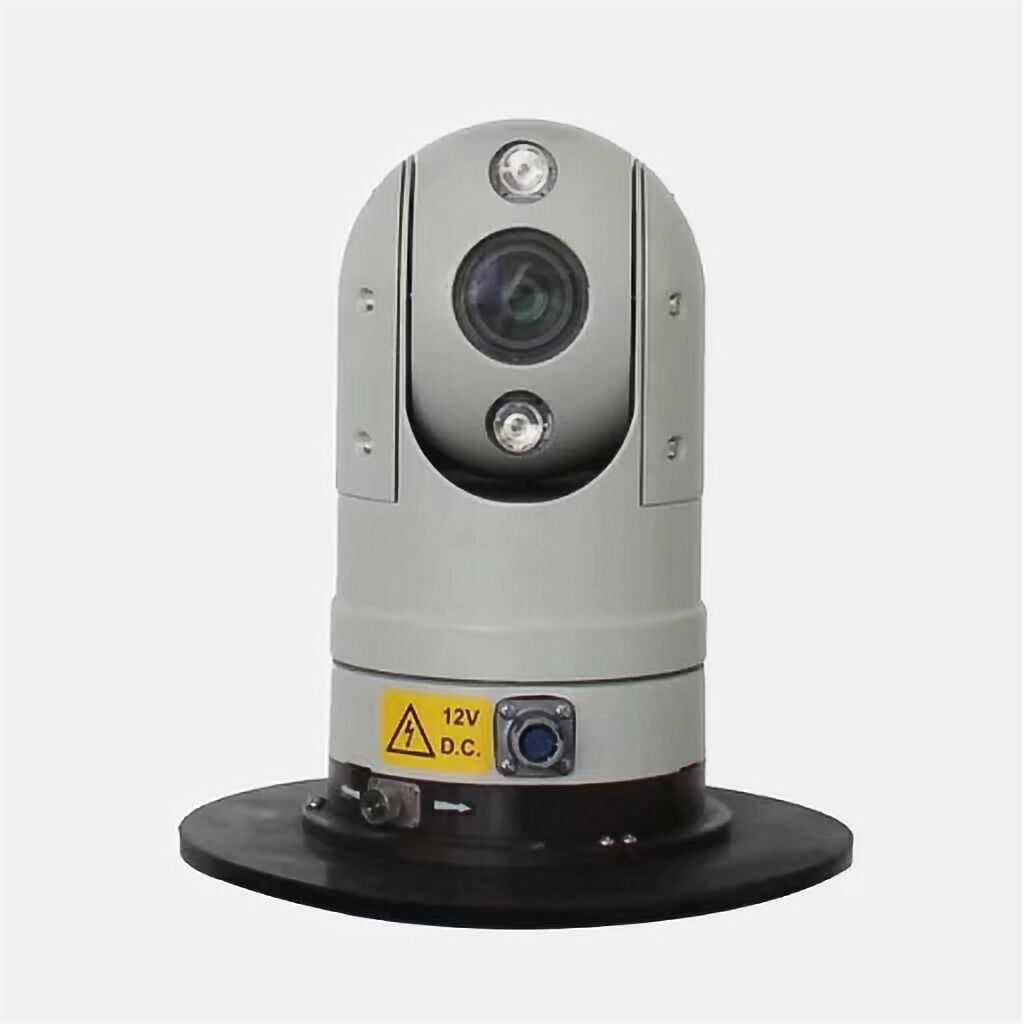

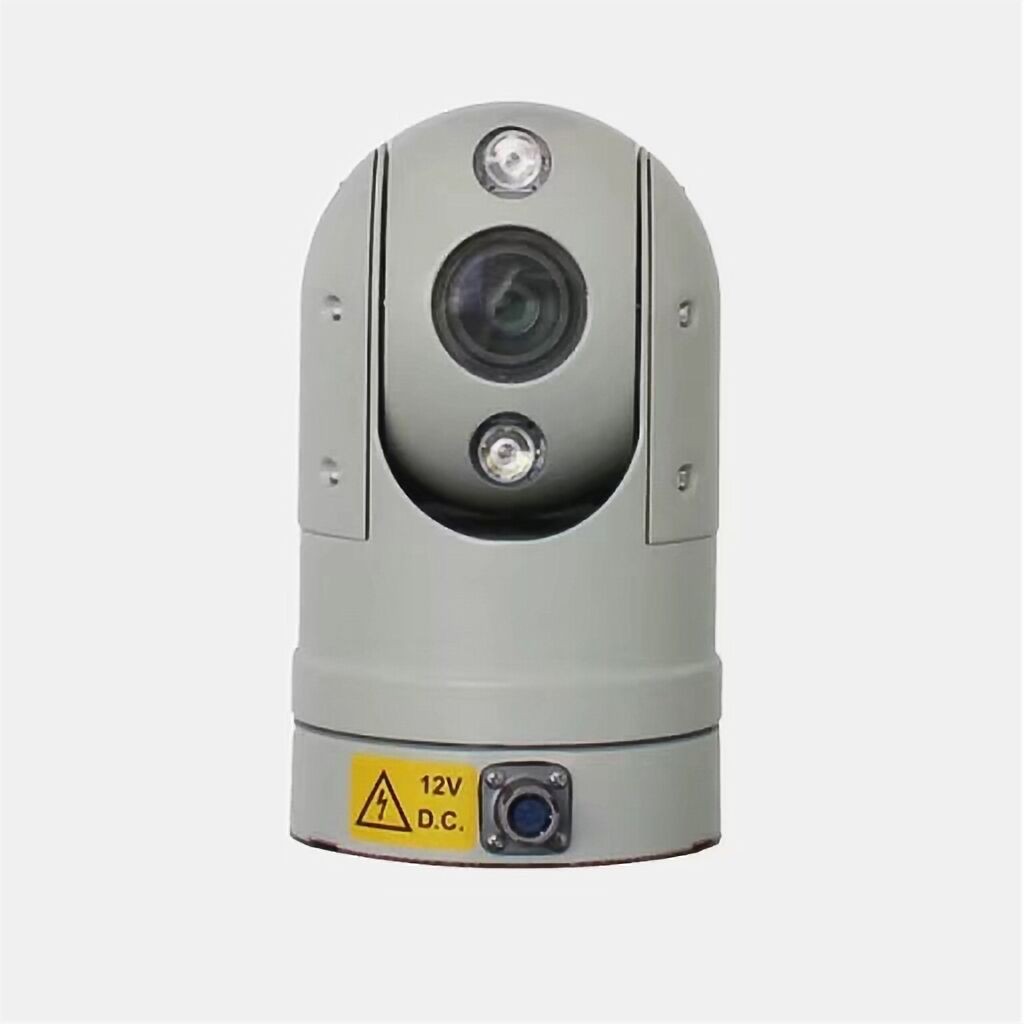

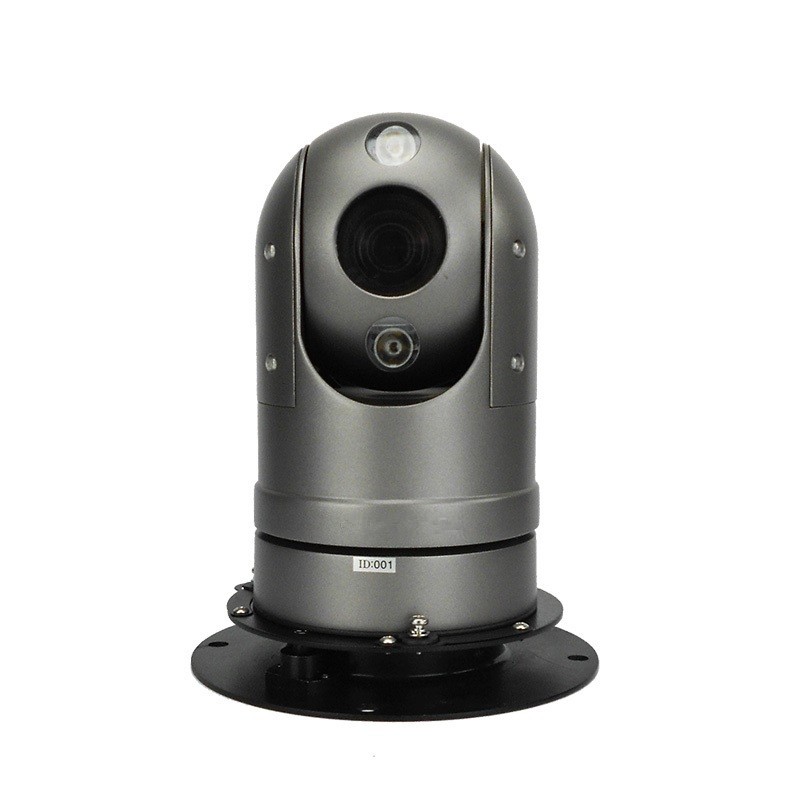

100m Night Vision Portable Mini IR PTZ Camera
Product Name:
Portable Mini Array Infrared PTZ camera
Model:
SHJ-HLC-A-IR
SHJ-HLC-HD-IR
SHJ-HLC-SDI-IR
SHJ-HLC-AHD(CVI/TVI)-IR
Features：

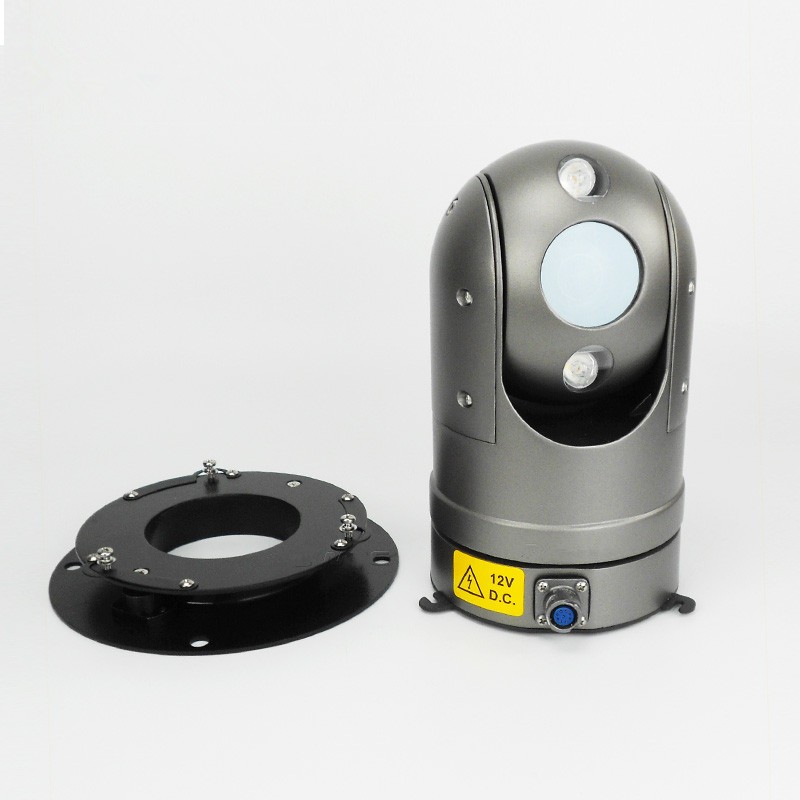

● PTZ has a variety of installation methods

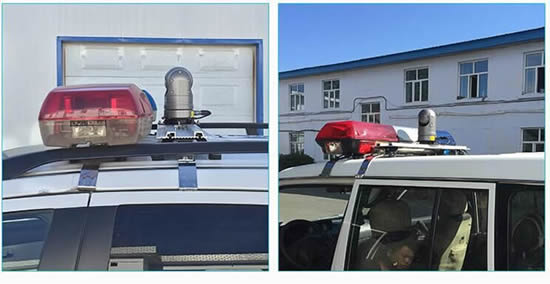

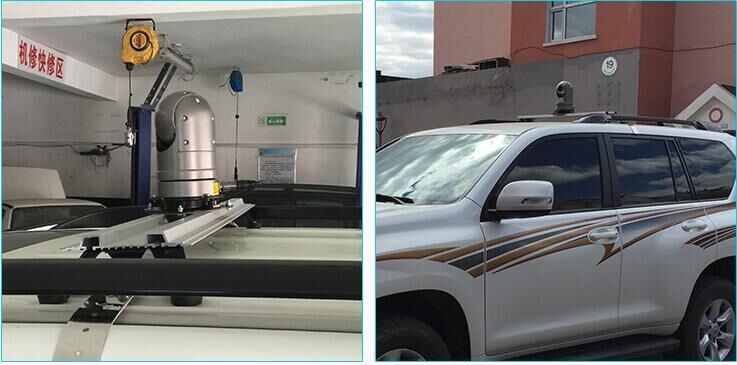

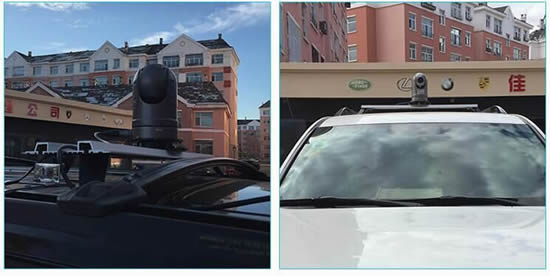

● Bottom shock absorber, match car bracket, installed on the top of car
● Integrated 8-bit processor, low power consumption, good stability
● Driven by a 0.9° precision motor, smooth at low speed, smooth and without jitter
● Use industrial grade components for all kinds of extremely bad weather
● Exquisite structural design, aluminum alloy cast shell, impact resistant, corrosion resistant
● It can store 256 preset positions, data power-off memory, and automatically return to the original state when it power-on.
● Intelligently set 6 cruise tracks, 4 line scanning commands, and 1 pattern scan function
● With the home position function, it can be homing to track, line scanning, preset position
● Protection grade up to IP66, support for three grade of lightning protection, surge protection
IR: PTZ adopts imported array infrared lights，Multi-angle work together, the working life up to 30,000 hours, night vision is 50-80 meters
HD IP: PTZ support mainstream megapixel digiSTl high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD: PTZ support megapixel HD movement, HD-SDI digiSTl interface output, megapixel digiSTl high-definition image lossless, real-time transmission, no delay, a variety of resolution adjusSTble (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD: PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission
Application:
Live broadcast / mobile law enforcement / city security / video conference / urban governance law enforcement / special patrol / intelligent booth
PTZ Function | |
Pan preset speed | 300°/s |
Tilt preset speed | 120°/s |
Pan control speed | 0°~220°/S |
Tilt control speed | 0°~90°/S |
Pan range | 360°endless rotation |
Tilt range | +90° ~ -20° |
Preset | 256 preset, 6 cruse tracking |

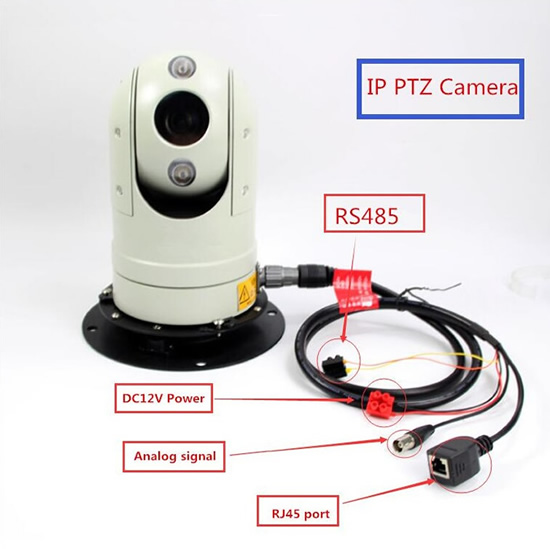

Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
Relative Humidity | Less than 90% |
IP Grade | IP66 |
Working Temperature | -35° ~ +55° |
Impact resisSTnce requirements | ≥4G |
Wiper | Support |
InsSTllation | Variety of insSTllation according to the environment |
Weight | 2.5kg |
Network parameters： | |
Video Compression | H.264/H.265 |
Audio Compression | G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM |
Compression output rate | 32Kbps—12Mbps |
Support Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP |
Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
Storage Function | Support MicroSD storage |
Intelligent Arlarm | Motion detection, mask alarm, full memory, memory misSTke |

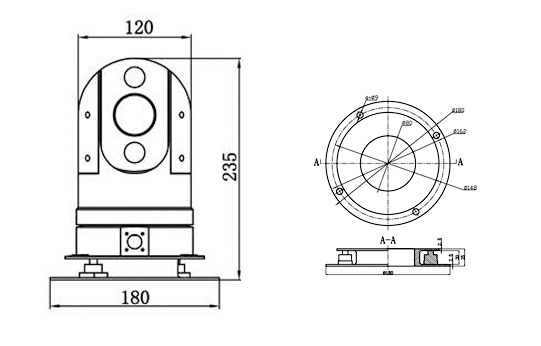

Measures and Diagram：(mm)
