Mini Explosion Proof IR Camera(SHJ-F109-H)

SHJ-F109-H Mini Explosion Proof IR CameraModel: SHJ-F109-HProduct Introduction:SHJ-F109-H is a mini explosion proof camera, which is widely fit for oil tank truck, marine oil tanker, and hazardous are
Availability:
  • Speed

Mini Explosion Proof IR Camera(SHJ-F109-H)

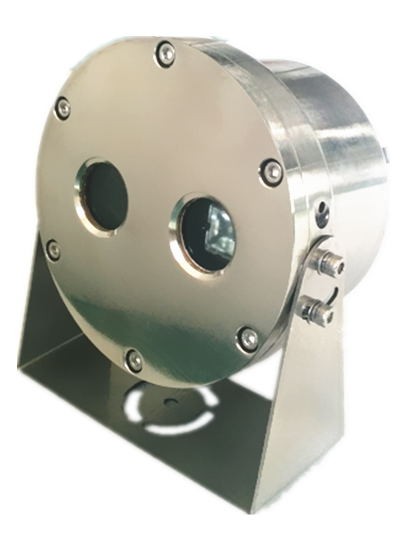

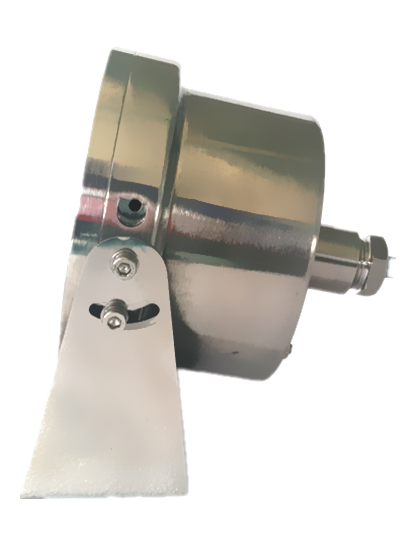

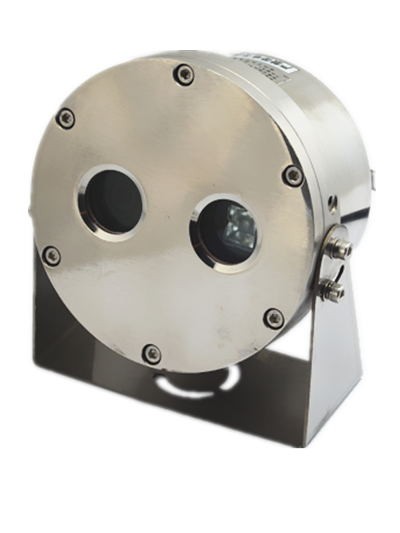

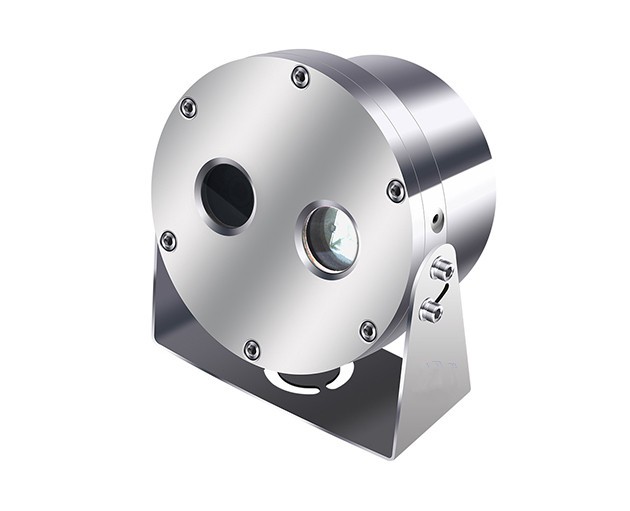

SHJ-F109-H Mini Explosion Proof IR Camera

Model: SHJ-F109-H


Product Introduction:

SHJ-F109-H is a mini explosion proof camera, which is widely fit for oil tank truck, marine oil tanker, and hazardous area surveillance. The SHJ-F109-H mini explosion proof camera also has 30m distance infrared lights for night vision.

Certificate

Certificate Mark

ExdC T6 Gb/   Ex tD A21 IP68 T80

Certificate No

CNEx16.2526

Standards

Q/320412 ZAF033-2016

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4

Electrical

Voltage

DC24V or POE power supply

Power

8W

Ambient

Ambient temperature

-25 to +60

Air pressure

80Kpa to 106Kpa

Relative Humidity

95% (no   condensation)

Lights

Light distance

20-30m

Network

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.265/ H.264/ M-JPEG

Stream

Support three streams

Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP

,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

Time Display

Support

Standard

ONVIF, CGI, GB/T28181, PISA

IE browser

Support IE7 or above, Google, Firefox, Apple

Security

Password protection, Multiple access control

Camera

Image Sensor

1/2.8" COMS, 1/3” COMS

Effective pixel

1.3MP, 2MP

Min. Illumination

0.01Lux @(F1.2, AGC ON)   B/W:   0Lux with IR

Lens

4mm @ F2.0, view angle:85° (6mm, 8mm, 12mm)

Day& Night

Auto ICR

WDR

120dB

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness   adjustable

General

Cable

integrated cable

Size

150*168mm

Weight

5kg

Mounted

wall, pole

Wall bracket

SHJ-Z109B
