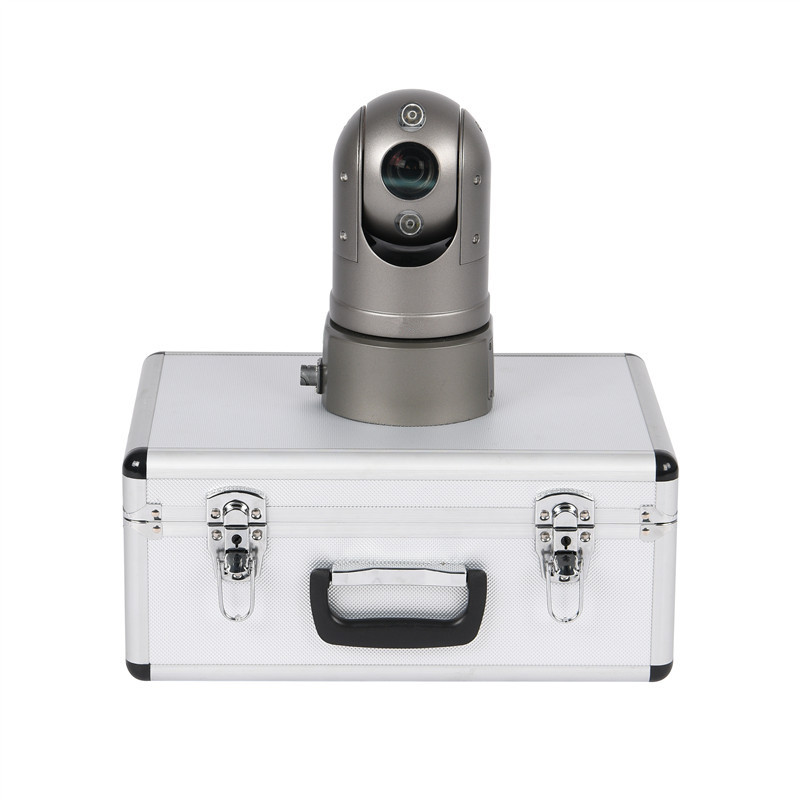

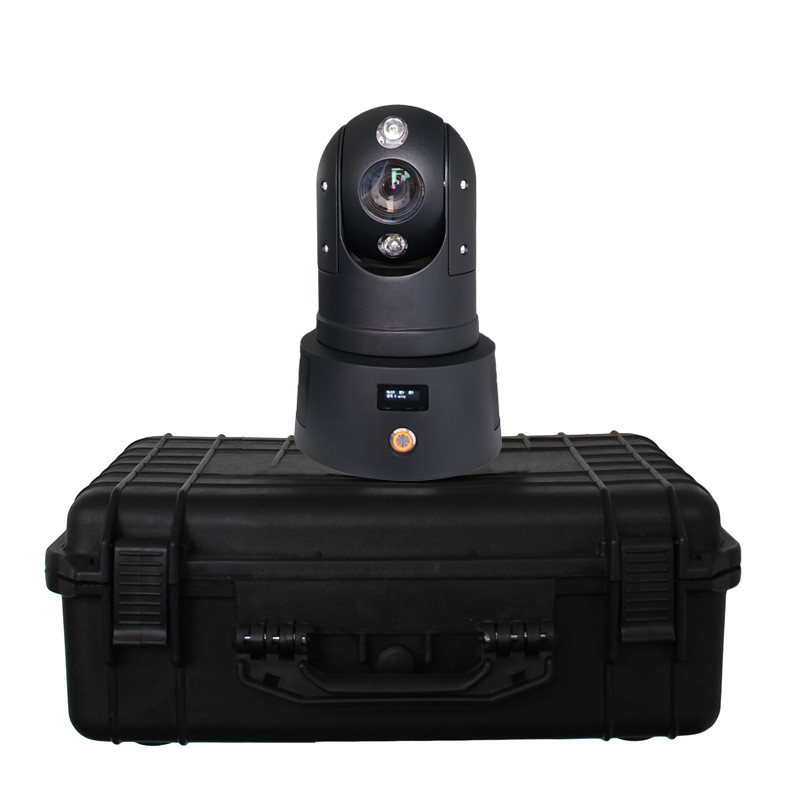

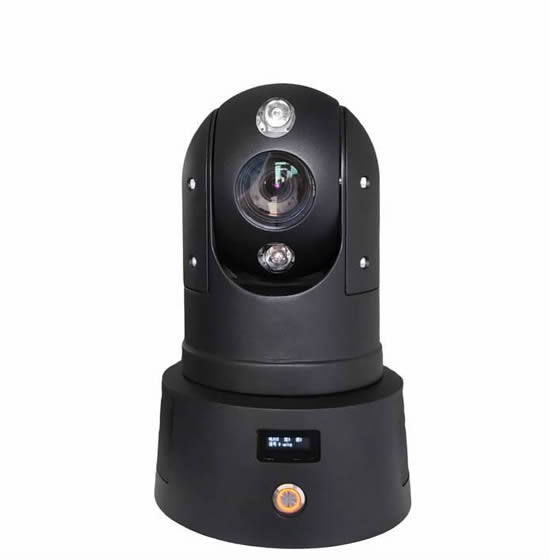

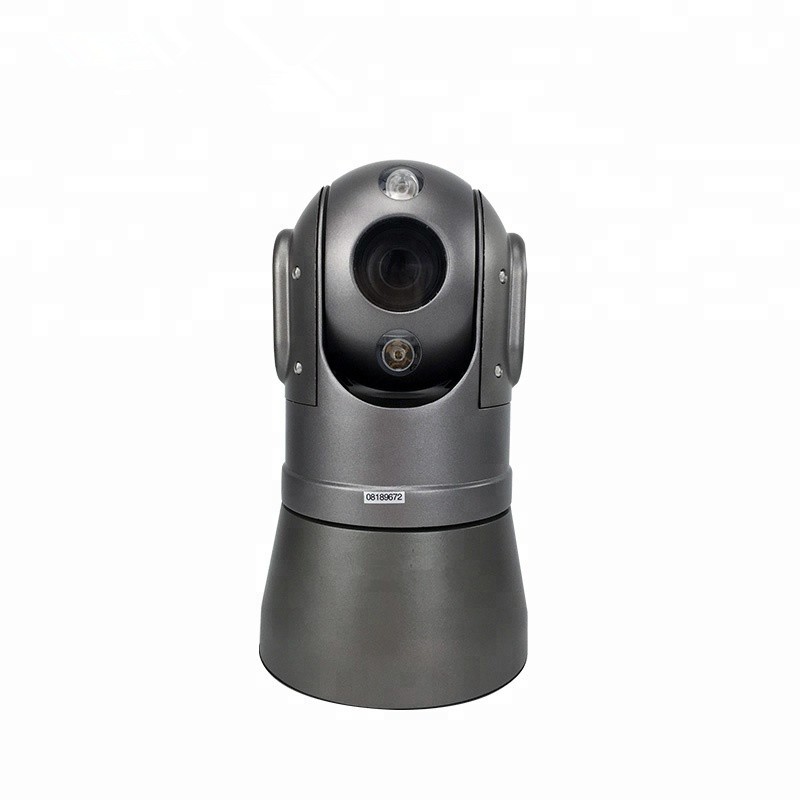

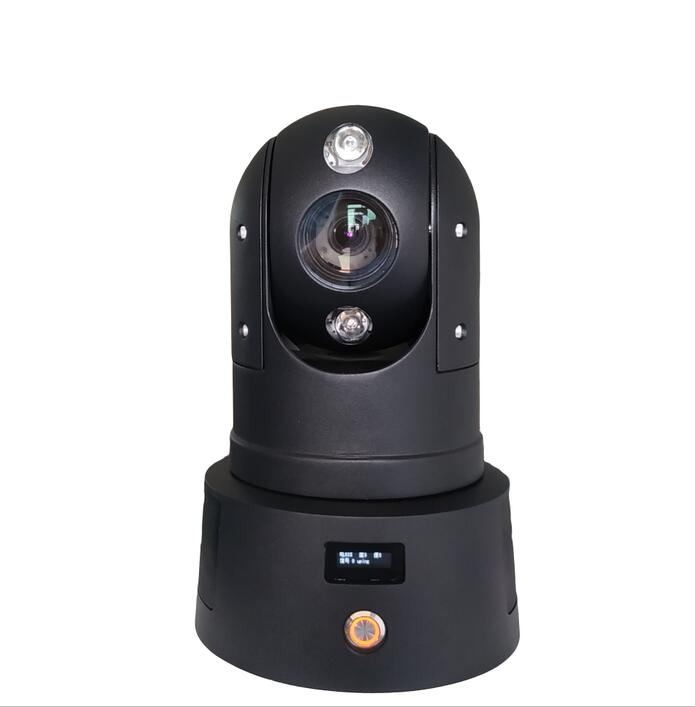

HD IP Rapid Deployment Dome PTZ Camera
Model：SHJ-HLC-2900-IR

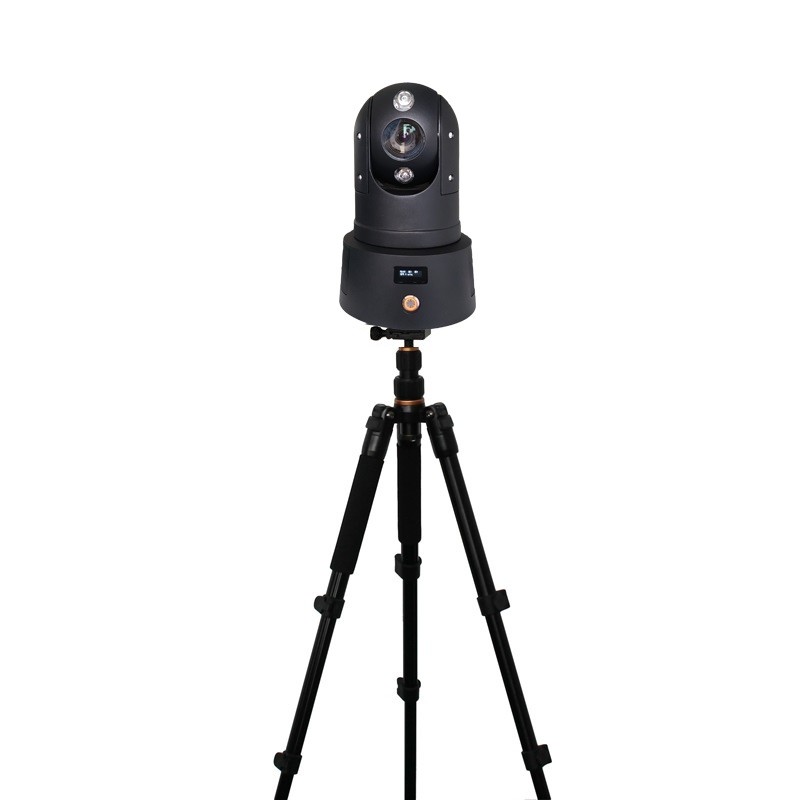

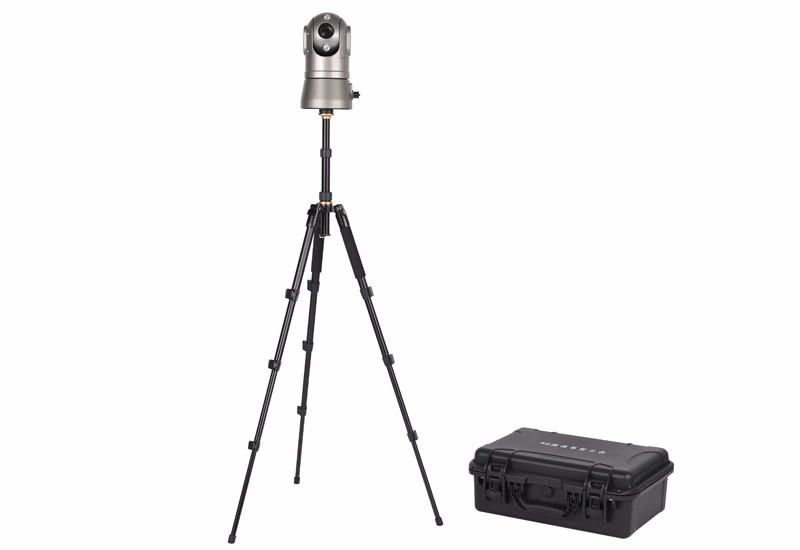

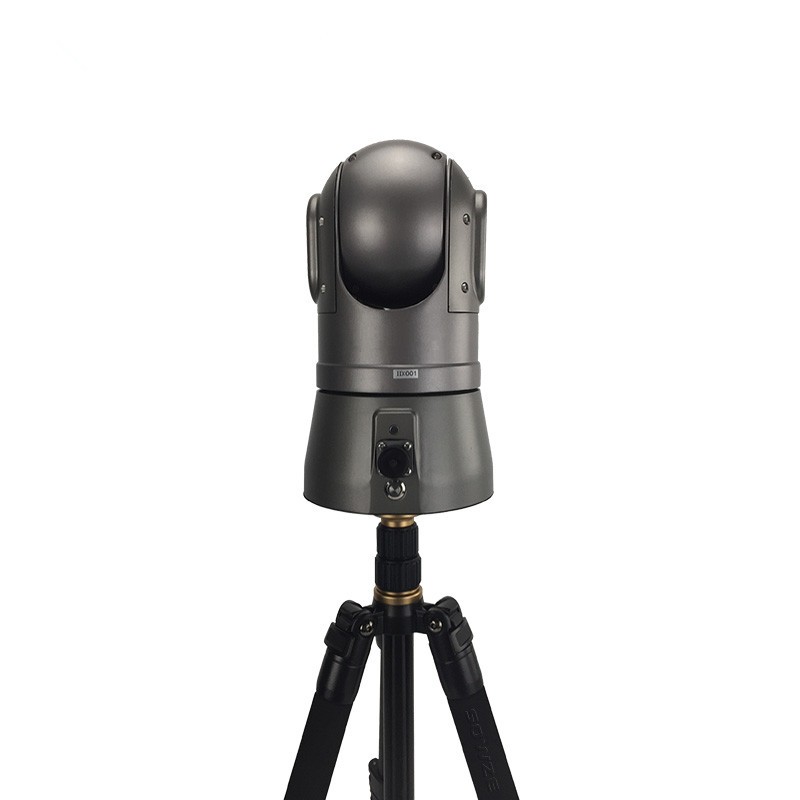

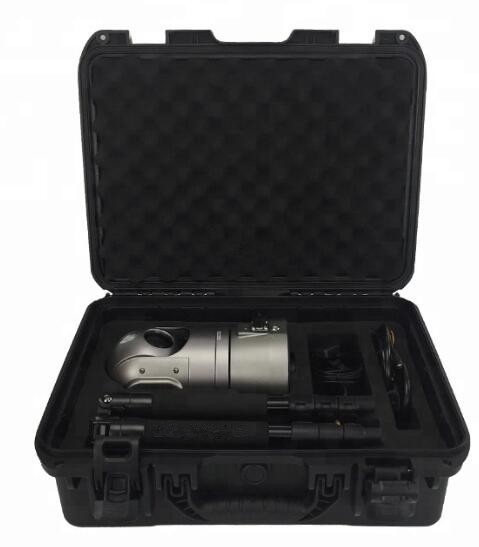

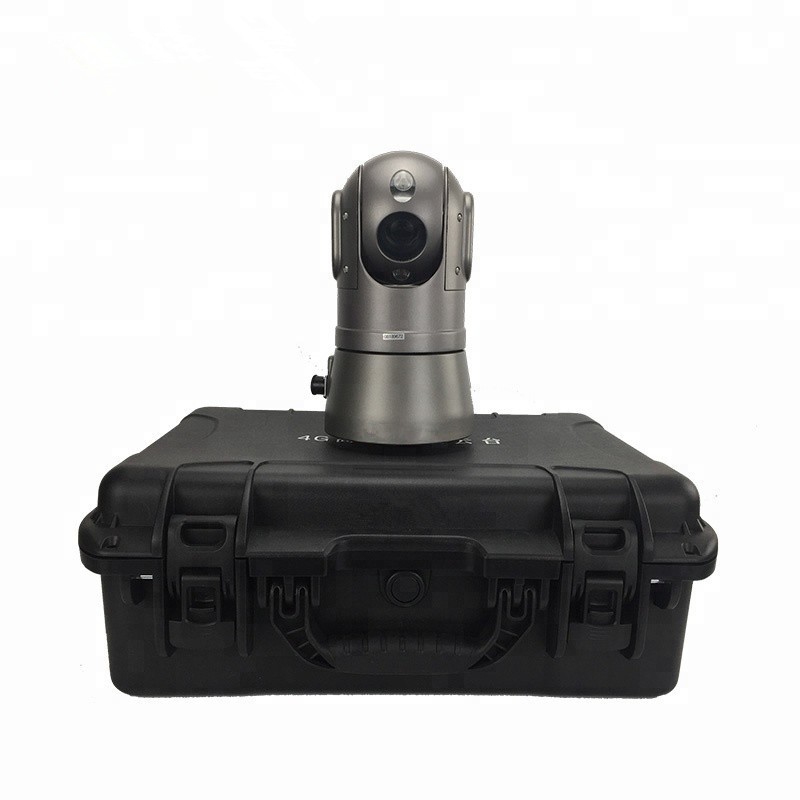

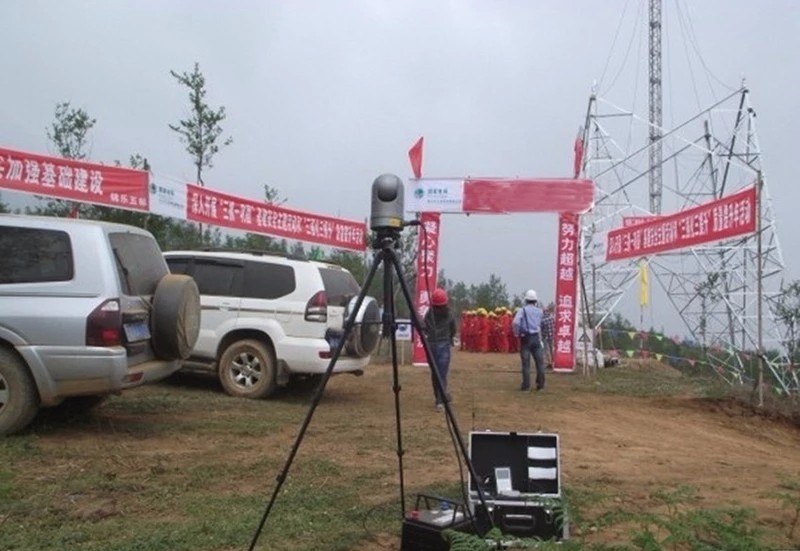

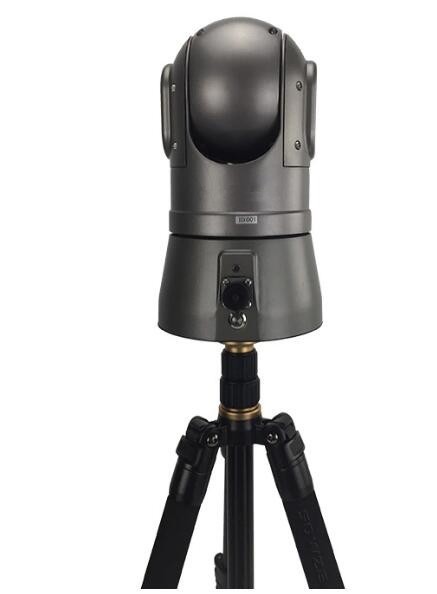

4G HD PTZ Camera SHJ-HLC-2900-IR is a full-function featured, easy to carry wifi video emergency command integrated products, high equipment integration, built-in high-performance lithium battery, external high-definition display control terminal, with waterproof and shock characteristics, to meet the temporary deployment and rapid installation special requirements. When the task is carried out, the device can be temporarily placed in the position to be monitored, or telescopic tripod, can also be directly adsorbed on the vehicle, the task can be easily removed at the end of the equipment.
Features：
● 1080P HD video, H.265 video encoding, backward compatible with H.264, dual stream
●Support 4G dual card(dual 4G optional), support dual mode/private network
●Dual stream, the main stream / sub bit stream bit rate flexible choice, intelligent bit rate adjustment
●Flow Encrypted Storage
●Built-in WIFI，support AP and STN working way
●Built-in GPS/Beidou module，accurate locating
●Support SD card local storage，max support 256G
●Built-in antenna integrated design
●Built-in battery, can work continuously not less than 14 hours (room temperature)
●Support the remaining power display, support signal status monitoring
●Support local monitoring and three-dimensional PTZ control
●Metal body, 360 degrees omnidirectional PTZ
● Focus fast and accurate, digital wide dynamic, through the fog mode optional

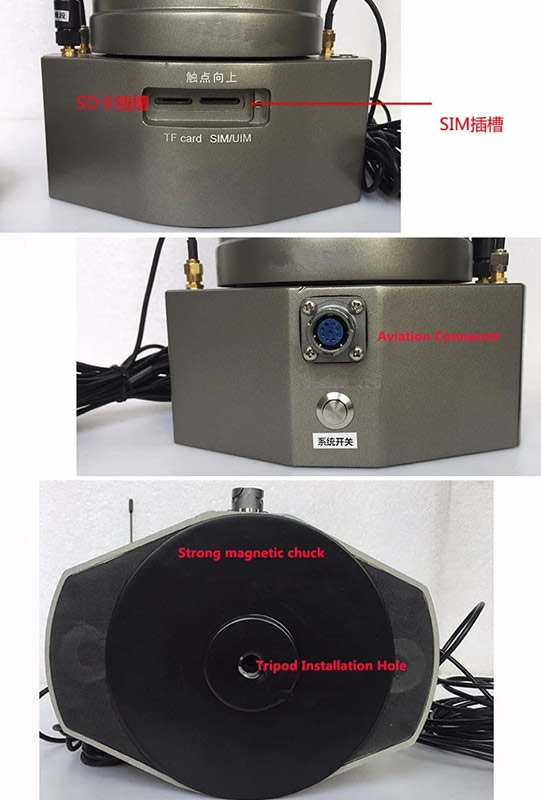

●Integrated design, the bottom of the configuration of high-suction magnet, fast installation
●Audio interception, cluster intercom (optional)
Application：

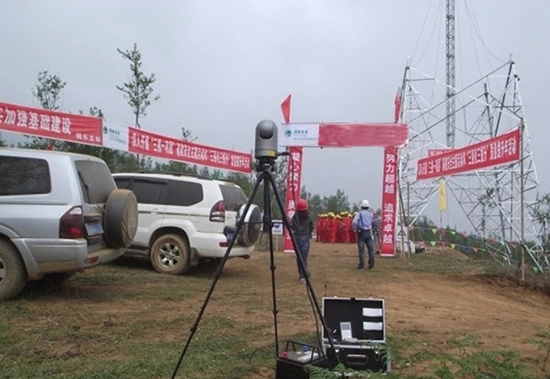

Applicable to the field of large mobility of the application environment, such as, investigation, public security, fire, traffic, insurance claims settlement and other fields.
Parameter：
Product Name | Wifi 4G HD PTZ Camera | |
Operation system | Linux | |
Video | Video compression format | H.265/H.264 Video compression coding |
Dual stream | Main sub-stream | |
Resolution | 1080P/720P/D1 | |
Preview function | Support | |
Audio | Talking companion | Default audio monitoring, optional cluster intercom |
Display | Support | 7 inch, 1024*600 (optional) |
Local control | Support | Three-dimensional control keyboard (optional) |
Storage | Local storage | 1 SD card, max support 256G |
Wireless network | 4G/3G | Support dual 4G module, support the whole network or private network agreement |
WIFI | Built-in WIFI module，support 802.11b/g/n | |
Hotspot mode | Support 4G AP hotspot mode，support connect router STN mode | |
Positioning | GPS/Beidou | Built-in GPS/BD dual module |

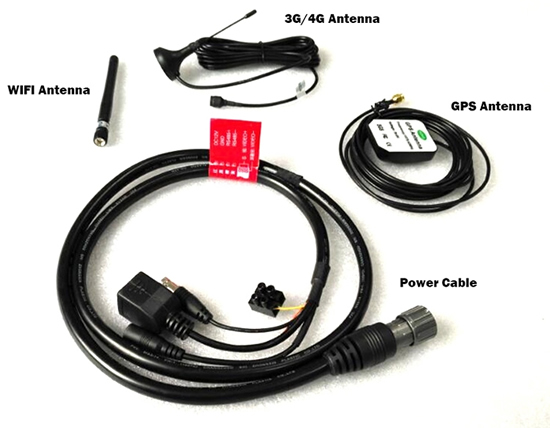

Expansion interface | RJ45 network interface, analog video output, 485 interface, charging interface | |
Camera | Image sensor | 1/2.8" Progressive Scan CMOS |
Signal system | PAL/NTSC | |
Ilumination | Color: 0.05Lux @ (F1.6, AGC ON) | |
Day/night | ICR ir filter type | |
SNR | More than 52dB | |
Electronic shutter | 1/1s ~ 1/30,000s | |
Digital zoom | 12x | |
Resolution | 1920x1080/1280*720 25fps/30fps | |
White balance | Auto 1/auto 2/Indoor/Outdoor/Manual/ sodium lamp / fluorescent lamp | |
3D Noise reduction | Support | |
Optical zoom | 20x | |
IR | 60-80m | |
PTZ | PTZ protocol | PELCO-D/P |
Pan rotation angle | 360° | |
Tilt rotation angle | -20°~90° | |
Power sUPPLY | Battery | Large capacity lithium battery pack, the remaining power tips |
Charging time | <4 hours | |
Working time | >14 hours(room temperature0 | |
Working environment | Temperature | -15℃～ +50℃ |
Humidity | <90% | |
Measure | Host(max height*max diameter) | 268*146mm(Hmax*Dmax) |
Weight | Net weight: 4kg | |
Gross weight: 10kg | ||
