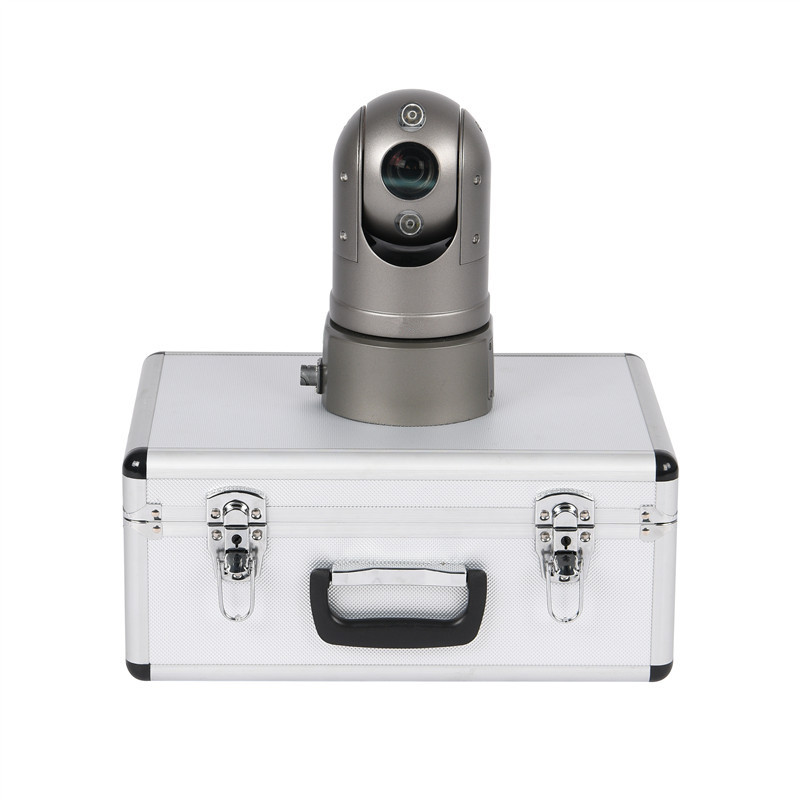

Economic HD IP Rapid Deployment Dome PTZCamera
Model：SHJ-HLC-2600-IR
4G HD PTZ Camera SHJ-HLC2600-IR is a full-function featured, easy to carry wifi video emergency command integrated products, high equipment integration, built-in high-performance lithium battery, external high-definition display control terminal, with waterproof and shock characteristics, to meet the temporary deployment and rapid installation special requirements. When the task is carried out, the device can be temporarily placed in the position to be monitored, or telescopic tripod, can also be directly adsorbed on the vehicle, the task can be easily removed at the end of the equipment.
Features：
l 1080P HD video, H.264 video encoding, dual stream
l Support for motion detection
l Support voice monitoring
l Support 4G all netcom
l Built-in WIFI, support AP and STN working way
l Support GPS, accurate locating
l Support SD card local storage，max support 256G
l 360 degrees omnidirectional PTZ
l Focus fast and accurate, digital wide dynamic
l Integrated design, the bottom of the configuration of high-suction magnet, fast installation
l Built-in battery, can work continuously more than 4.5hours (room temperature)
Application：

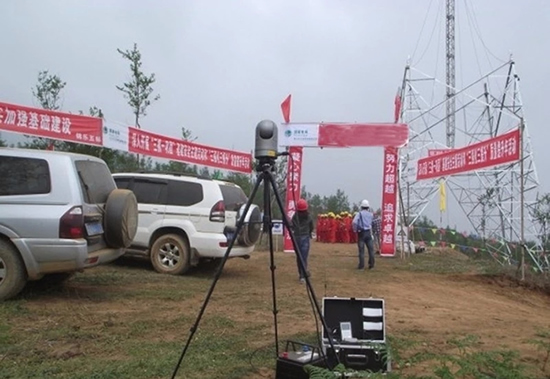

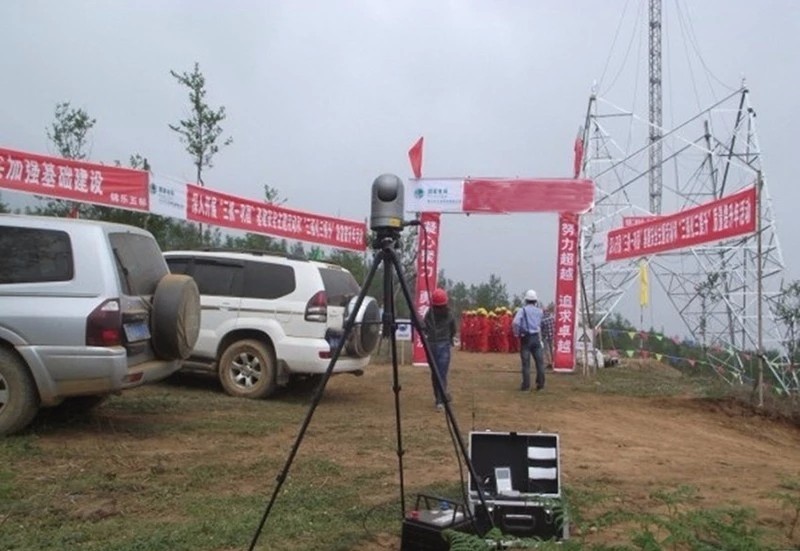

Applicable to the field of large mobility of the application environment, such as, investigation, public security, fire, traffic, insurance claims settlement and other fields.
Parameter：
Product Name | EconomicWifi4G HD PTZ Camera | |
Operation system | Linux | |
Video | Video compression format | H.264 Video compression coding |
Dual stream | Support | |
Resolution | 1080P/720P/D1 | |
Preview function | Real time, video preview | |
Audio | Talking companion | Optional |
Storage | Local storage | 1 SD card, max support 256G |
Wireless network | 4G/3G | Support dual 4G module, support the whole network or private network agreement |
WIFI | Built-in WIFI module，support 802.11b/g/n | |
Hotspot mode | Support 4G AP hotspot mode，support connect router STN mode | |
Positioning | GPS | Built-in GPS module |
Expansion interface | RJ45 network interface, RS 485 interface, charging interface | |
Camera | Image sensor | 1/2.8" Progressive Scan CMOS |
Signal system | PAL/NTSC | |
Illumination | Color: 0.05Lux @ (F1.6, AGC ON) White black: 0.01Lux @(F1.6, AGC ON) | |
Day/night | ICR ir filter type | |
SNR | More than 52dB | |
Electronic shutter | 1/1s ~ 1/30,000s | |
Optional zoom | 20x | |
Resolution | 1920x1080/1280*720 25fps/30fps | |
White balance | Auto 1/auto 2/Indoor/Outdoor/Manual/sodium lamp /fluorescent lamp | |
3DNoise reduction | Support | |
Optical zoom | 20x | |
IR | 60-80m | |
PTZ | PTZ protocol | PELCO-D/P |
Pan rotation angle | 360° | |
Tilt rotation angle | -15°~90° | |
Preset position | 200 | |
Power Supply | Battery | 5200 |
Charging time | <2 hours | |
Working time | >4.5 hours(room temperature) | |
Working environment | Temperature | -20℃～ +80℃ |
Humidity | <90% | |
Measure | Host(max height*max diameter) | 160*210mm(Hmax*Dmax) |
Weight | Net weight: 3kg | |
Gross weight: 7.5kg | ||

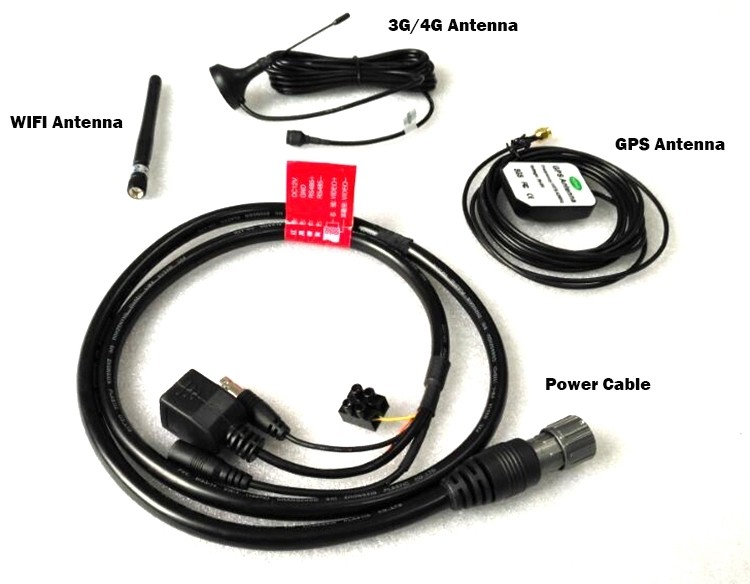

Accessories list | 12.6V 3A charger X1 | |
Composite air line X1 | ||
