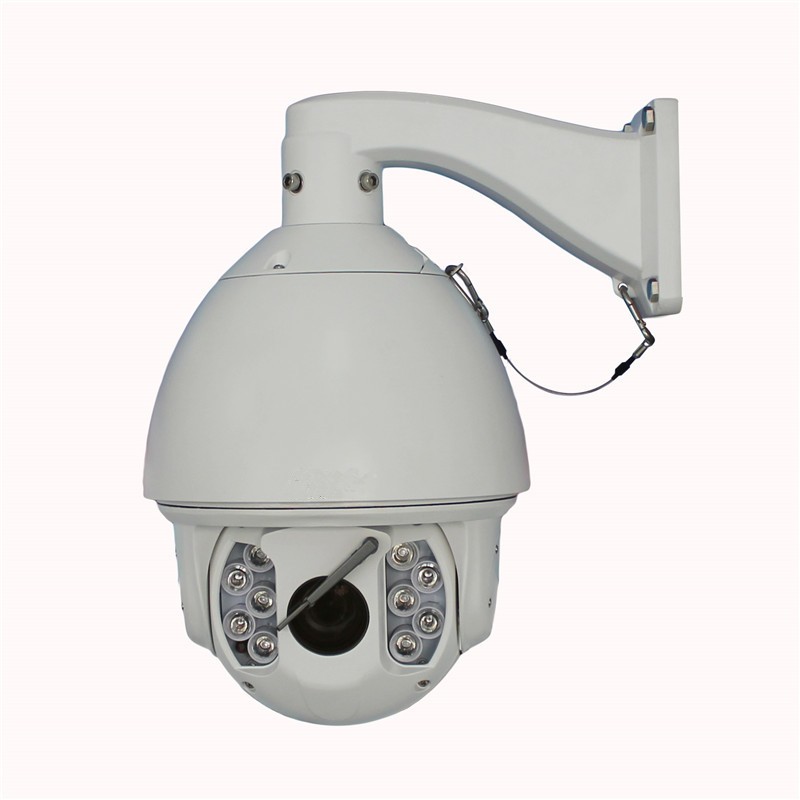

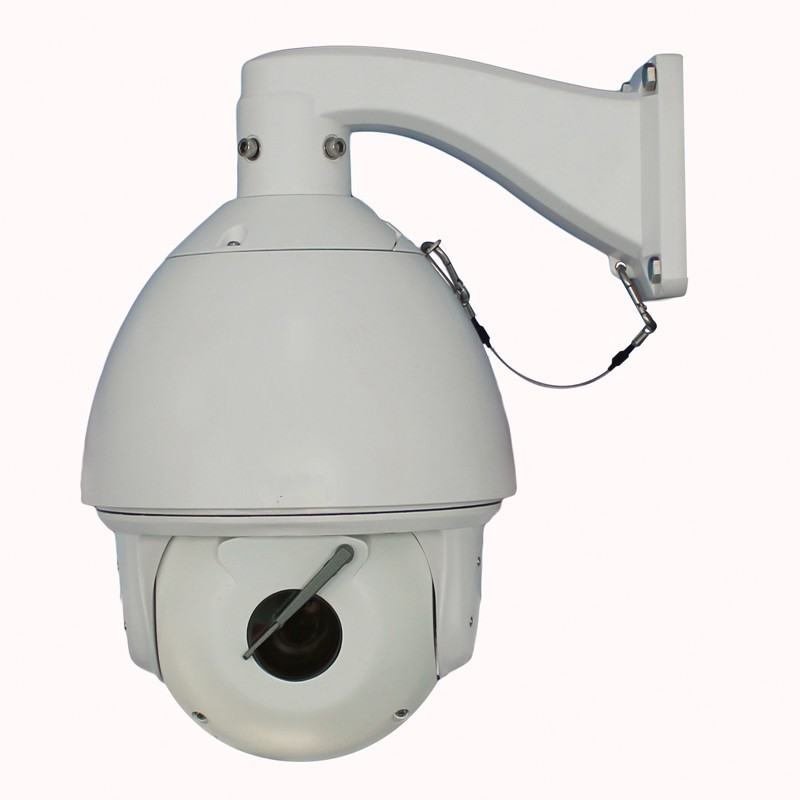

Intelligent HD Speed Dome Camera
Model:
SHJ-BL-A(Analog)
SHJ-BL-HD(HD IP)
SHJ-BL-SDI(SDI HD)
SHJ-BL-AHD(CVI/TVI)(Coaxial HD)
Features:
● With wiper function, combined with camera lens active defrost function, can achieve internal and external echo, real-time image clarity
● Telephoto speed limiting function, can identify a variety of cameras
● OSD menu display function, the compass direction can be set to the north, user-friendly design
● With the return to the guard function, can be attributed to the track, line scan, preset position, pattern scan
● Power-off memory function, power automatically back to the power before the PTZ and lens status
● High-precision stepper motor, preset precision, smooth operation, the image without jitter
● Built-in voltage regulator module, filter unstable current, to prevent image interference
Network HD: Supports mainstream MD digital HD movement and HD SENSOR for high-definition image capture, compatible with mainstream HD platform and seamless docking, supports up to 1080P output, supports dual stream and HD capture, supports IE browsing
SDI HD: support megapixel full HD movement, HD-SDI digital interface output, million digital HD image lossless, real-time transmission, no delay, multiple resolution adjustable（1080p/60 1080p/30 1080p/25 720p/60 720p/30 720p/25）
Coaxial HD: Support universal AHD/CVI/TVI coaxial HD movement, support coaxial HD hard disk recorder output, image without any encoding and compression, full real-time high-definition picture coaxial transmission
Application: Smart Community/Large Factory Industrial Park/Large Business District/City Road Monitoring/Airport Monitoring/Smart City
Technical Parameter:
PTZ Function | |
Pan range | 360°endless rotation |
Pan speed | control speed：0.1°-260°/s, Pan preset speed：350°/s |
Tilt range | -10°-90° |
Tilt speed | control speed：0.1°-90°/s, Tilt preset speed：120°/s |
Preset positions | 256 positions |
Cruise scan | 8 trackings, each can add 16 preset points |
Line sweep function | 8 trackings, can set the scanning direction and speed |
Pattern scanning function | 4 tracking 160 second |
Home position function | Preset point/track/pan line sweep/pattern scan |
Azimuth coordinate information display | Support |
Temperature display function | Support |
Compass function | Support, can be set in the north direction |
menu | English |
Power supply | AC24V/2.5A，DC12V/3A |
Power consumption | 30W（IR） |
Working temperature and humidity | -30 ℃- 55℃ Humidity < 90% |
Protection level | IP66 (outdoor), TVS 4000V lightning protection, anti-surge, anti-surge |
Installation method | A variety of installation options are available depending on the application environment |
Network parameters： | |
Video Compression | H.265/H.264 |
Compression output rate | 32kbps-12Mbps |
Audio Compression | G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM |
Storage function | Support micro SD |
Intelligent Arlarm | Motion detection, occlusion alarm, memory full, memory error, audio anomaly detection, cross-border detection, area intrusion detection |
Support Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP、可选) |
General function | Dual stream, heartbeat, password protection |

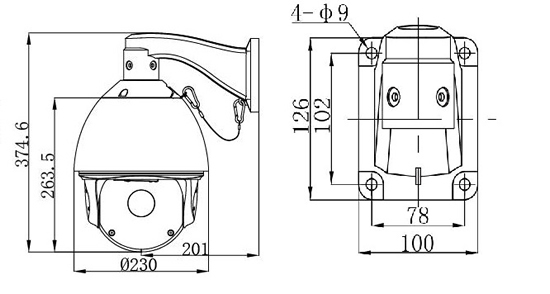

Measures: (mm)
