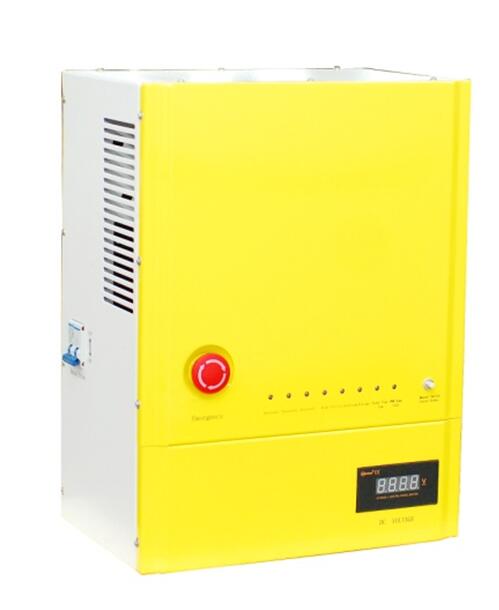

Grid-Tied Wind Controller 3KW-10KW
Features:
l Superior military-grade components to ensure the product stability.
l Perfect protection function, thus the system has higher reliability.
l Check and set all operation parameters as requirement from LCD display.
l PWM stepless unload mode, when wind turbine voltage is higher than the preset voltage, the grid-tied controller will dump load the excess voltage.
Parameter Data:
Type | 3KW |
Wind turbine rated power | 3KW |
Wind turbine Max. power | 6KW |
Function | Rectifier,charge, control |
Display mode | LED |
Display content | DC output voltage, DC output current, DC output power |
PWM constant voltage | ≥380dc |
wind turbine 3-phase dump load voltage | 410±5Vdc |
Time-lapse of the wind turbine 3-phase dump load | 12-20 min |
Low-voltage | ≤200Vdc |
PWM dump load fuse | 10A |
Fuse of DC output | 16A |
Work environment temperature | -30-60°C |
Relative humidity | ＜90% No condensation |
(1m) Noise (1m) | ＜40dB |
Degree of protection | IP20（Indoor） |
Cooling method | Forced air cooling |
Communication interface (optional) | RS485/USB/GPRS/Ethernet |
Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C |
Size of the controller (mm) | 560*430*320 |
Weight of the controller | 20Kg |
Size of the dump load (mm) | 490*460*310 |
Weight of the dump load | 17Kg |
Type | 5KW | 10KW |
Wind turbine rated power | 5KW | 10KW |
Wind turbine Max. power | 10KW | 20KW |
Function | Rectifier,charge, control | |
Display mode | LCD | |
Display content | DC output voltage, DC output current, DC output power | |
PWM constant voltage | ≥420dc | ≥520dc |
wind turbine 3-phase dump load voltage | 450±5Vdc | 560±5Vdc |
Time-lapse of the wind turbine 3-phase dump load | 12-20 min | 12-20 min |
Low-voltage | ≤200Vdc | ≤200Vdc |
PWM dump load fuse | 20A | 32A |
Fuse of DC output | 20A | 40A |
Work environment temperature | -30-60°C | |
Relative humidity | ＜90% No condensation | |
Noise (1m) | ＜40dB | |
Degree of protection | IP20（Indoor） | |
Cooling method | Forced air cooling | |
Communication interface (optional) | RS485/USB/GPRS/Ethernet | |
Temperature compensation (optional) | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C | |
Size of the controller (mm) | 560*430*320 | 650*470*320 |
Weight of the controller | 20Kg | 25Kg |
Size of the dump load (mm) | 670*520*460 | 760*520*550 |
Weight of the dump load | 28Kg | 38Kg |
