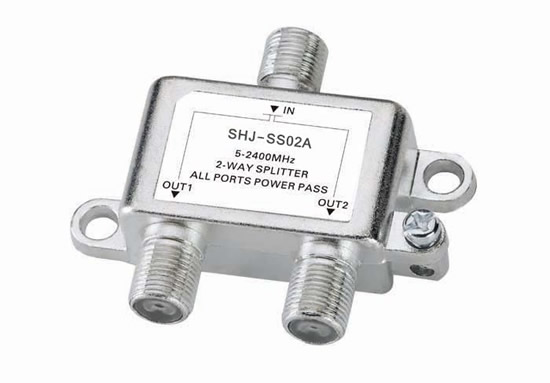

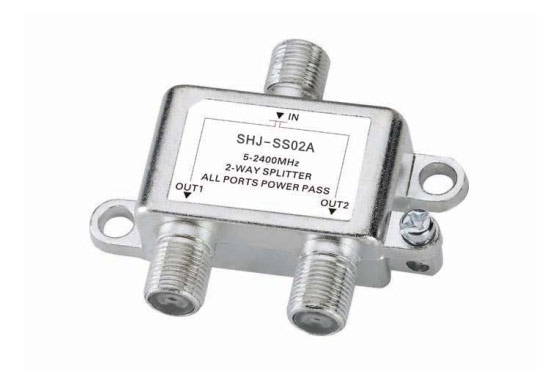

Satellite Splitter
Model: SHJ-SS02A
Features:
● Zinc die-cast housing, tin-plated
● Light weight and compact size
● Easy installation with two edge hole sites
● Screening factor: 5-2400MHz≥100dB
● Low insertion loss, high isolation, perfect performance index
● Designed for SATV/CATV
● Power passing-24V 0.8A(MAX.)
● All ports F-(f)connector,75Ohm
Parameter description:
Frequency Range (MHz) | Insertion Loss(dB) | Mutual Isolation(dB) | Return Loss(dB) |
5-40 | ≤3.5 | ≥14 | ≥10 |
40-1000 | ≤3.8 | ≥22 | ≥12 |
1000-1750 | ≤4.0 | ≥20 | ≥12 |
1750-2400 | ≤4.5 | ≥20 | ≥10 |
