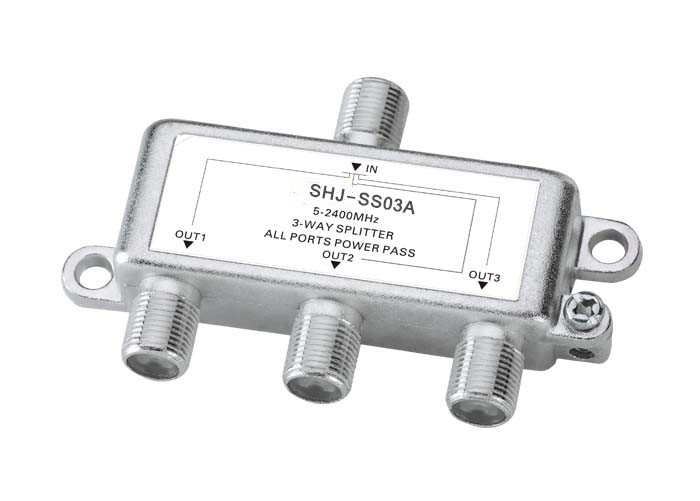

3 Way 5-2400MHZ Satellite Splitter
Model: SHJ-SS03A
Features:
lZinc die-cast housing, tin-plated
lLight weight and compact size
lEasy installation with two edge hole sites
lScreening factor: 5-2400MHz≥100dB
lLow insertion loss, high isolation, perfect performance index
lDesigned for SATV/CATV
lPower passing-24V 0.8A(MAX.)
lAll ports F-(f)connector,75Ohm
Parameter description:
Frequency Range (MHz) | Insertion Loss(dB) | Mutual Isolation(dB) | Return Loss(dB) |
5-40 | ≤8.0 | ≥22 | ≥10 |
40-1000 | ≤8.5 | ≥22 | ≥12 |
1000-1750 | ≤9.5 | ≥20 | ≥12 |
1750-2400 | ≤11.0 | ≥20 | ≥10 |
