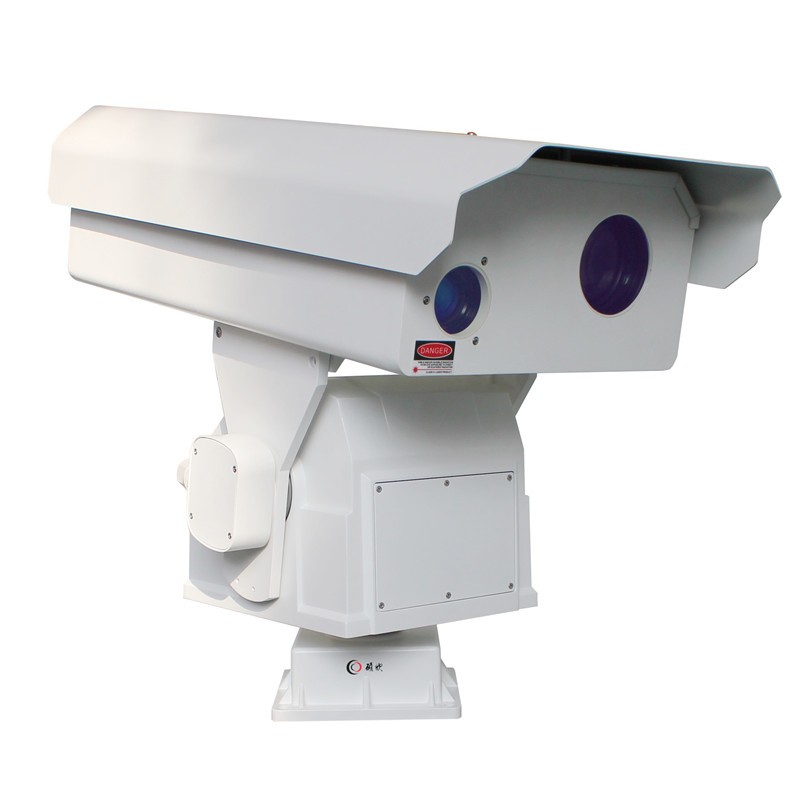

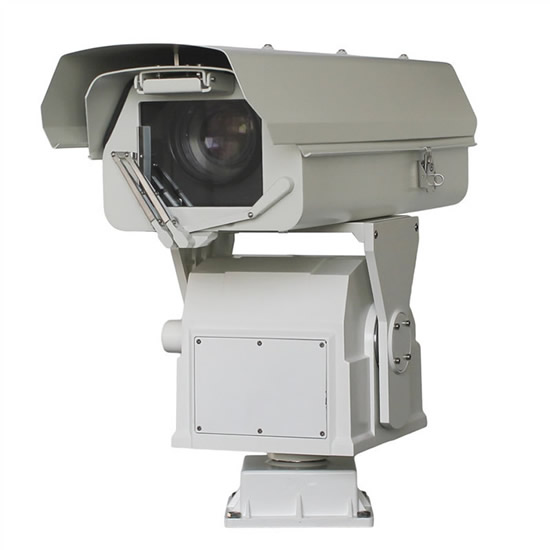

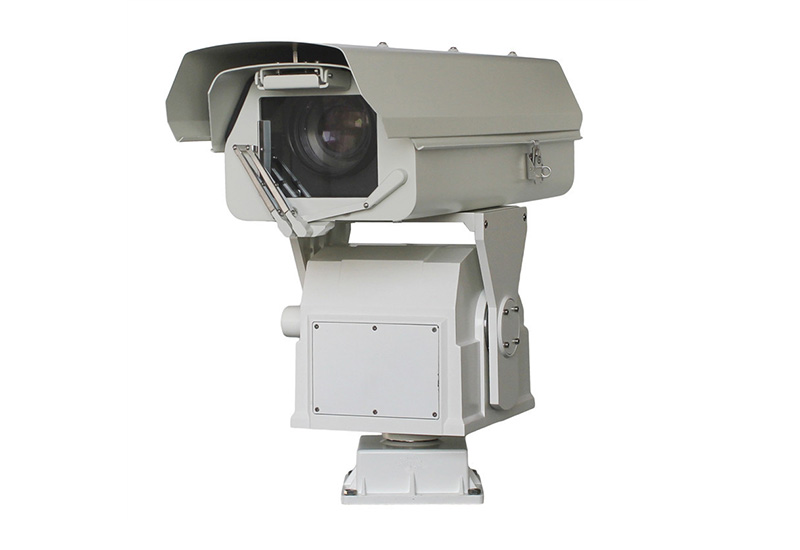

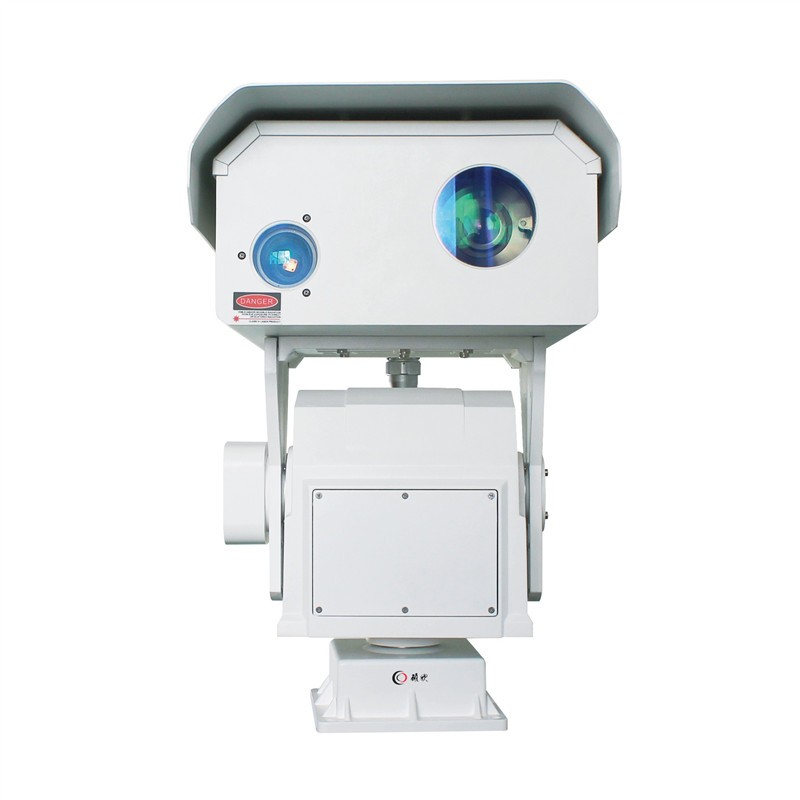

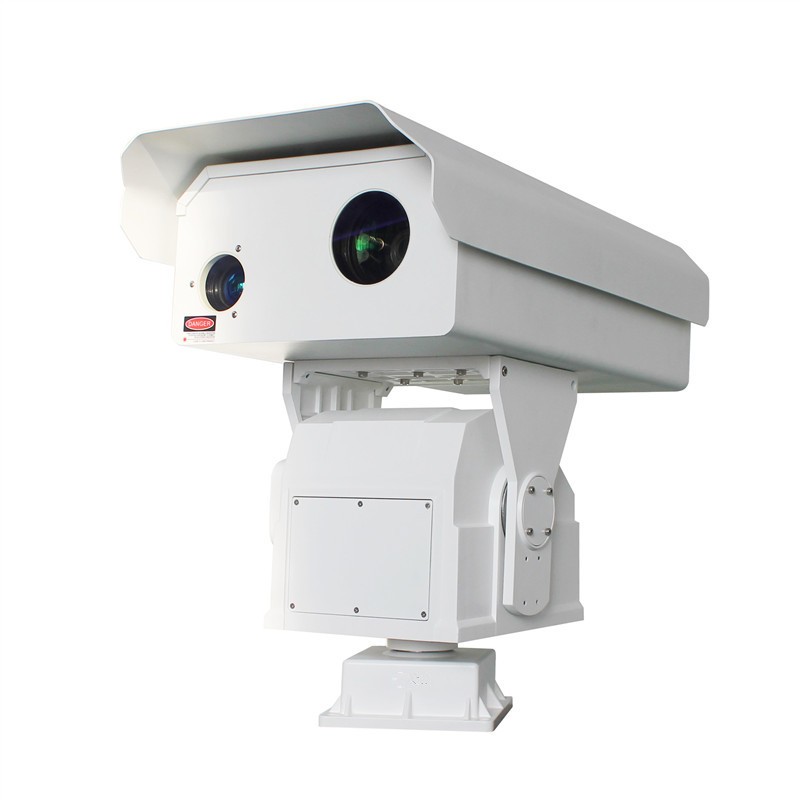

2km visible light long range fog penetration high-definition integrated intelligent heavy-duty PTZ camera
Model：SHJ-TX30-HD-24M
Features：
● 2.0mp 1 / 1.8 "F1.6 CMOS ICR star day and night HD network camera
● Large diameter high-definition fog automatic zoom visible lens, DC drive, auto iris, fog penetration camera

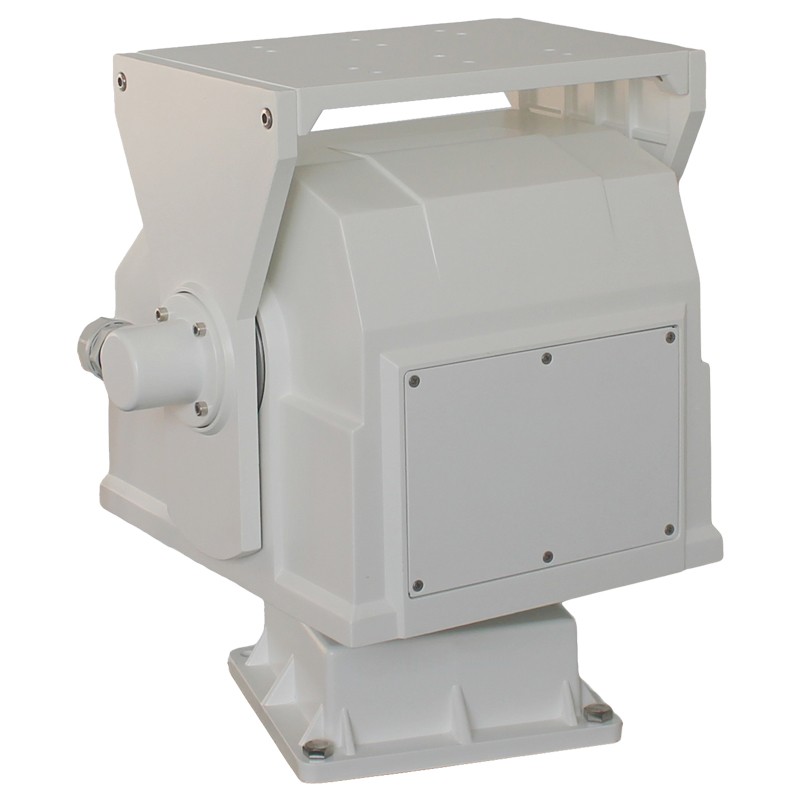

● PTZ adopts the design of large transmission ratio of turbine worm, metal structure, copper gear wheel, large torque, strong carrying capacity, high power self-locking ability after power failure
● PTZ adopts dynamic voltage drive technology, high load capacity, strong wind resistance, strong earthquake resistance, high stability, ultra low speed operation
● PTZ adopts super aluminum alloy shell, protection class IP66, professional structure design, professional wiper structure, high and low temperature test design, high temperature anti-ice and snow, to adapt to extreme weather.
● Advanced electromagnetic compatibility test, using triple lightning protection technology
Application:
Forest fire prevention, safe city, prison, warehouse, oil field oil depot, long pipeline, large factory, mining, freight yard, borderline, maritime fishery, ecological protection area, reservoir, military base
Technical Parameter：
2KM visible light fog penetration high-definition integrated intelligent heavy-duty PTZ camera | ||
Long local fog penetration lens | Image | 1/1.8" |
Interface | C | |
Focus Length | 8-240mm | |
Zoom | 30X | |
Aperature（F) | F1.7-F30 | |
Zoom function | Electric zoom | |
Aperature function | Auto aperature(DC driving) | |
Through fog | Through fog image | |
HD Camera | Image sensor | 1/1.8" Progressive Scan CMOS |
Mini illumination | Color:0.002 Lux @(F1.2,AGC ON) White black:0.0002Lux @(F1.2,AGC ON) | |
Lens interface | C/CS interface | |
Auto aperature | DC driving | |
Day/night | ICR IR Filter | |
Image sensor | 1920 × 1080 | |
Image frame rate | 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720) | |
Day/night | ICR Infrared filter automatic switching | |
Image setting | Saturation, brightness, contrast, sharpness adjustable | |
Through fog | Support | |
Special function | Wide dynamic light suppression / 3D digital noise reduction / backlight compensation / electronic shutter auto iris / slow shutter | |
Network transmission compression method | Video compression standard | H.265 / H.264 / MJPEG |
H.265 code | Main Profile | |
H.264 code | BaseLine Profile / Main Profile / High Profile | |
Compressed output bit rate | 32 Kbps~16Mbps | |
Storage function | Support Micro SD/SDHC/SDXC card (128G) | |
Interface protocol | ONVIF,PSIA,CGI,ISAPI,GB28181 | |
PTZ protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
PTZ parameter | Pan manual control speed | 0.01°/S -- 40°/S |
Tilt manual control speed | 0.01 °/S -- 15°/S | |
Pan angle | 360° contiously rotation | |
Tilt angle | +40°~-75° | |
Preset | 256 pcs preset position | |
Cruising | 8 channels | |
Auto scanning | 8 channels | |
Automatic homing function | Support | |
Patrol | 4 channels | |
Auxiliary switch | 2 groups | |
load | Top load 22KG | |
Control way | RS485，rotation angle return angle and angle control can be realized | |
General specification | Relative humidity | 90% |
IP grade | IP66 | |
Working temperature | -40 ℃ - 55℃ | |
Power supply | AC24V/DC24V | |
Consumption | ≤100W | |
