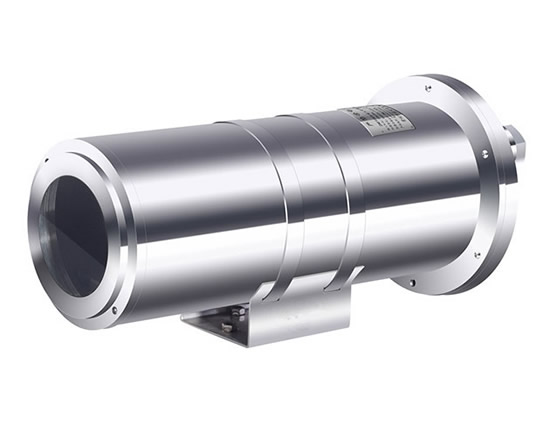

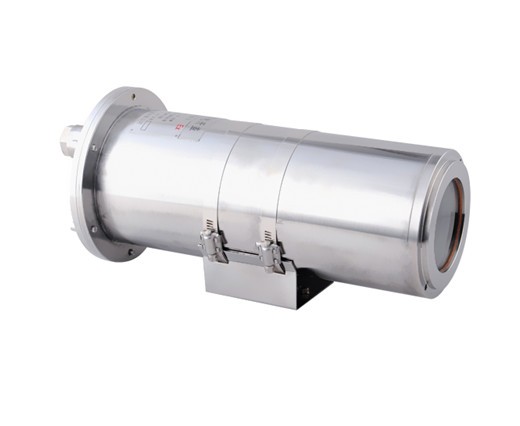

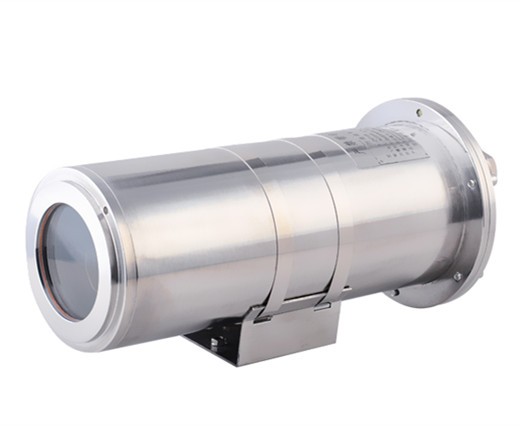

Explosion proof camera housing
Model: SHJ-F105
Product Introduction:
SHJ-F105 explosion proof camera housing is Zuoan most hot sale model.It is featured as IP68 rated, heavy duty, double explosion proof certified, and optional with sun shroud. Client is welcome to offer camera to load into our SHJ-F105 explosion proof camera
Certificate
Certificate Mark | Ex dⅡCT6 Gb/ Ex tD A21 IP68 T80℃ |
Certificate No | CNEx17.1573 |
Standards | Q/320412ZAF003-2017 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 2pcs G3/4 or NPT3/4 |
Sun-shield | No |
Wiper | No |
Electrical
Voltage | DC24Vor POE |
Power | 8W |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Alarm
Alarm Input | 2-channel/ 7-channel |
Alarm Output | 1-channel, action with alarm |
Intelligent Alarm | Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access |
Audio
Audio Input | Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10% |
Audio Output | Line-level impedance 600Ω |
Network
Network Interface | 1pcs of RJ45, support 10M/100M/1000M |
Video Compression | H.264 main profile / MJPEG |
Audio Compression | G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726 |
Voice Intercom | Support |
Stream | Support three streams |
Internet Protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP, SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP, RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE |
Time Display | Support |
Standard | ONVIF, CGI, GB/T28181, PISA |
IE browser | Support IE7 or above, Google, Firefox, Apple |
Security | Password protection, Multiple access control |
Camera
Image Sensor | 1/2.8" interline-transfer CCD |
Effective pixel | 1.3MP, 2MP, 3MP |
Min. Illumination | Color 0.05Lux B/W: 0.01Lux |
Day&night | Auto/ Color/ BW |
S/N ratio | ＞52dB（AGC off） |
Gain | off/ lower/ higher |
White Balance | Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp |
3D DNR | Support |
BLC | ON/OFF |
Image setting | Mirror, Saturation, Brightness, Contrast, Sharpness adjustable |
Optical zoom | 20X / 30X |
General
Cable | integrated cable |
Size | 390*163*170mm |
Weight | 7.5kg |
Mounted | wall, pole |
Wall bracket | SHJ-Z100B |

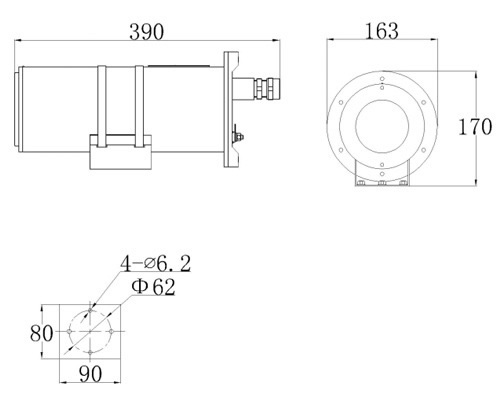

Drawing: (mm)
