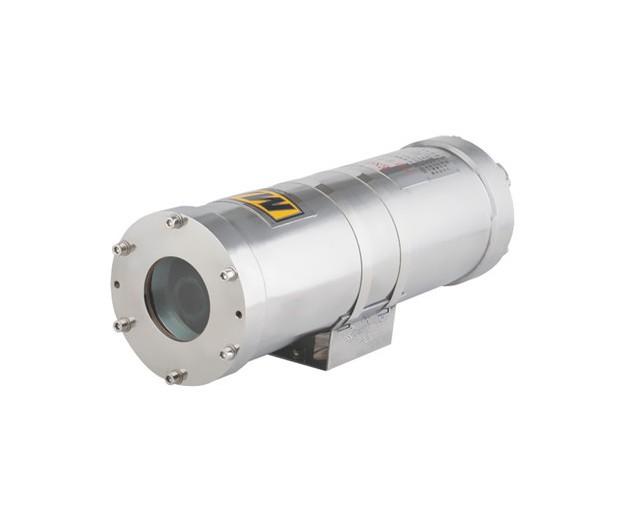

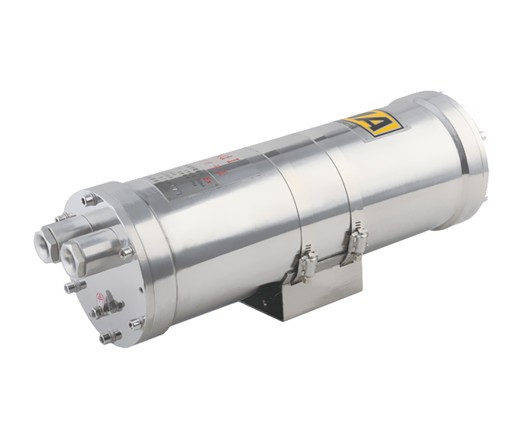

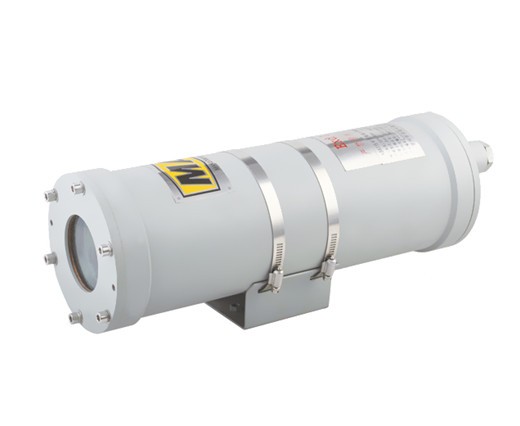

Coal Mining CCTV camera
Model: SHJ-CM115
Product Introduction:
1.SHJ-CM115 is coal mining CCTV camera
2.Housing material: stainless steel 304
3.Overall dimension: 430*155*133mm
4.Weight: 10kg
5.Mounted: Wall, pole
Certificate
Certificate Mark | ExdI |
Certificate No | 21020400 |
MA No | MAK070015 |
Standards | GB3836-2000 Q/320412ZAF004-2009 |
Mechanical
Housing | Stainless steel 304 |
Weight | 10kg |
Cable thread hole | 2 pcs G3/4 or NPT3/4 |
Overall dimension | 430*155*133mm |
Mounted | wall, pole |
Electrical
Voltage | AC127V, 50Hz |
Input supply | 30VA |
Work wave | 1310nm |
Optical singal power | -12~4 DBM |
Transmit distance | 20km |
Optiical singal ouptut | ST connector |
Video output | optical access, AV access |
Ambient
Ambient temperature | 0 to +40℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Analog Camera
Image Sensor | 1/3" interline-transfer CCD |
Effective pixel | PAL 976*582 NTSC 976*494 |
Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
Day&Night | Auto ICR |
Horizontal resolution | 700TVL (color), 720TVL (B&W) |
S/N ratio | ＞50dB（AGC off） |

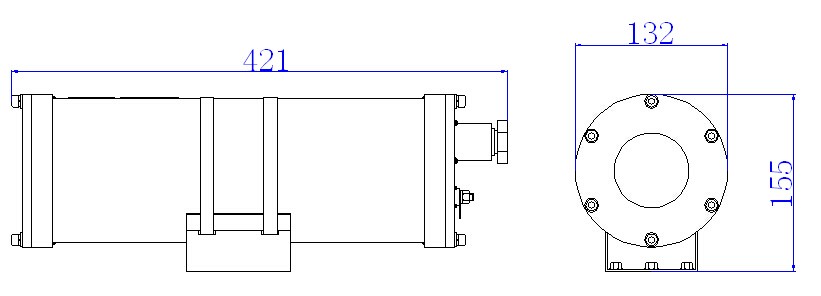

Drawing: (mm)
