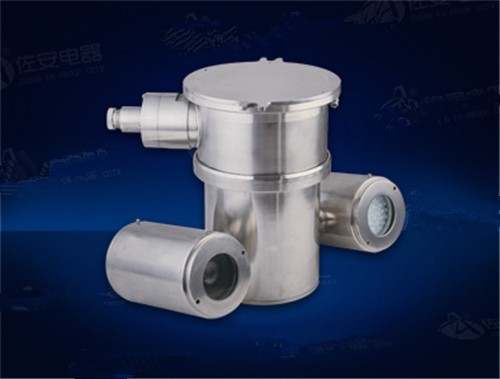

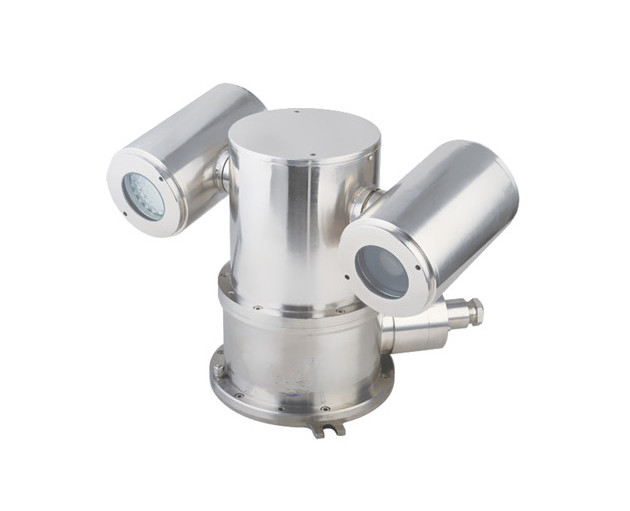

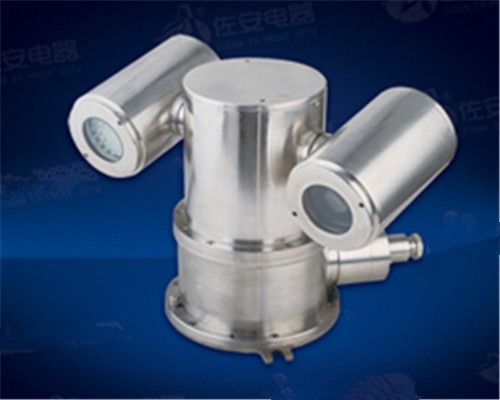

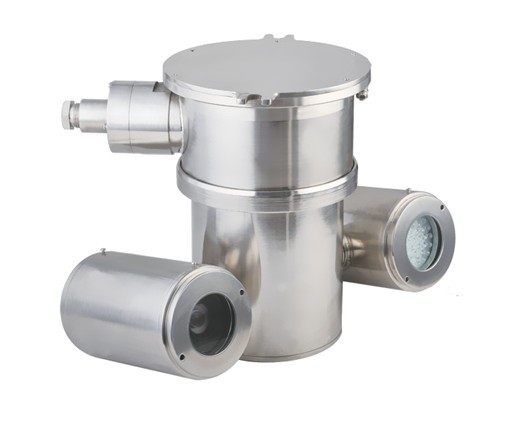

Coal Mining CCTV PTZ Station
Model: SHJ-CM127
Product Introduction:
1.SHJ-CM127 is coal mining CCTV PTZ Station
2.Housing material: stainless steel 304
3.Overall dimension: 375*270*290mm
4.Weight: 20kg
5.Mounted: Wall, pole
Certificate
Certificate Mark | ExdI |
Certificate No | CCCMT12.0171 |
MA No | MAK120052 |
Standards | MT209-90 GB3836-2010 Q/320412ZAF040-2012 |
Mechanical
Housing | Stainless steel 304 |
Weight | 20kg |
Cable thread hole | 1 pcs G3/4 or NPT3/4 |
Overall dimension | 375*270*290mm |
Mounted | wall, pole |
Electrical
Voltage | AC127V, 50Hz |
Input supply | ≦100VA |
Communication signal | RS485, Baud rate:2400 |
Protocol | Pelco-D,or other optional |
Rotation speed | vertical 15±3°/S, horizontal: 15±3°/S, adjustable |
Rotation angle | vertical: 0~180°±10°, horizontal: 0~360 ° continuous |
Cold light | 30m |
Cable | Integrated cable with power, video, control |
Ambient
Ambient temperature | 0 to +40℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Analog Camera
Image Sensor | 1/3" interline-transfer CCD |
Effective pixel | PAL 976*582 NTSC 976*494 |
Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
Day&Night | Auto ICR |
Horizontal resolution | 700TVL (color), 720TVL (B&W) |
S/N ratio | ＞50dB（AGC off） |

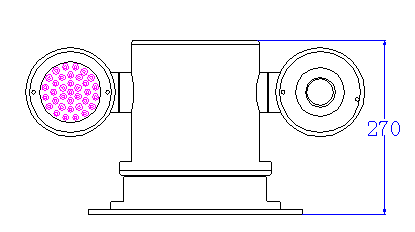

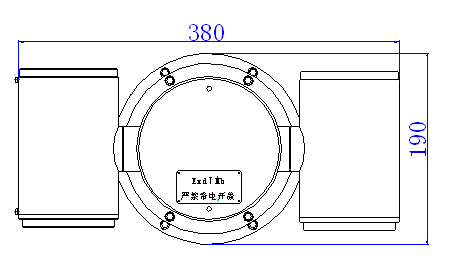

Drawing: (mm)
