Crane Damping CCTV Camera
Model: SHJ-P02
Product Introduction:
SHJ-P02 crane damping CCTV camera is SHJ developed for port surveillance system. It is featured as to get stable video, and will not effect by crane moving or working.
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 2pcs G3/4 or NPT3/4 |
Stable type | oil pressured type |
Impact speed | 5m/s |
Swing angle | ≤2.5° |
Return back time | ≤1.5s |
Electrical
Voltage | AC100-240V, AC24V or POE |
Power | 8W |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Network
Network Interface | 1pcs of RJ45, support 10M/100M/1000M |
Video Compression | H.264 main profile / MJPEG |
Audio Compression | G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726 |
Voice Intercom | Support |
Stream | Support three streams |
Internet Protocol | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos, FTP,SMTP,UPnP,SNMP ,DNS,DDNS,NTP,RTSP,RTP, TCP,UDP,IGMP,ICMP,DHCP,PPPoE |
Time Display | Support |
Standard | ONVIF, CGI, GB/T28181, PISA |
IE browser | Support IE7 or above, Google, Firefox, Apple |
Security | Password protection, Multiple access control |
Camera
Image Sensor | 1/2.8" interline-transfer CCD |
Effective pixel | 1.3MP, 2MP, |
Lens | 4.7-94mm (20X), 4.5-135mm (30X) |
Min. Illumination | Color 0.05Lux B/W: 0.01Lux |
Day&night | Auto/ Color/ BW |
S/N ratio | ＞52dB（AGC off） |
Gain | off/ lower/ higher |
White Balance | Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp |
3D DNR | Support |
BLC | ON/OFF |
Image setting | Mirror, Saturation, Brightness, Contrast, Sharpness adjustable |
Optical zoom | 20X / 30X |
General
Cable | integrated cable |
Size | 504*125*400mm |
Weight | 10kg |
Mount | On crane |

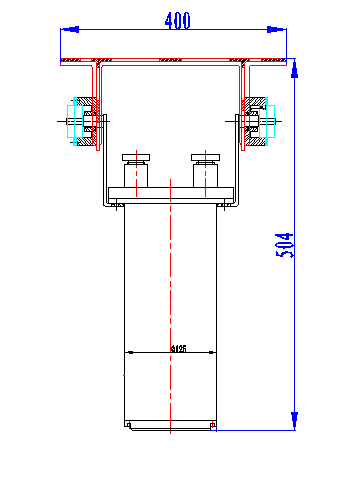

Drawing: (mm)
