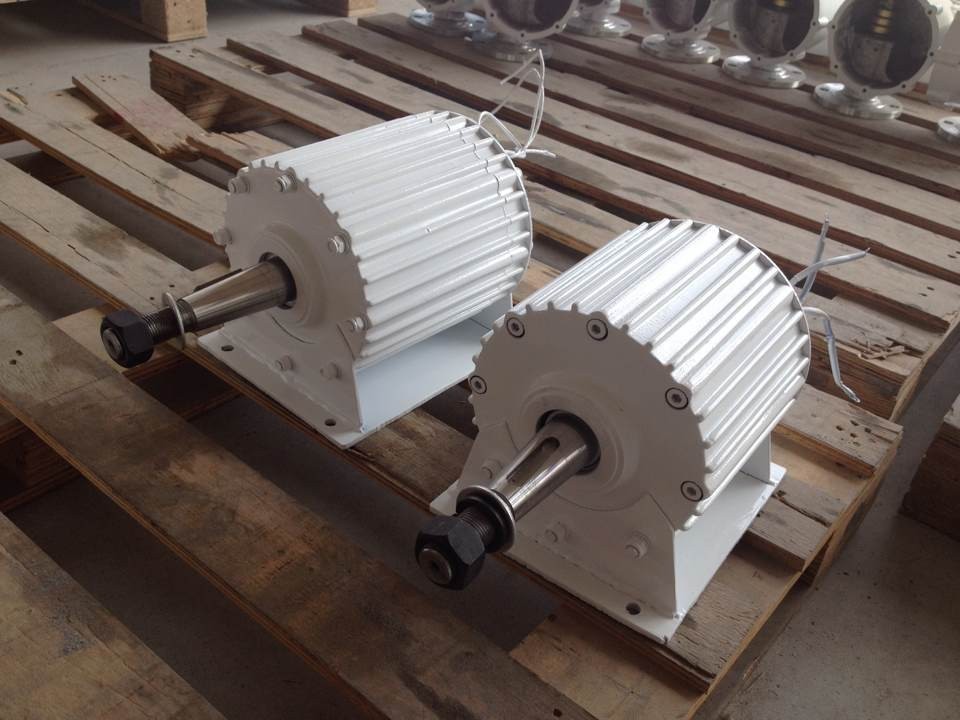

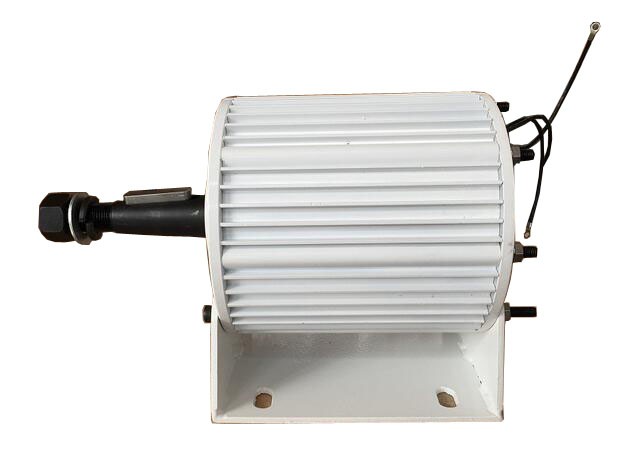

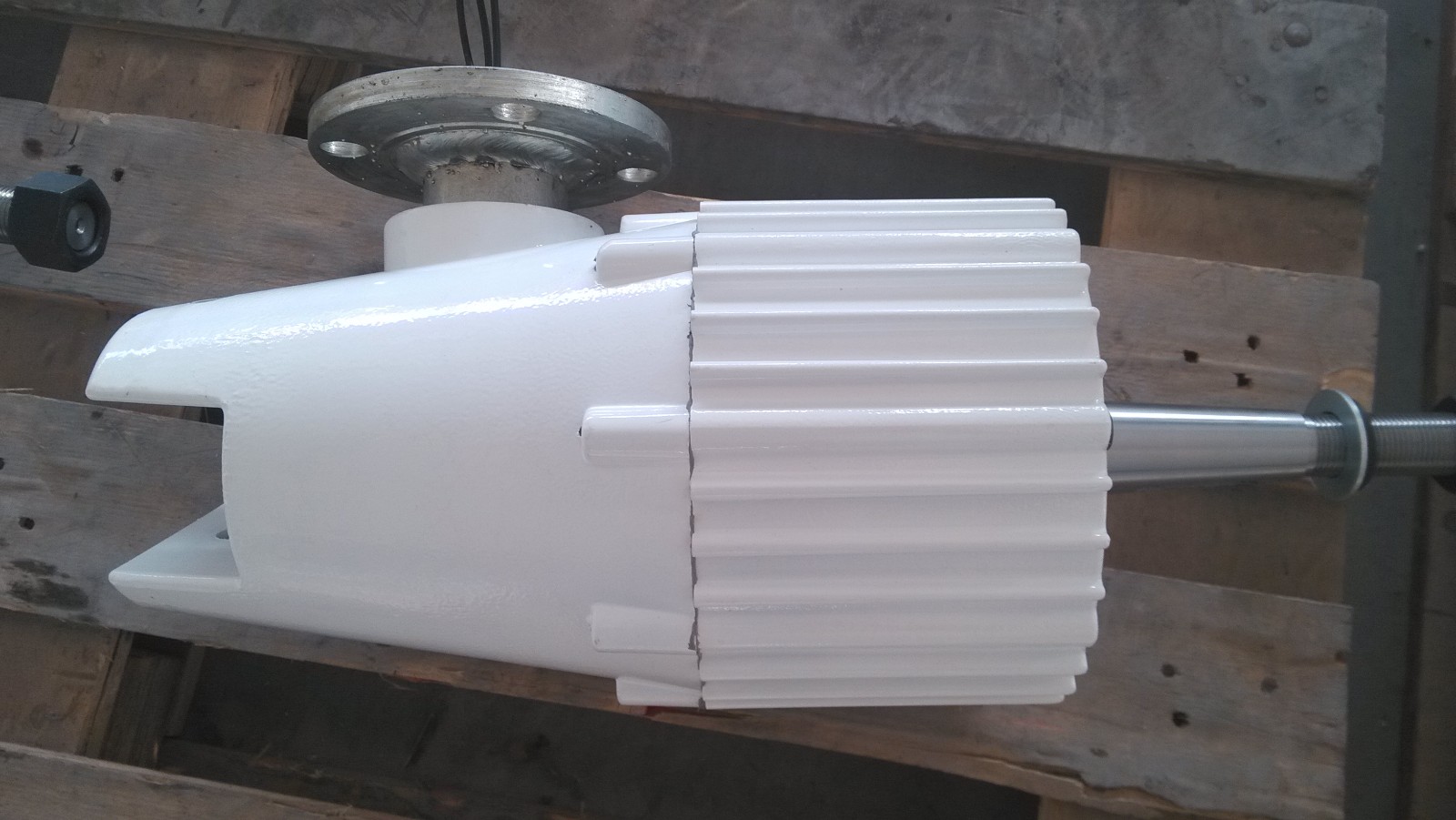

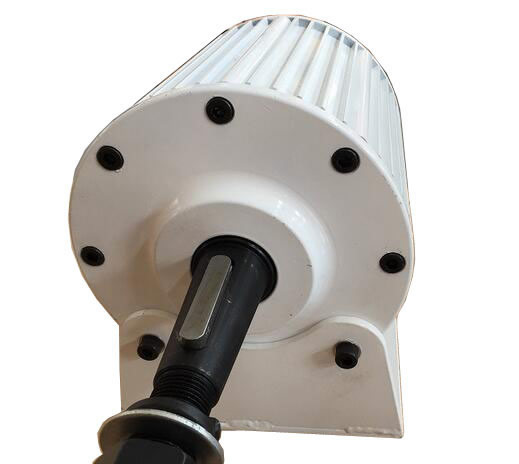

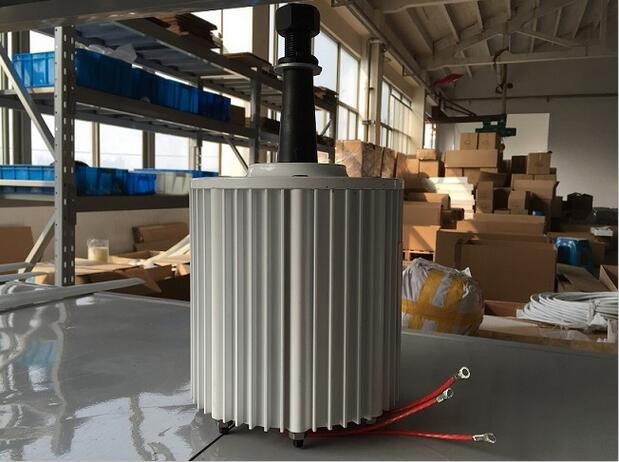

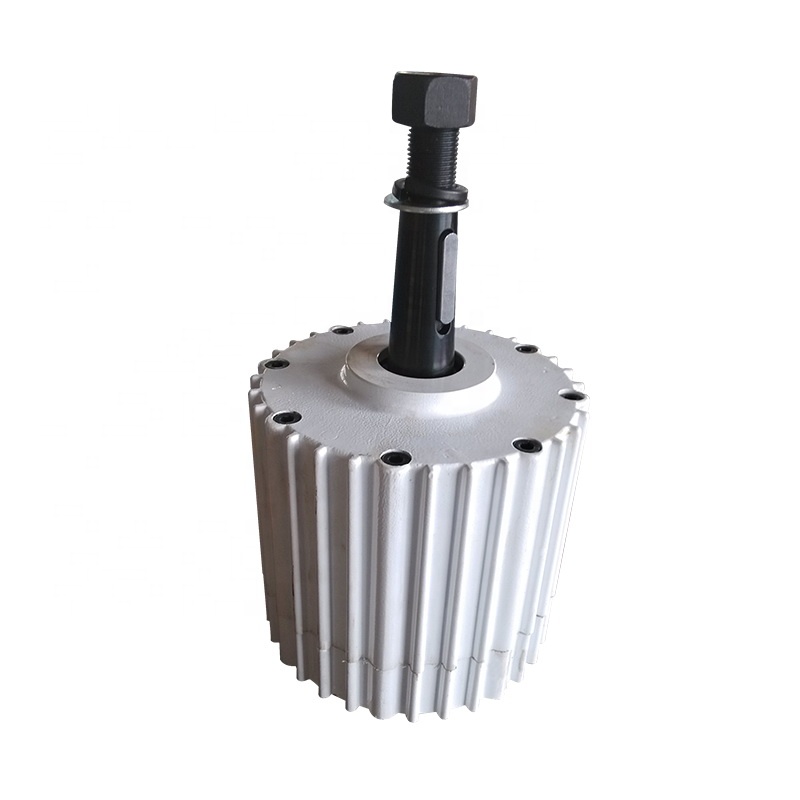

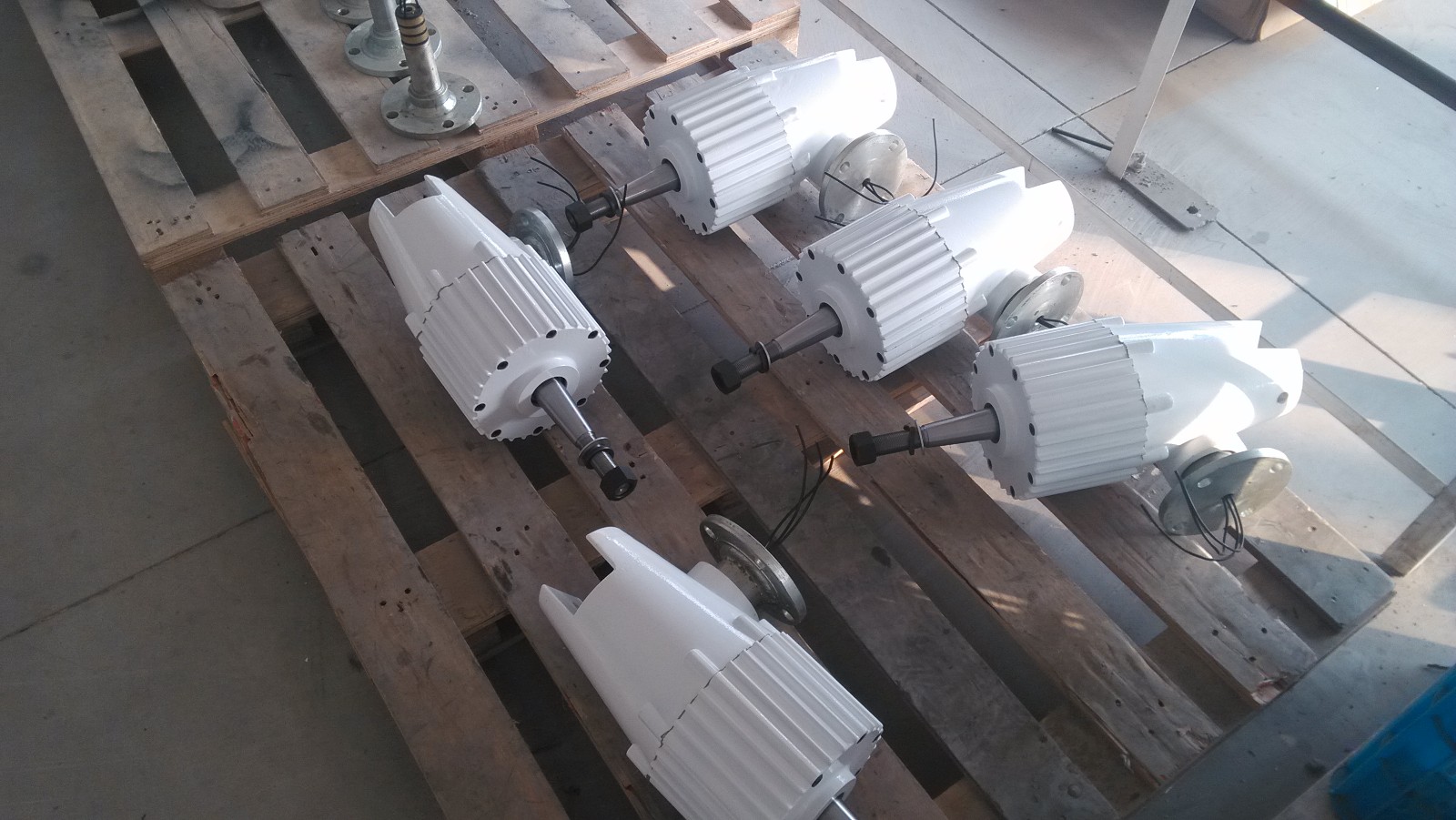

Permanent Magnet Generator 1KW-4KW
Features:
• Low start up speed
• Low torque
• Gear-less, direct drive, low RPM generator.
• For use in all environments
• Excellent heat dissipation
• High quality bearing and magnet, easy to send out quantity of heat and keep magnetic property.
• Designed for 20-years operation life.
Parameter Data:
Model | SHJ-NEG1000 |
Rated Power(w) | 1000w |
Max Power(w) | 1500w |
Rated Voltage（v) | 48v |
Rated rotated speed(r/m) | 500r/m |
Top net weight(kg) | 14.5kg |
Output Current | AC |
Start Torque(N*M)： | 0.62Nm |
Rated Torque(N*M): | 19.1Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG1500 |
Rated Power(w) | 1500w |
Max Power(w) | 1800w |
Rated Voltage（v) | 48v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 16kg |
Output Current | AC |
Start Torque(N*M)： | 0.72Nm |
Rated Torque(N*M): | 23.9Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG2000 |
Rated Power(w) | 2000w |
Max Power(w) | 2500w |
Rated Voltage（v) | 48v/96V |
Rated rotated speed(r/m) | 500r/m |
Top net weight(kg) | 18kg |
Output Current | AC |
Start Torque(N*M)： | 0.78 Nm |
Rated Torque(N*M): | 31.8 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Aluminum alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG3KW |
Rated Power(w) | 3000w |
Max Power(w) | 4800w |
Rated Voltage（v) | 96V/120V |
Rated rotated speed(r/m) | 300r/m |
Top net weight(kg) | 70kg |
Output Current | AC |
Start Torque(N*M)： | 0.96 Nm |
Rated Torque(N*M): | 95.5 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG4KW |
Rated Power(w) | 4000w |
Max Power(w) | 6600w |
Rated Voltage（v) | 96V/120V |
Rated rotated speed(r/m) | 300r/m |
Top net weight(kg) | 80kg |
Output Current | AC |
Start Torque(N*M)： | 1.03Nm |
Rated Torque(N*M): | 99.6 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
