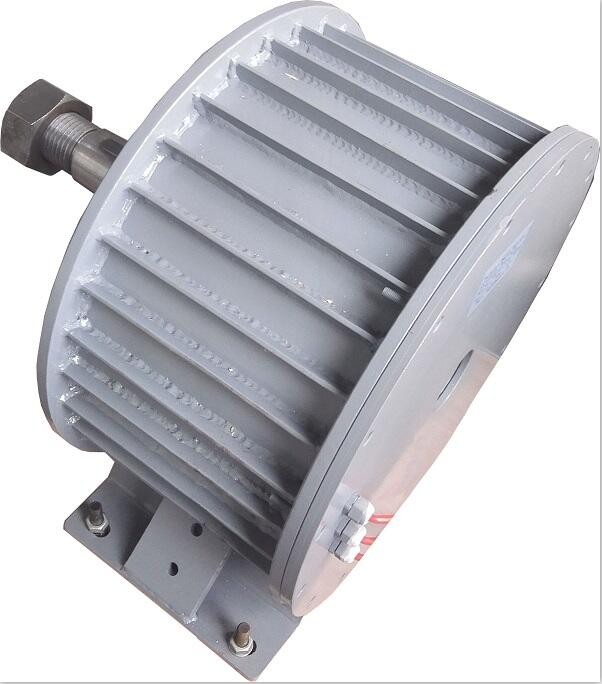

Permanent Magnet Generator 5KW-100KW
Features:
• Low start up speed
• Low torque
• Gear-less, direct drive, low RPM generator.
• For use in all environments
• Excellent heat dissipation
• High quality bearing and magnet, easy to send out quantity of heat and keep magnetic property.
• Designed for 20-years operation life.
Parameter Data:
Model | SHJ-NEG5KW |
Rated Power(w) | 5000w |
Max Power(w) | 7000w |
Rated Voltage（v) | 96V/120V/220V |
Rated rotated speed(r/m) | 300r/m |
Top net weight(kg) | 80kg |
Output Current | AC |
Start Torque(N*M)： | 1.1Nm |
Rated Torque(N*M): | 159.2 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG10KW |
Rated Power(w) | 10kw |
Max Power(w) | 13kw |
Rated Voltage（v) | 96V/120V/220V |
Rated rotated speed(r/m) | 170r/m |
Top net weight(kg) | 180kg |
Output Current | AC |
Start Torque(N*M)： | 1.28 Nm |
Rated Torque(N*M): | 561.7 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG15KW |
Rated Power(w) | 15kw |
Max Power(w) | 17kw |
Rated Voltage（v) | 400V |
Rated rotated speed(r/m) | 170r/m |
Top net weight(kg) | 200kg |
Output Current | AC |
Start Torque(N*M)： | 1.58 Nm |
Rated Torque(N*M): | 950.7 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG20KW |
Rated Power(w) | 20kw |
Max Power(w) | 25kw |
Rated Voltage（v) | 220V/380V/420V |
Rated rotated speed(r/m) | 170r/m |
Top net weight(kg) | 320kg |
Output Current | AC |
Rated Torque(N*M): | 1123.5 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG30KW |
Rated Power(w) | 30kw |
Max Power(w) | 38kw |
Rated Voltage（v) | 220V/380V/420V |
Rated rotated speed(r/m) | 200r/m |
Top net weight(kg) | 380kg |
Output Current | AC |
Rated Torque(N*M): | 1685.3 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG50KW |
Rated Power(w) | 50kw |
Max Power(w) | 56kw |
Rated Voltage（v) | 380V/420V |
Rated rotated speed(r/m) | 170r/m or customized |
Top net weight(kg) | 520 kg |
Output Current | AC |
Rated Torque(N*M): | 2808.8 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG50KWL(Low Speed) |
Rated Power(w) | 50kw |
Max Power(w) | 60kw |
Rated Voltage（v) | 380V/420V |
Rated rotated speed(r/m) | 78 r/m or customized |
Top net weight(kg) | 1000kg |
Output Current | AC |
Rated Torque(N*M): | 6121.8 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | SHJ-NEG60KW |
Rated Power(w) | 60kw |
Max Power(w) | 72kw |
Rated Voltage（v) | 380V/420V |
Rated rotated speed(r/m) | 78 r/m or customized |
Top net weight(kg) | 1200kg |
Output Current | AC |
Rated Torque(N*M): | 7346.2 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Model | 100kw-60rpm |
Rated Power(w) | 100kw |
Max Power(w) | 130kw |
Rated Voltage（v) | 380V or as your request |
Rated rotated speed(r/m) | 60r/m |
Top net weight(kg) | 1500kg |
Output Current | AC |
Rated Torque(N*M): | 15916.6Nm |
height | 850mm |
diameter | 1025mm |
generator | Y Connection, 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Model | 100kw-100rpm |
Rated Power(w) | 100kw |
Max Power(w) | 120kw |
Rated Voltage（v) | 380V or as your request |
Rated rotated speed(r/m) | 100r/m |
Output Current | AC |
Rated Torque(N*M): | 9550Nm |
generator | Y Connection, 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Model | 100kw-750rpm |
Rated Power(w) | 100kw |
Max Power(w) | 120kw |
Rated Voltage（v) | 380V or as your request |
Rated rotated speed(r/m) | 750r/m |
Top net weight(kg) | 830kg |
Output Current | AC |
Rated Torque(N*M): | 1273.3Nm |
height | 650mm |
diameter | 490mm |
generator | Y Connection, 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
