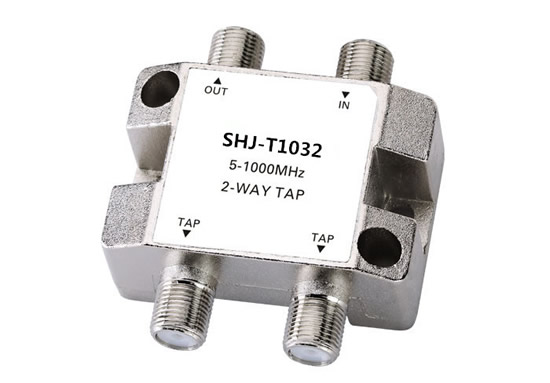

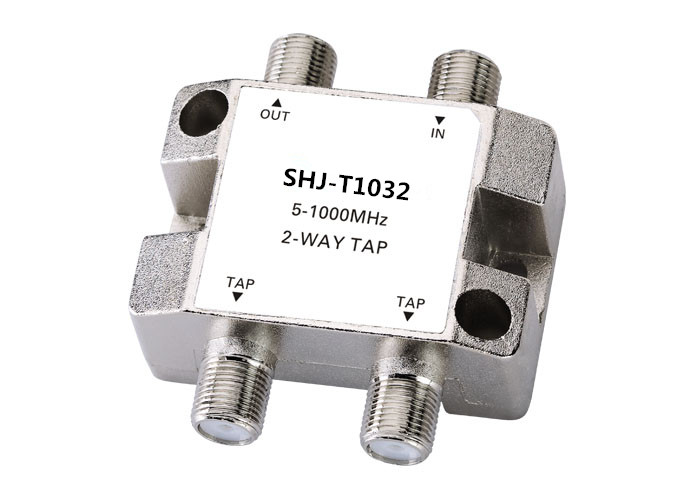

5-1000MHZ 2-Way Indoor CATV Tap
Model: SHJ-T1032
Features:
lZinc die-cast housing, nickel-plated
lScreening factor: 5-1000MHz≥100dB
lEasy installation, capable of passing cable thru housing bottom
lLow insertion loss,high return loss and isolation
lMicro-strip circuit design and perfect performance index
lAll ports F-(f)connector,75 Ohm
Parameter description:
Item | Frequency Range | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 |
Insertion Loss | 5-40(MHz) | 3.5 | 2.5 | 1.5 | 1.5 | 1.0 | 1.0 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
40-470(MHz) | 3.8 | 2.8 | 1.8 | 1.8 | 1.2 | 1.2 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
470-860(MHz) | 3.8 | 2.8 | 2.0 | 2.0 | 1.2 | 1.2 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
860-1000(MHz) | 4.2 | 3.2 | 2.2 | 2.2 | 1.5 | 1.5 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
Tap Loss Tolerance | 5-40(MHz) | ±1.0 | ||||||||||
40-470(MHz) | ±1.0 | |||||||||||
470-860(MHz) | ±1.0 | |||||||||||
860-1000(MHz) | ±1.5 | |||||||||||
Mutual Isolation | 5-40(MHz) | 28 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
40-470(MHz) | 28 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
470-860(MHz) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
860-1000(MHz) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
Reverse Isolation | 5-40(MHz) | 33 | 28 | 30 | 30 | 35 | 35 | 40 | 40 | 40 | 40 | 42 |
40-470(MHz) | 30 | 28 | 30 | 30 | 35 | 35 | 35 | 35 | 35 | 38 | 38 | |
470-860(MHz) | 30 | 26 | 28 | 28 | 33 | 33 | 35 | 35 | 35 | 38 | 38 | |
860-1000(MHz) | 28 | 23 | 25 | 25 | 25 | 26 | 30 | 30 | 30 | 35 | 35 | |
Return Loss | 5-40(MHz) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
40-470(MHz) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
470-860(MHz) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
860-1000(MHz) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
