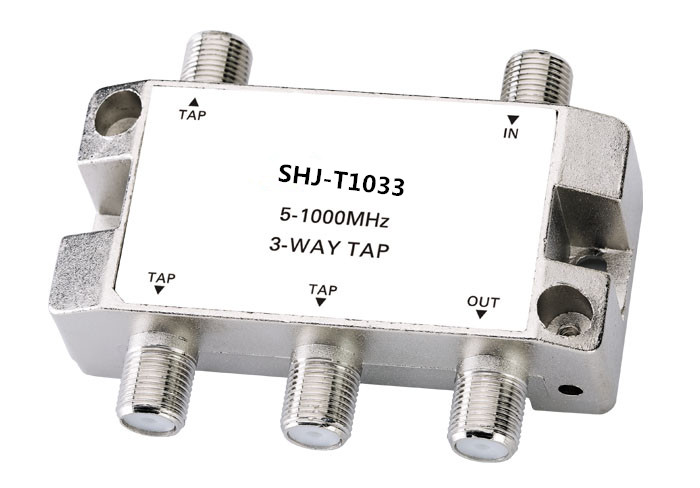

5-1000MHZ 3-Way Indoor CATV Tap
Model: SHJ-T1033
Features:
lZinc die-cast housing, nickel-plated
lScreening factor: 5-1000MHz≥100dB
lEasy installation, capable of passing cable thru housing bottom
lLow insertion loss,high return loss and isolation
lMicro-strip circuit design and perfect performance index
lAll ports F-(f)connector,75 Ohm
Parameter description:
Item | Frequency Range | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 |
Insertion Loss | 5-40(MHz) | 3.5 | 3.0 | 2.5 | 2.0 | 2.0 | 1.2 | 1.2 | 1.0 | 1.0 | 1.0 |
40-470(MHz) | 3.5 | 3.5 | 2.5 | 2.0 | 2.0 | 1.2 | 1.2 | 1.0 | 1.0 | 1.0 | |
470-860(MHz) | 3.8 | 3.5 | 2.8 | 2.2 | 2.2 | 1.5 | 1.5 | 1.2 | 1.2 | 1.2 | |
860-1000(MHz) | 4.5 | 4.0 | 3.0 | 2.5 | 2.2 | 1.5 | 1.5 | 1.2 | 1.2 | 1.2 | |
Tap Loss Tolerance | 5-40(MHz) | ±1.0 | |||||||||
40-470(MHz) | ±1.0 | ||||||||||
470-860(MHz) | ±1.5 | ||||||||||
860-1000(MHz) | ±2 | ||||||||||
Mutual Isolation | 5-40(MHz) | 28 | 25 | 26 | 26 | 26 | 27 | 27 | 27 | 27 | 27 |
40-470(MHz) | 28 | 25 | 26 | 26 | 26 | 27 | 27 | 27 | 27 | 27 | |
470-860(MHz) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
860-1000(MHz) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
Reverse Isolation | 5-40(MHz) | 28 | 27 | 27 | 32 | 35 | 32 | 35 | 40 | 38 | 40 |
40-470(MHz) | 30 | 27 | 27 | 32 | 35 | 32 | 32 | 40 | 38 | 40 | |
470-860(MHz) | 25 | 25 | 28 | 30 | 32 | 30 | 32 | 35 | 35 | 38 | |
860-1000(MHz) | 25 | 23 | 25 | 30 | 32 | 30 | 30 | 35 | 32 | 35 | |
Return Loss | 5-40(MHz) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
40-470(MHz) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
470-860(MHz) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
860-1000(MHz) | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | |
