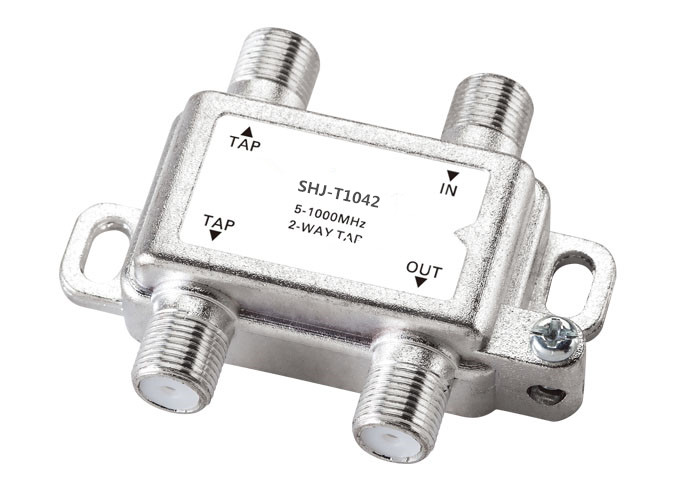

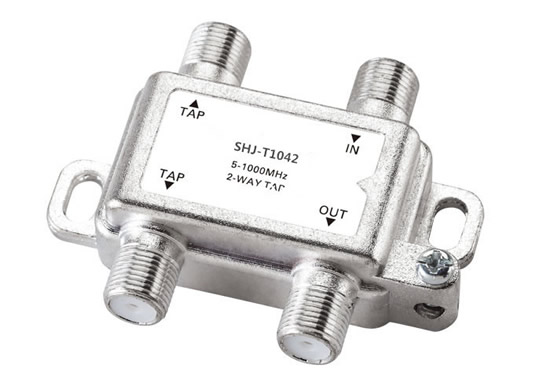

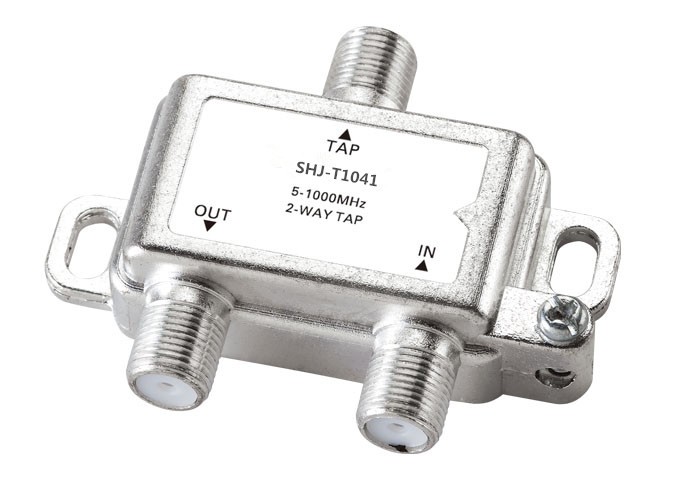

5-1000MHZ 2-Way Indoor CATV Tap(SHJ-T1042)

5-1000MHZ 2-Way Indoor CATV TapModel: SHJ-T1042Features:lZinc die-cast housing, nickel-platedlScreening factor: 5-1000MHz100dBlEasy installation, capable of passing cable thru housing bottomlLow inser
Availability:
  • Speed

5-1000MHZ 2-Way Indoor CATV Tap(SHJ-T1042)


5-1000MHZ 2-Way Indoor CATV Tap

Model: SHJ-T1042



Features:

lZinc die-cast housing, nickel-plated

lScreening factor: 5-1000MHz100dB

lEasy installation, capable of passing cable thru housing bottom

lLow insertion loss,high return loss and isolation

lMicro-strip circuit design and perfect performance index

lAll ports F-(f)connector,75 Ohm

Parameter description:

Item

Frequency Range

8

10

12

14

16

18

20

22

24

27

30

Insertion Loss
(dB)

5-40(MHz)

3.5

2.5

1.5

1.5

1.0

1.0

0.8

0.8

0.8

0.8

0.8

40-470(MHz)

3.8

2.8

1.8

1.8

1.2

1.2

1.0

1.0

1.0

1.0

1.0

470-860(MHz)

3.8

2.8

2.0

2.0

1.2

1.2

1.0

1.0

1.0

1.0

1.0

860-1000(MHz)

4.2

3.2

2.2

2.2

1.5

1.5

1.0

1.0

1.0

1.0

1.0

Tap Loss Tolerance
(dB)

5-40(MHz)

±1.0

40-470(MHz)

±1.0

470-860(MHz)

±1.0

860-1000(MHz)

±1.5

Mutual Isolation
(dB)

5-40(MHz)

28

30

30

30

30

30

30

30

30

30

30

40-470(MHz)

28

30

30

30

30

30

30

30

30

30

30

470-860(MHz)

25

25

25

25

25

25

25

25

25

25

25

860-1000(MHz)

25

25

25

25

25

25

25

25

25

25

25

Reverse Isolation
(dB)

5-40(MHz)

33

28

30

30

35

35

40

40

40

40

42

40-470(MHz)

30

28

30

30

35

35

35

35

35

38

38

470-860(MHz)

30

26

28

28

33

33

35

35

35

38

38

860-1000(MHz)

28

23

25

25

25

26

30

30

30

35

35

Return Loss
(dB)

5-40(MHz)

20

20

20

20

20

20

20

20

20

20

20

40-470(MHz)

20

20

20

20

20

20

20

20

20

20

20

470-860(MHz)

18

18

18

18

18

18

18

18

18

18

18

860-1000(MHz)

18

18

18

18

18

18

18

18

18

18

18
