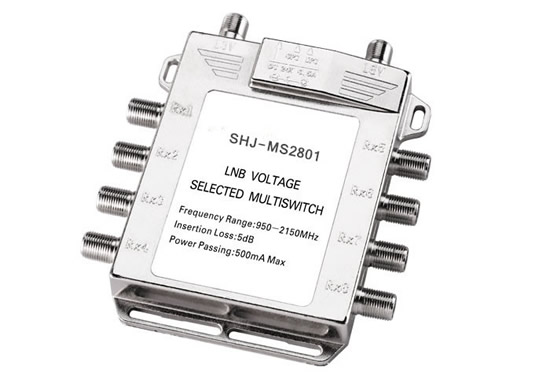

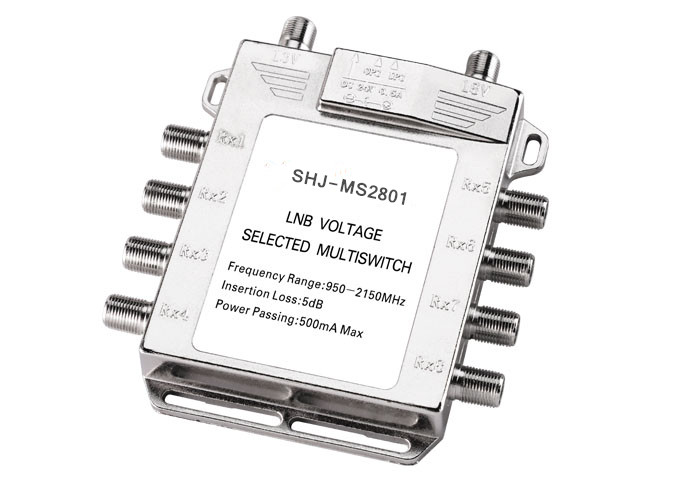

950-2150MHZ 2 in 8 Satellite TV Multi-switch
Model: SHJ-MS2801
Features:
lZinc die-cast housing, nickel-plated
lExcellent quality component, professional circuit design and low loss
l13/18V supplied by satellite receiver through coaxial cable to switch
corresponding port
lCapable of connecting two SATV signals simultaneously, which is
switched through 13/18V
lDistributed into two subscribers to use simultaneously and no mutual
interference
lApplicable to multi-satellite and multi-receiver usage
Parameter description:
Specifications
Item | Specification | Item | Specification |
Frequency Range | 950-2150(MHz) | Normal Working Voltage | 12-20(V) |
Insertion Loss | 5(dB) | DC Power Consumption | 30(mA) |
Isolation | 25(dB) | DC Max Power Passing | 500(mA) |
Return Loss | 10(dB) | Impedance(all ports) | 75(Ω) |
