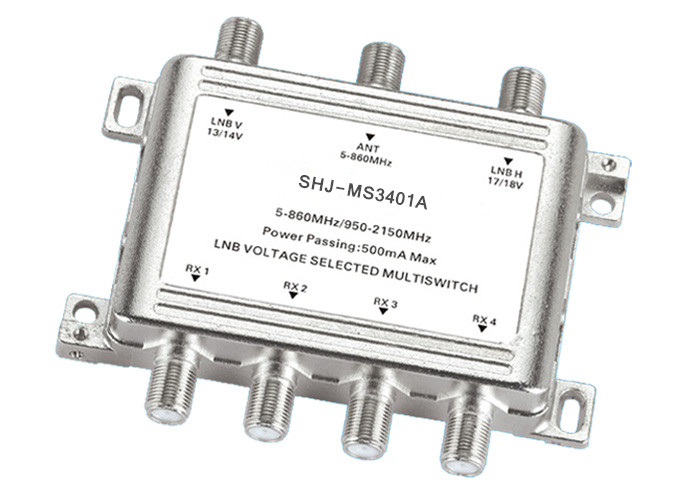

Brazil Type 3 in 4 Multiswitch
Model: SHJ-MS3401A
Features:
lZinc die-cast housing, nickel-plated
lExcellent quality component, professional circuit design and low loss
l13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
lCapable of connecting two SATV signals, one ANT signal or FM broadcast simultaneously
lTwo SATV signals switched through 13/18V
lDistributed into four subscribers to use simultaneously and no mutual interference
lApplicable to multi-satellite and multi-receiver usage
Parameter description:
Specifications
Item | Specification | Item | Specification |
Frequency Range ANT | 5-860 (MHz) | Return Loss ANT Input | 12(dB) |
Frequency Range SAT | 950-2150 (MHz) | Return Loss Outputs | 8(dB) |
Insertion Loss ANT | 5(dB) | Output Level ANT | 85(dBuV) |
Insertion Loss SAT | 5(dB) | Output Level SAT | 95(dBuV ) |
Isolation In-In SAT | 25(dB) | Normal Working Voltage | 12-20 (V) |
Isolation In-In SAT/ANT | 25(dB) | DC Power Consumption | 60(mA) |
Isolation Between Outputs | 25(dB) | DC Max Power Passing | 500(mA) |
Isolation H/V | 28(dB) | Impedance(all ports) | 75(Ω ) |
Return Loss SAT Inputs | 10(dB) |
