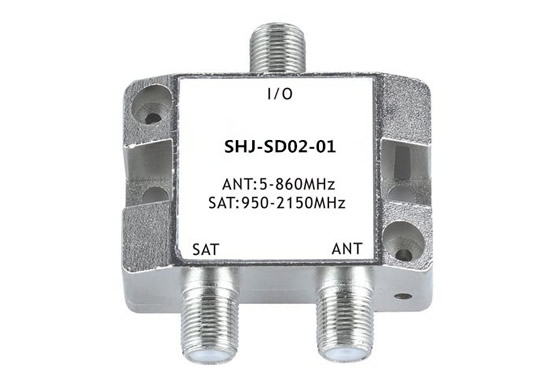

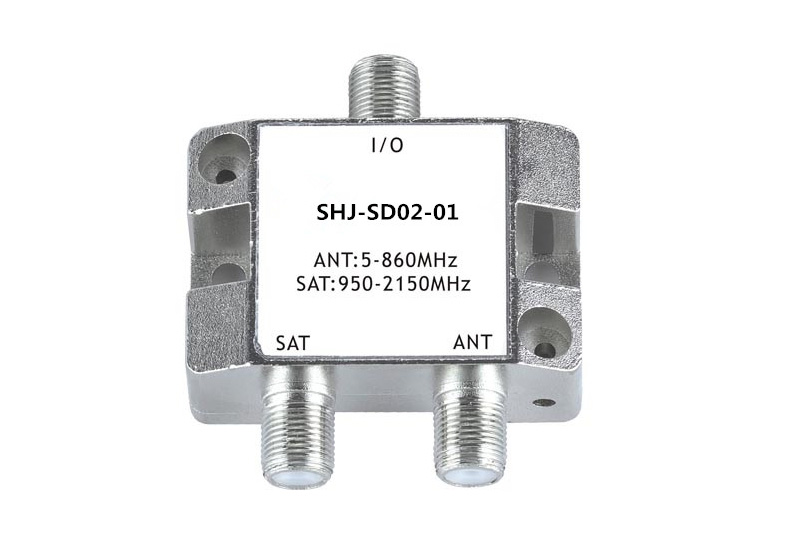

SAT/ANT Diplexer
MODEL: SHJ-SD02-01
Features:
● Zinc die-cast housing, tin-plated
● Light weight and compact size
● Frequency range:5-2150MHz
● F-female connector 75Ohm
● DC power passing : 24V DC 500mA(MAX)
Parameter description:
Item | Frequency Range(MHz) | Insertion Loss(dB) | Return Loss(dB) |
IN-ANT | 5-862 | ≤20.0 | ≥10.0 |
950-2150 | ≥20.0 | ||
IN-SAT | 5-862 | ≥20.0 | |
950-2150 | ≤3.0 |
