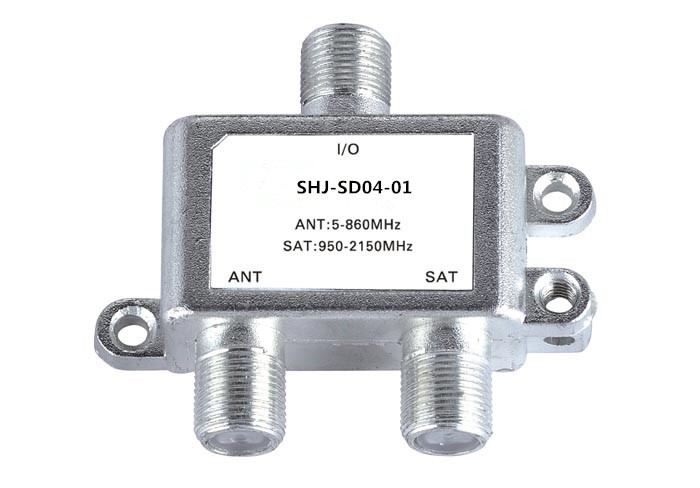

MODEL: SHJ-SD04-01
Features:
lZinc die-cast housing, tin-plated
lLight weight and compact size
lFrequency range:5-2150MHz
lF-female connector 75Ohm
lDC power passing : 24V DC 500mA(MAX)
Parameter description:
Item | Frequency Range(MHz) | Insertion Loss(dB) | Return Loss(dB) |
IN-ANT | 5-862 | ≤20.0 | ≥10.0 |
950-2150 | ≥20.0 | ||
IN-SAT | 5-862 | ≥20.0 | |
950-2150 | ≤3.0 |
