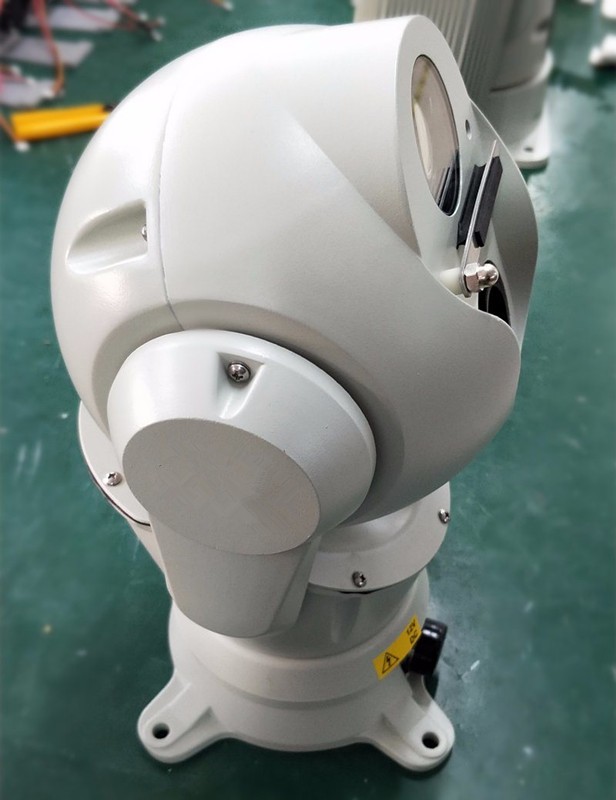

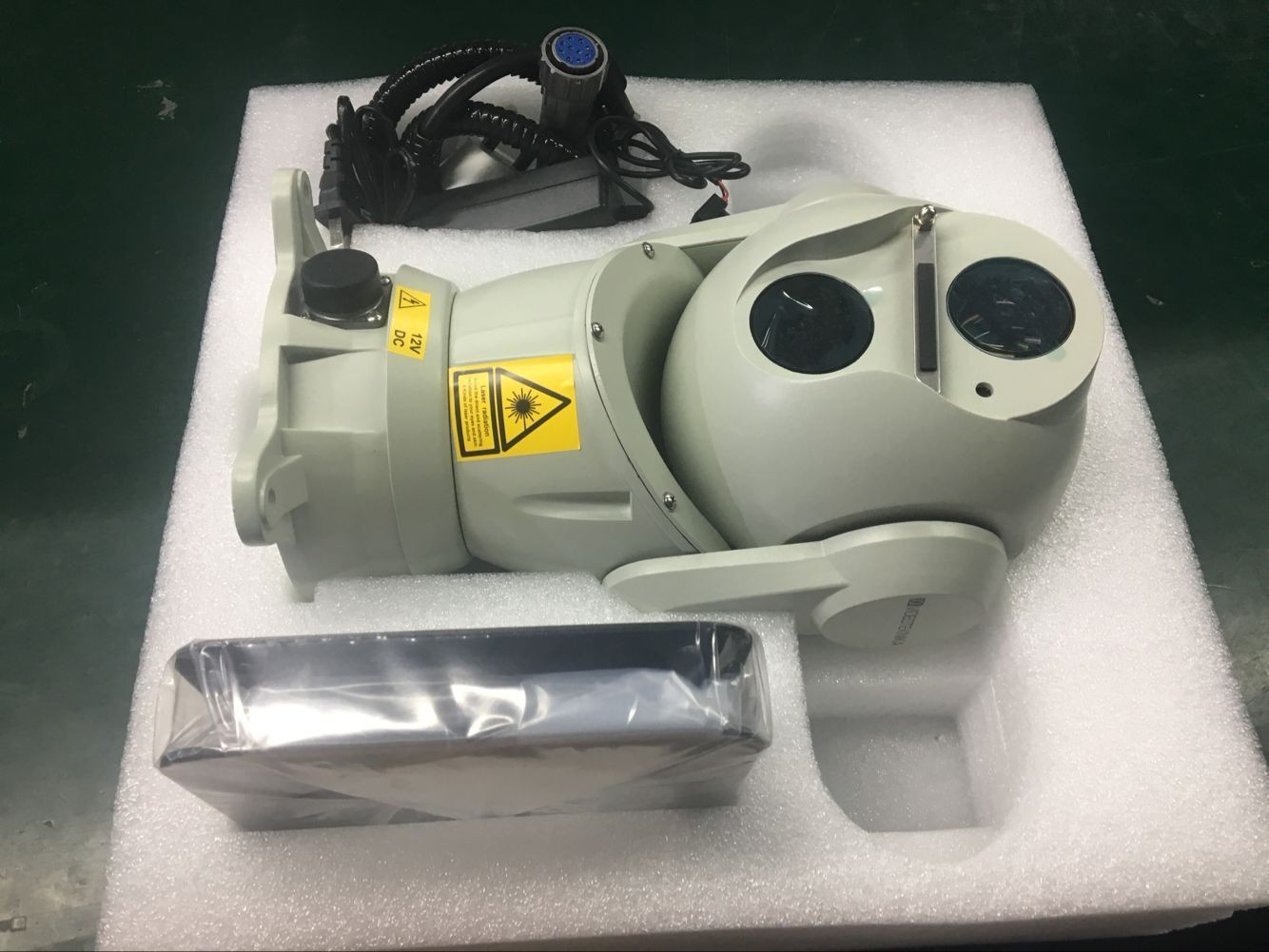

80m Night VisionWhite Light PTZ camera
Product Name:White Light PTZ camera
Model: SHJ-ST-A-WH
SHJ-ST-HD-WH
SHJ-ST-SDI-WH
SHJ-ST-AHD(CVI/TVI)-WH
Features：
lIndependent defogging and defrosting module, which truly solves the fogging of camera lens caused by temperature difference in outdoor environment
lThe camera compartment uses high-quality heating parts to make the entire warehouse body work together to form an effective anti-fog and defogging pattern.
lAdopting the integrated structure of the upper and lower spindles, the PTZ camera bin and infrared bin will not be bumped and misplaced.
lSSTndard volSTge regulator module filters the insSTnSTneous unsSTble current of the vehicle to keep the gimbal sSTble
lPTZ high-speed roSTtion is smoother, low-speed roSTtion without jitter
lHigh-strength aluminum alloy design, protection grade IP66
lPTZ full range of dead angle monitoring
White light:PTZ adopts white light, multi-angle work together, the working life up to 30,000 hours, night vision is 80 meters
HD IP: PTZ support mainstream megapixeldigiSTl high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD：PTZ support megapixel HD movement, HD-SDI digiSTl interface output, megapixel digiSTl high-definition image lossless, real-time transmission, no delay, a variety of resolution adjusSTble (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD：PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission

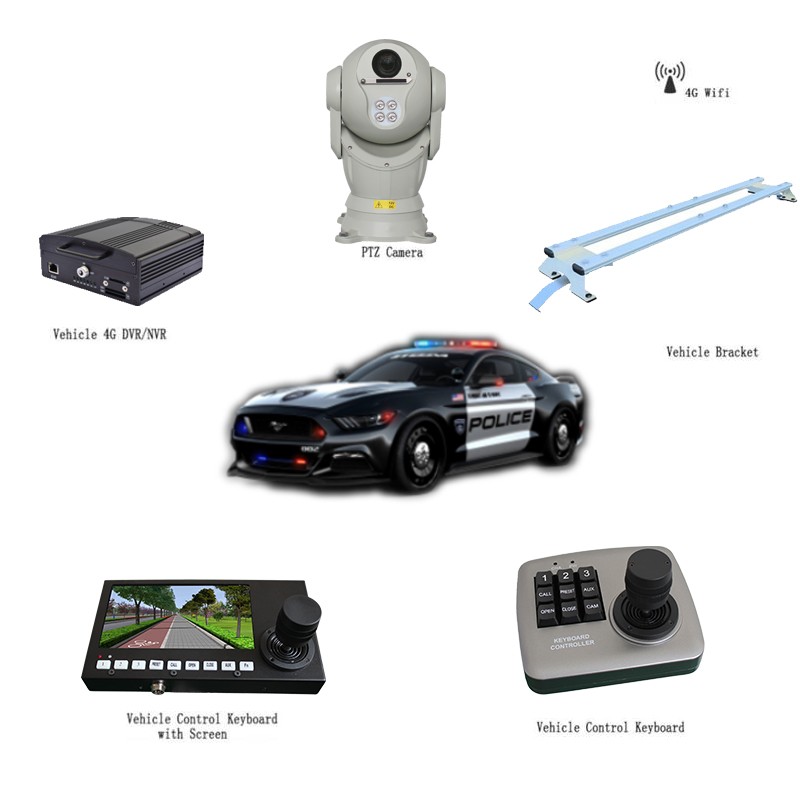

Application:110 police mobile law enforcement / fire emergency command / 120 emergency command system / road mobile patrol / urban management law enforcement / special vehicle mobile inspection
PTZ Function | |
Pan preset speed | 150°/s |
Tilt preset speed | 120°/s |
Pan control speed | 0°~100°/S |
Tilt control speed | 0°~90°/S |
Pan range | 360°endless rotation |
Tilt range | +90° ~ -60° |
Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
Relative Humidity | Less than 90% |
IP Grade | IP66 |
Working Temperature | -35° ~ +55° |
Impact resisSTnce requirements | ≥4G |

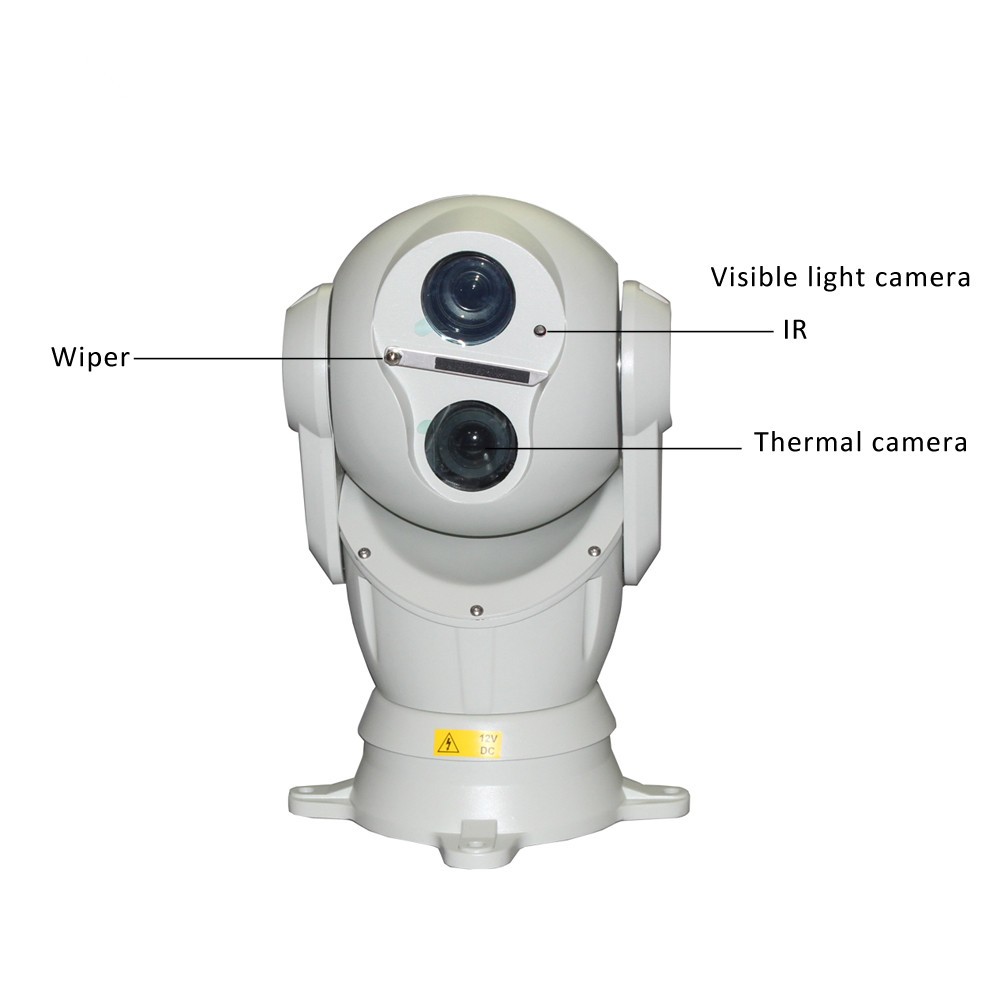

Wiper | Support |
InsSTllation | Variety of insSTllation according to the environment |
Weight | 6kg |
Network parameters： | |
Video Compression | H.264/H.265 |
Audio Compression | G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM |
Compression output rate | 32Kbps—12Mbps |
Support Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP optional) |
Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
Storage Function | Support MicroSD storage |
Intelligent Arlarm | Motion detection, mask alarm, full memory, memory misSTke |

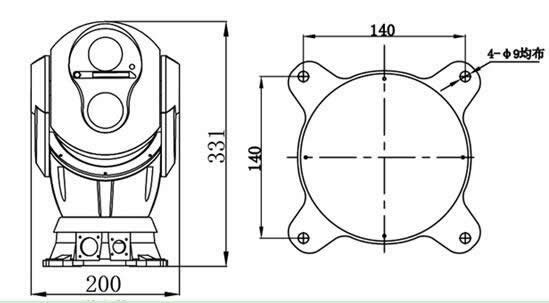

Measures and Diagram：(mm)
